Lecture 11 - Virtual Memory¶

Demand Paging¶

Demand paging brings a page into memory only when it is demanded

demand means access (read/write)
if page is invalid (error) ➠ abort the operation [segmentation fault]
if page is valid but not in memory ➠ bring it to memory

Memory here means physical memory

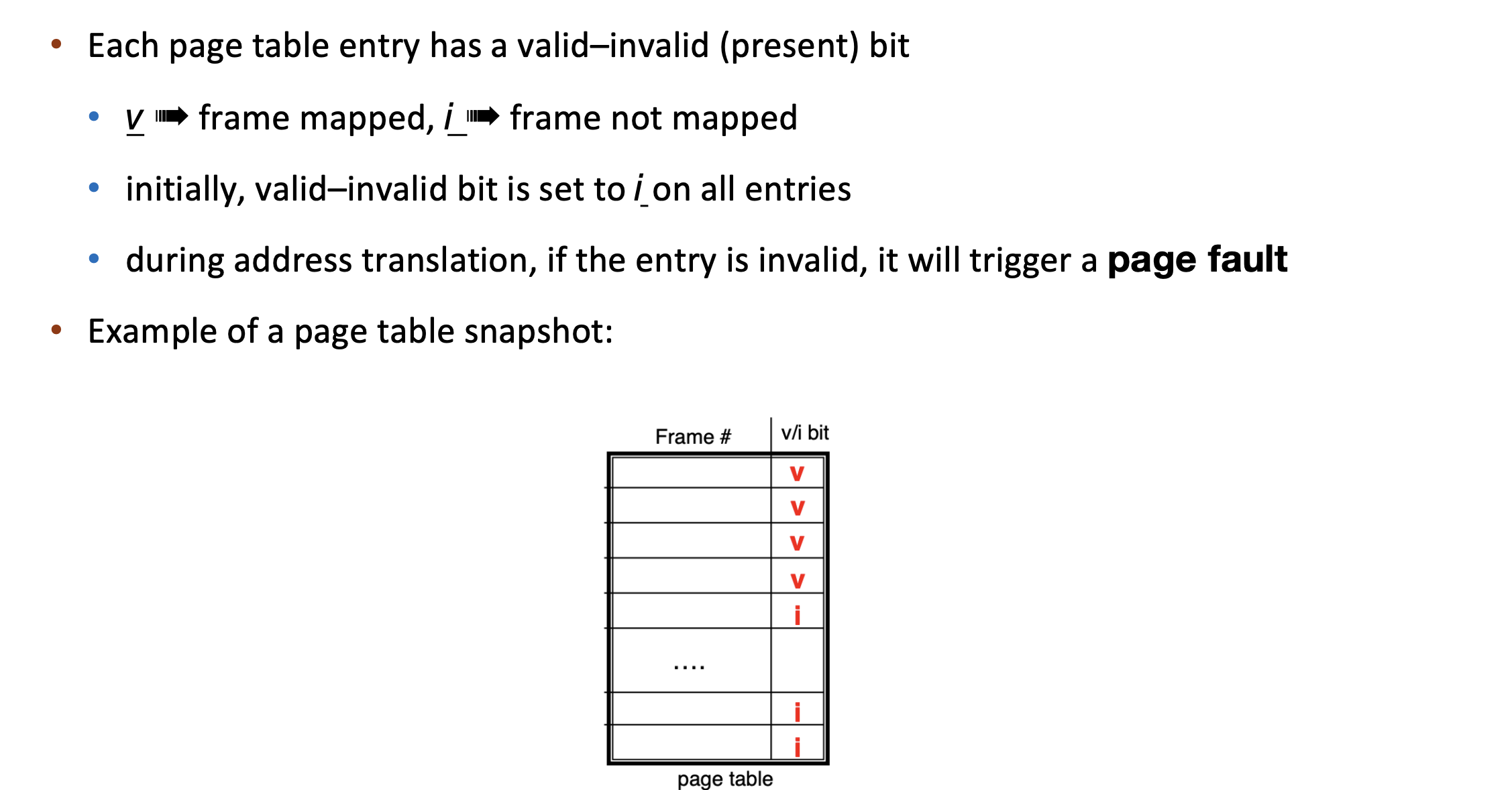

This is called page fault
via swapping for swapped pages
via mapping for new page
no unnecessary I/O, less memory needed, slower response, more apps

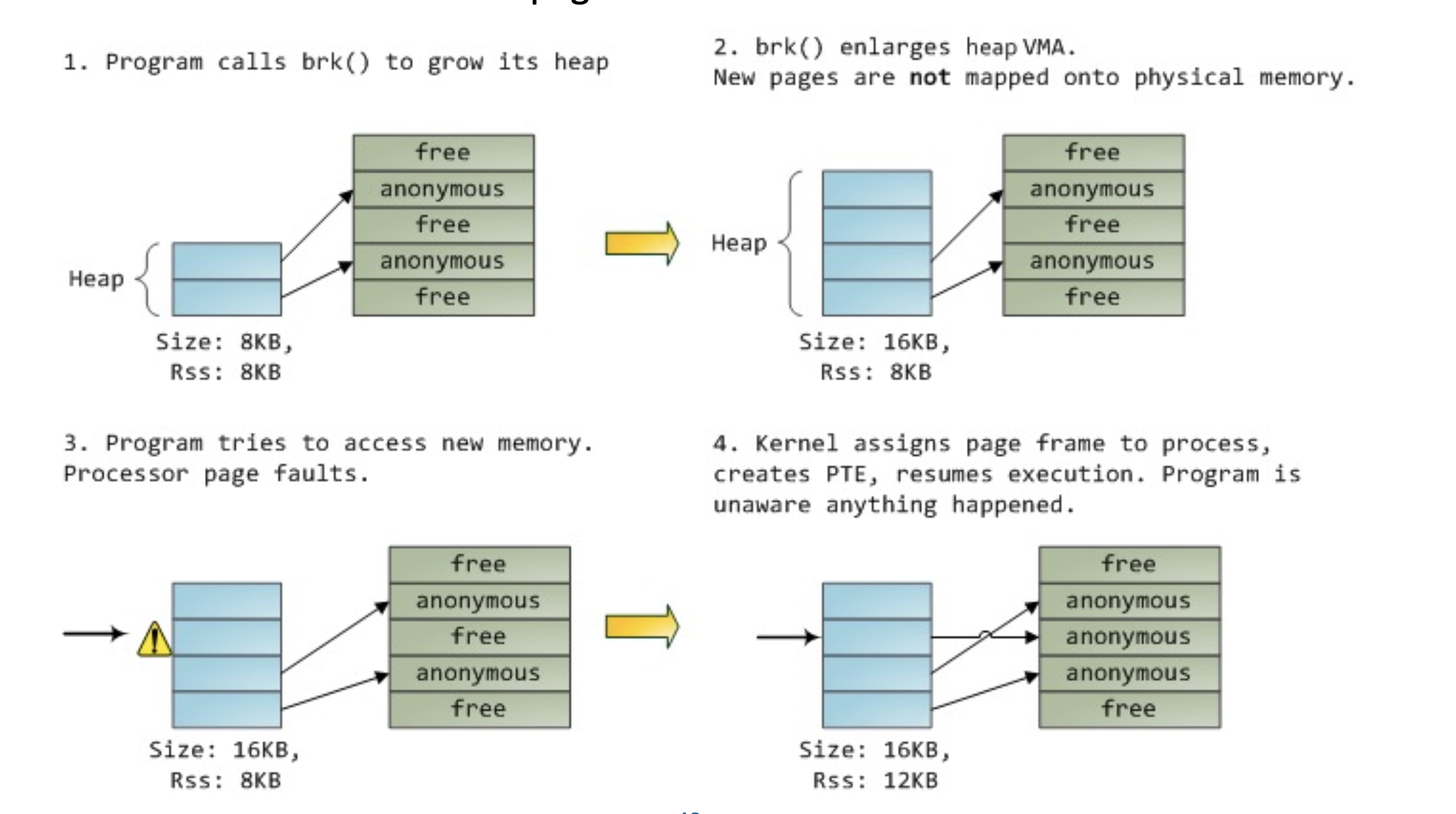

What causes page fault? -- User space program accesses an address

Kernel 会直接分配，不回lazy allocation

Which hardware issues page fault? -- MMU

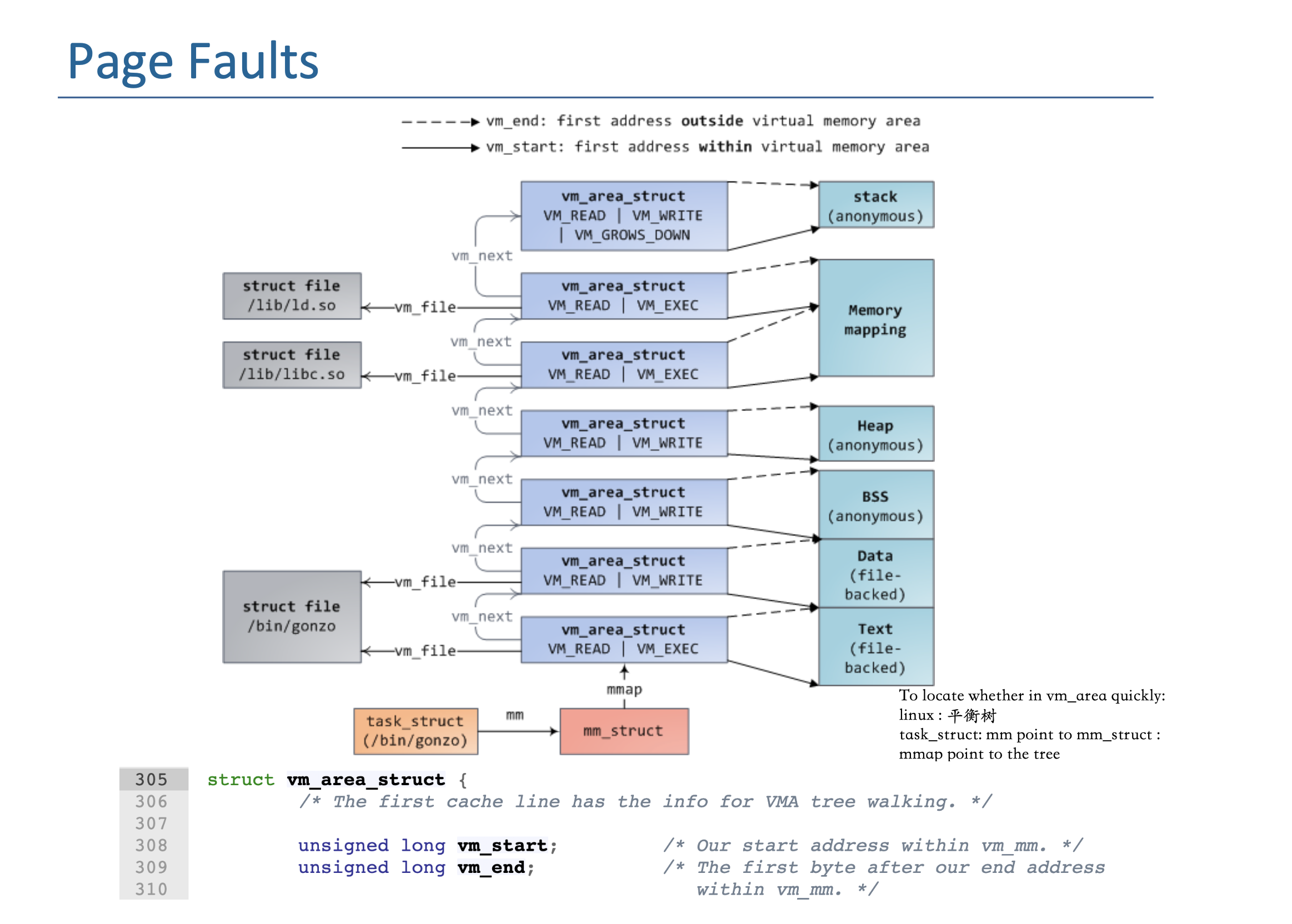

!Use VM area struct to record whether the page "SHOULD" be in memory -- demand paging
If not in vm_area_struct, then it is segementation fault
Also, If 权限不对，也是 segmentation fault

In Linux, vm_area_struct : 平衡树

Who handles page fault? -- Operating system

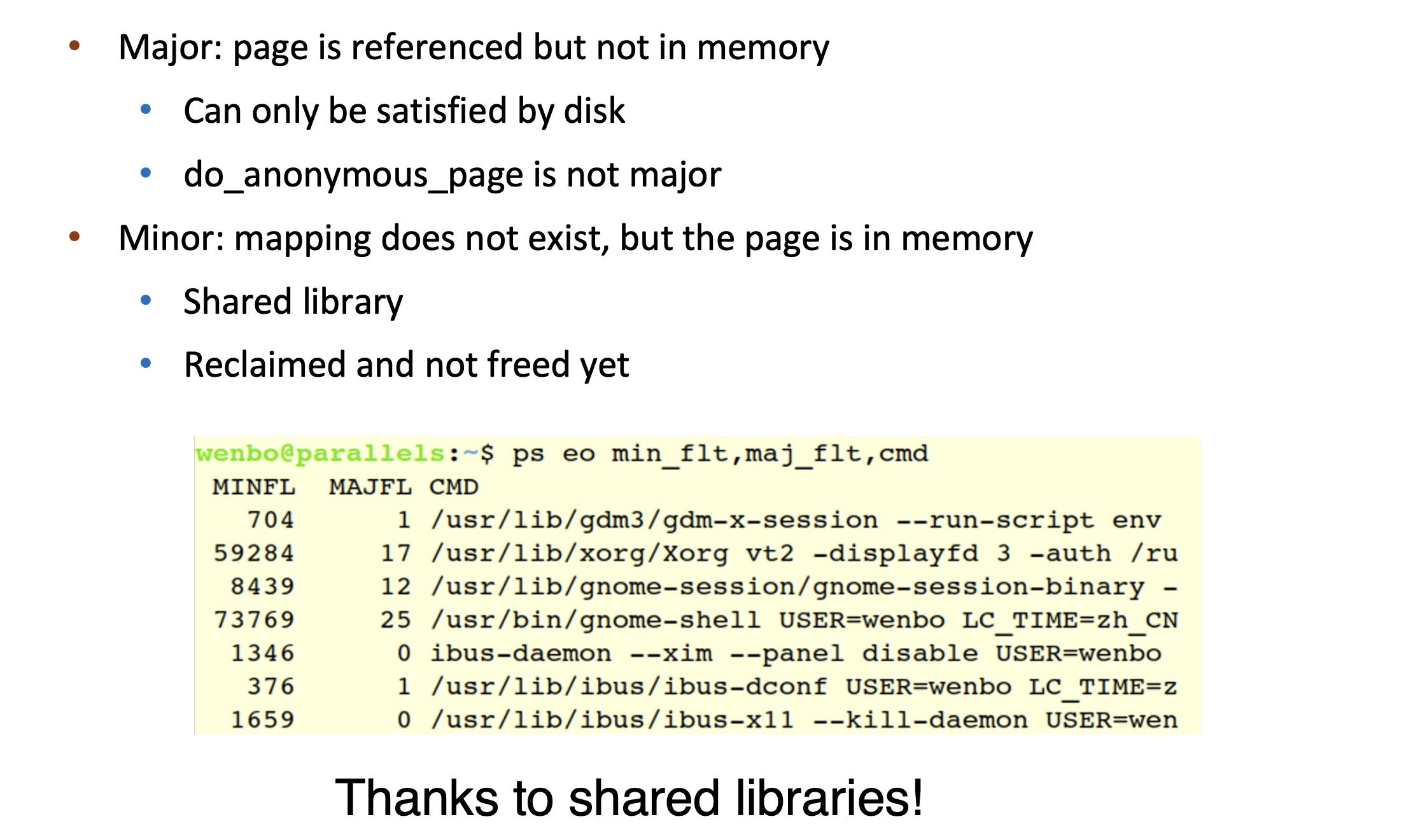

[MAJOR PAGE FAULT] Data 和 Text段是 file-backed -- Above Scenerio
[MINOR PAGE FAULT] 如果是stack/heap发生的falut : 3, 4都不会发生

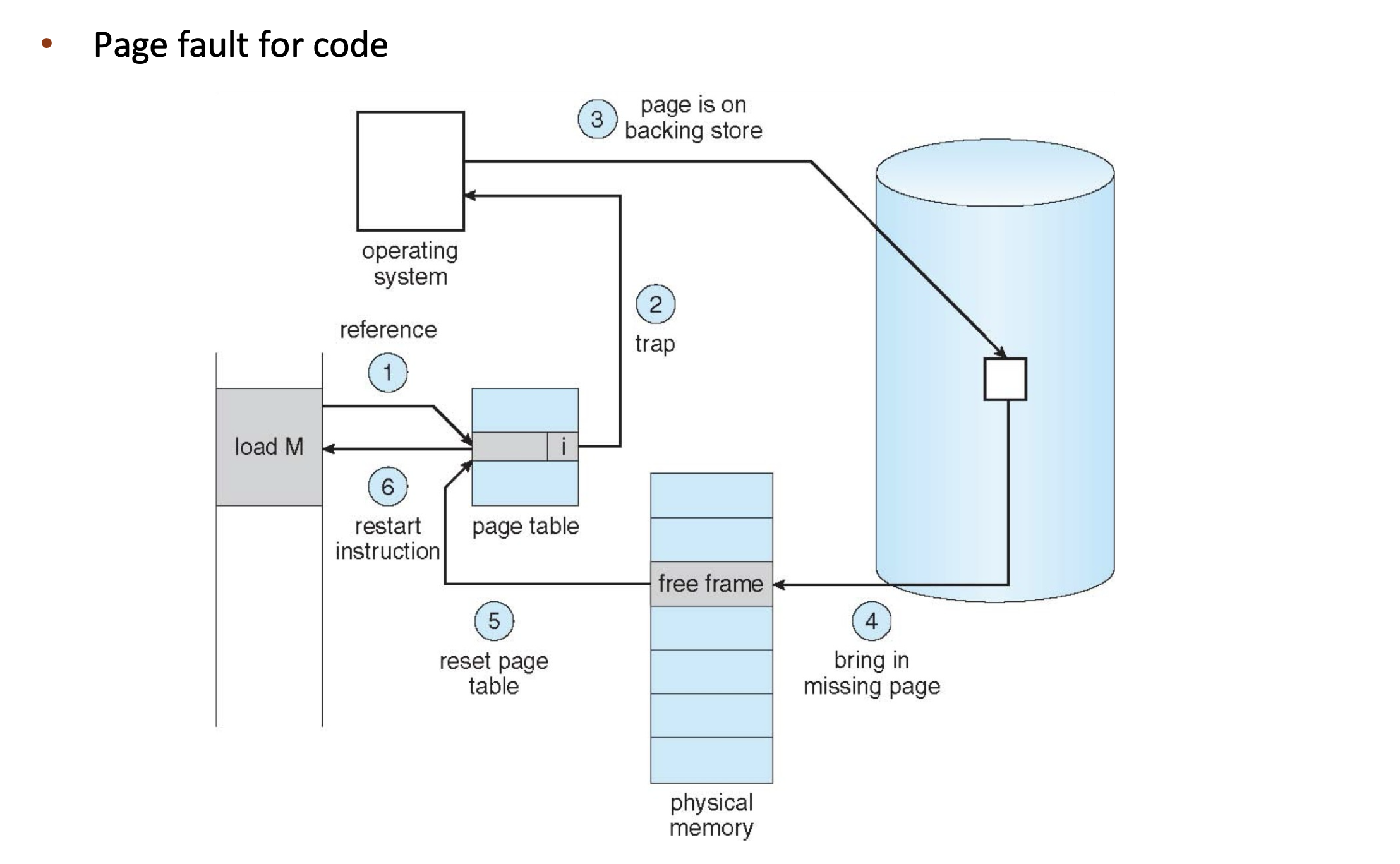

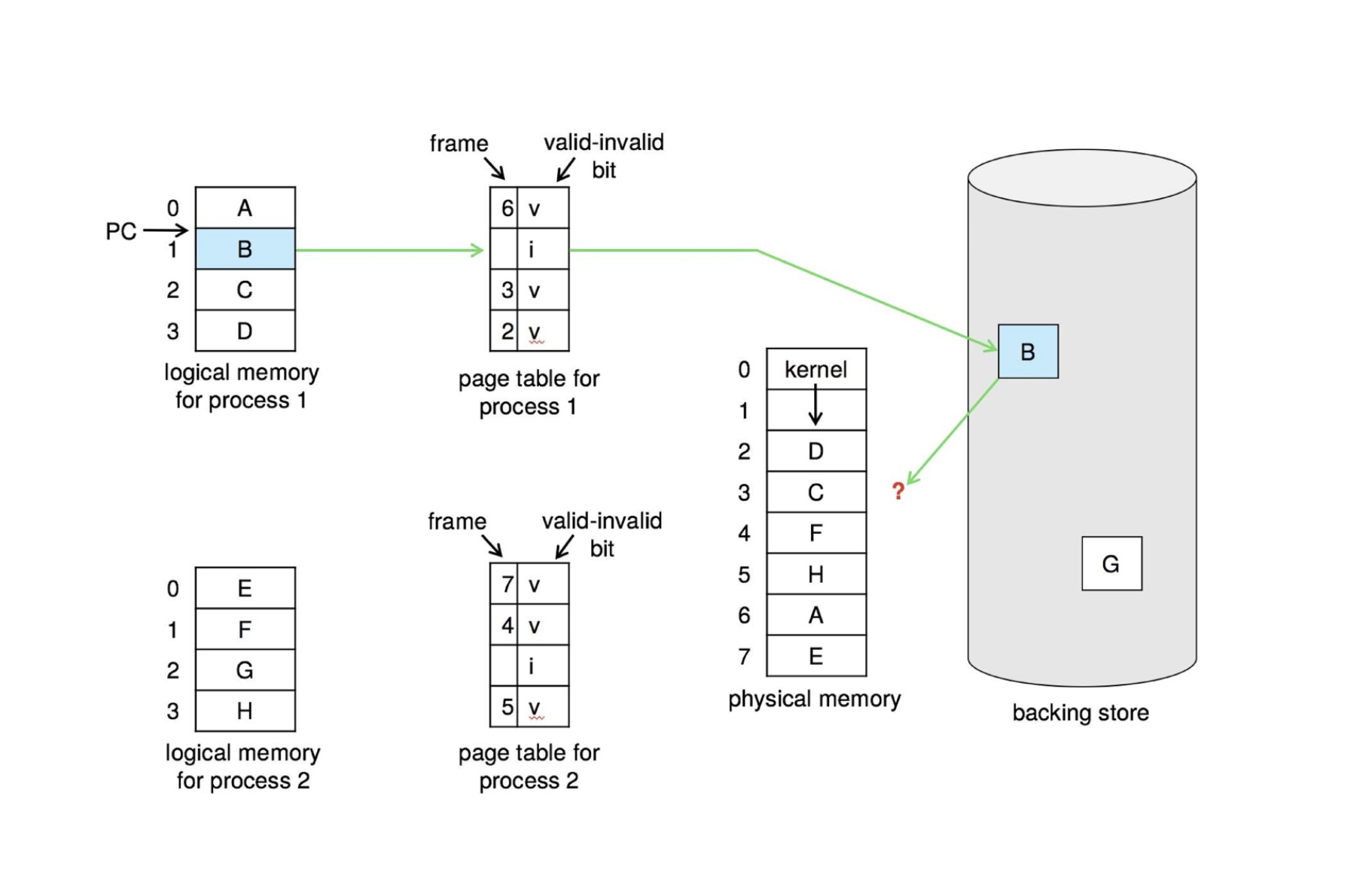

First reference to a non-present page will trap to kernel: page fault

Operating system looks at memory mapping to decide:

invalid reference ➠ deliver an exception to the process : Via check vma in Linux
valid but not in physical memory ➠ bring in

get an empty physical frame
bring page into frame via disk operation [Schedule I/O,Sleep on Disk]
set page table entry to indicate the page is now in memory
restart the instruction that caused the page fault

Suppose we have a page fault when access a static linked library, if ELF entry is 0xaaaa...

Is there a "demand segmenting?" -- No, 粒度太大了一次fault就把整个segment都load进来了

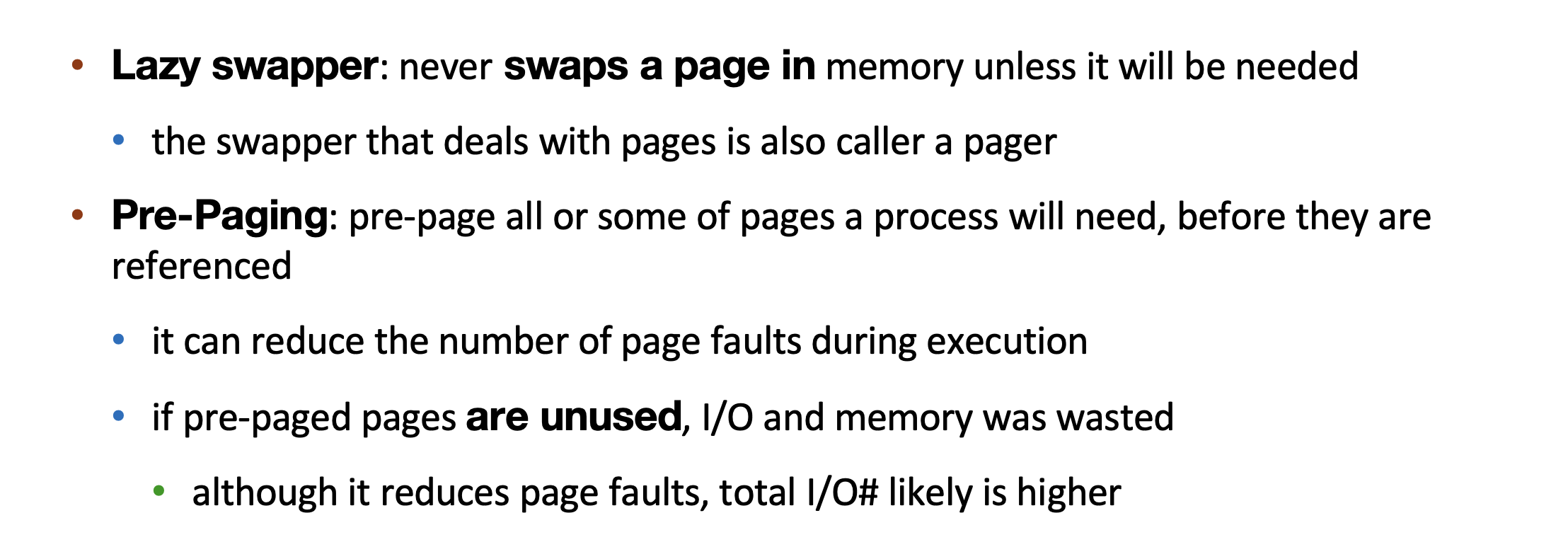

Page Fault - swapper¶

Pre-Paging ➠ bring in multiple pages at once 空间换时间

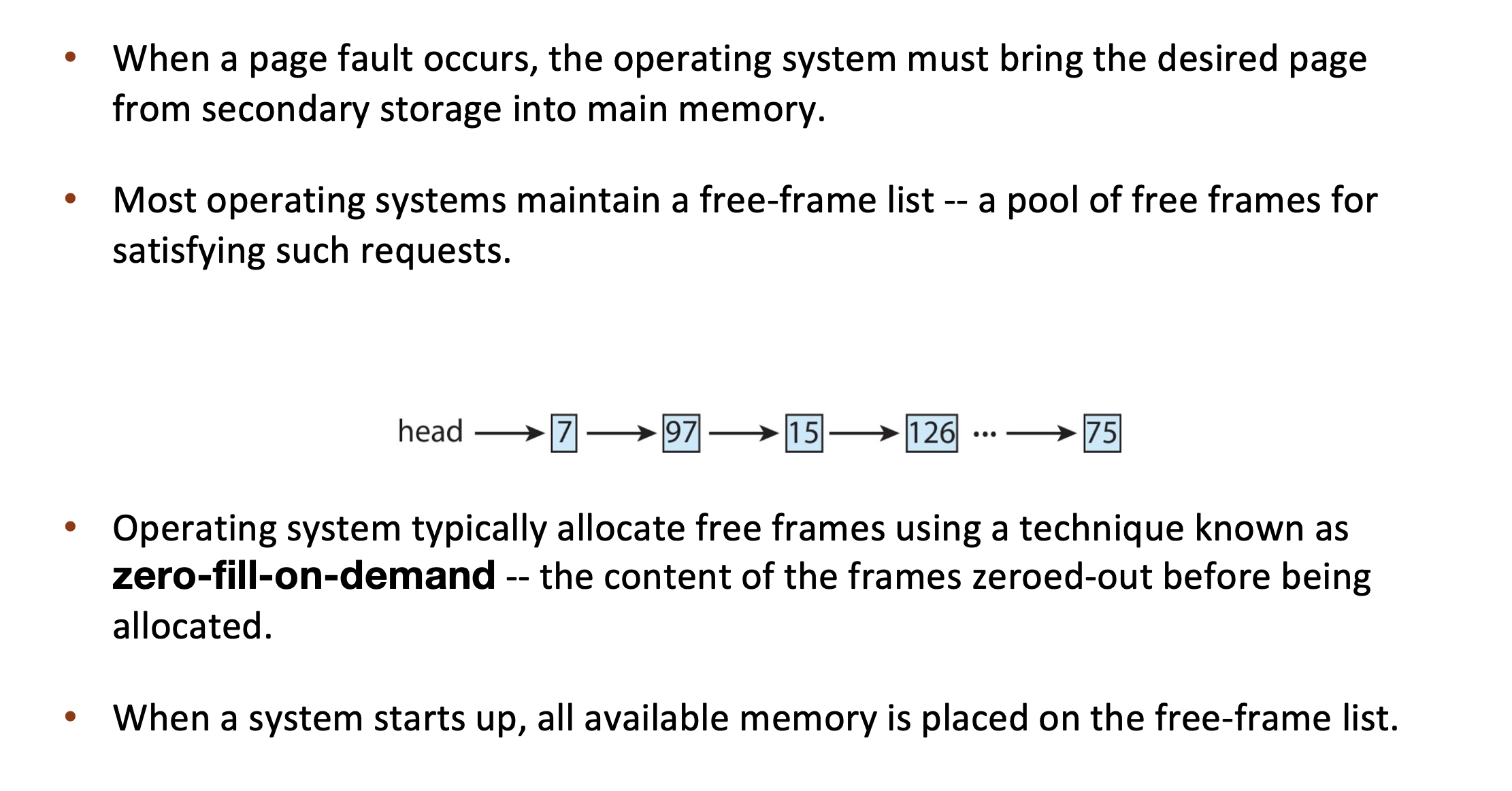

Page Fault – Get Free Frame¶

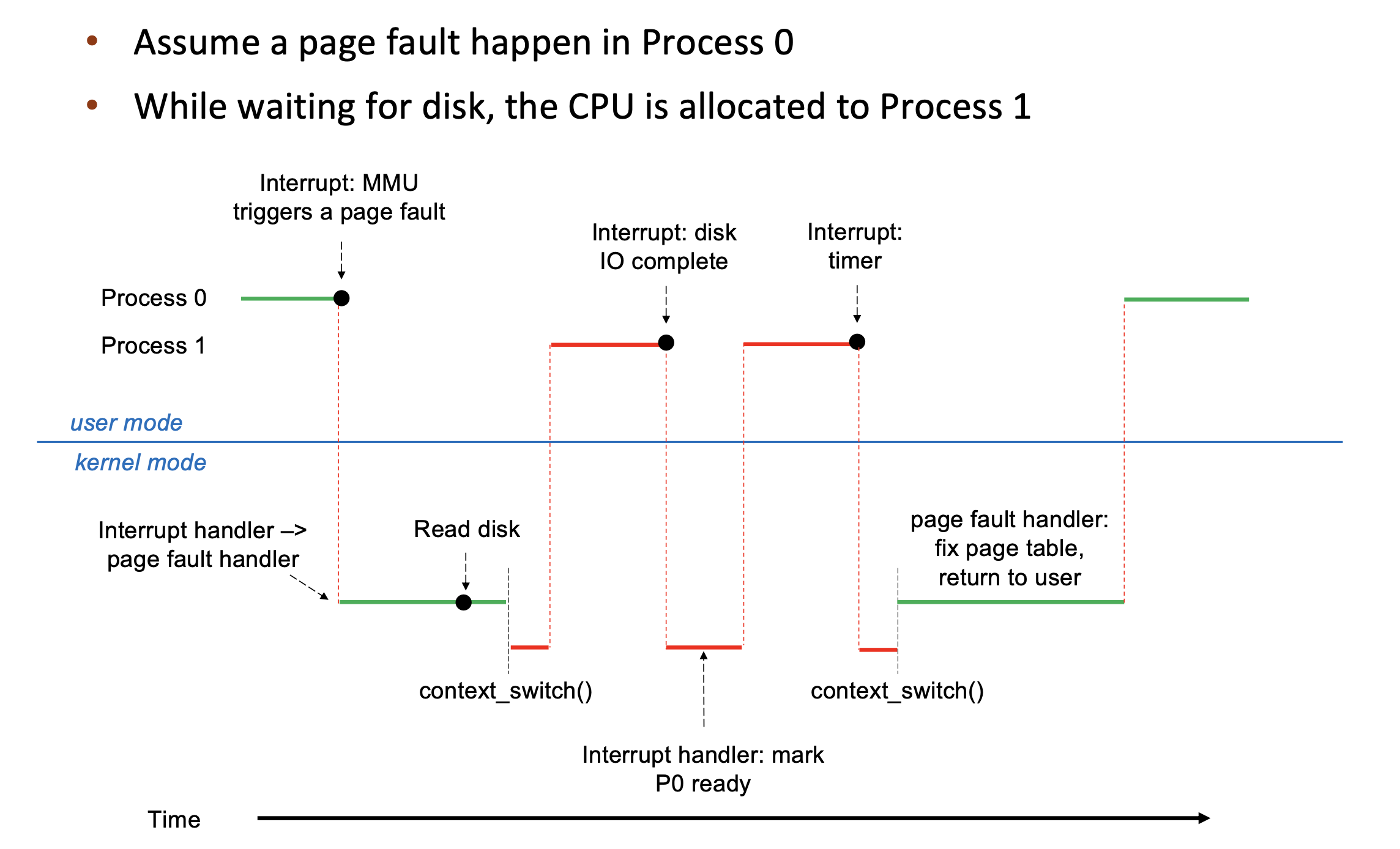

Stages in Demand Paging – Worse Case¶

Trap to the operating system
Save the user registers and process state
Determine that the interrupt was a page fault

3.1 Check that the page reference was legal

Find a free frame
Determine the location of the page on the disk, issue a read from the disk to the free frame:

5.1 Wait in a queue for this device until the read request is serviced
5.2 Wait for the device seek and/or latency time
5.3 Begin the transfer of the page to a free frame

While waiting, allocate the CPU to other process
Receive an interrupt from the disk I/O subsystem (I/O completed)

7.1 Determine that the interrupt was from the disk
7.2 Mark page fault process ready

Wait for the CPU to be allocated to this process again

8.1 Save registers and process state for other process
8.2 Context switch to page fault process

Correct the page table, mapping new frame
Return to user: restore the user registers, process state, and new page table, and then resume the interrupted instruction

Overhead -- Context switch

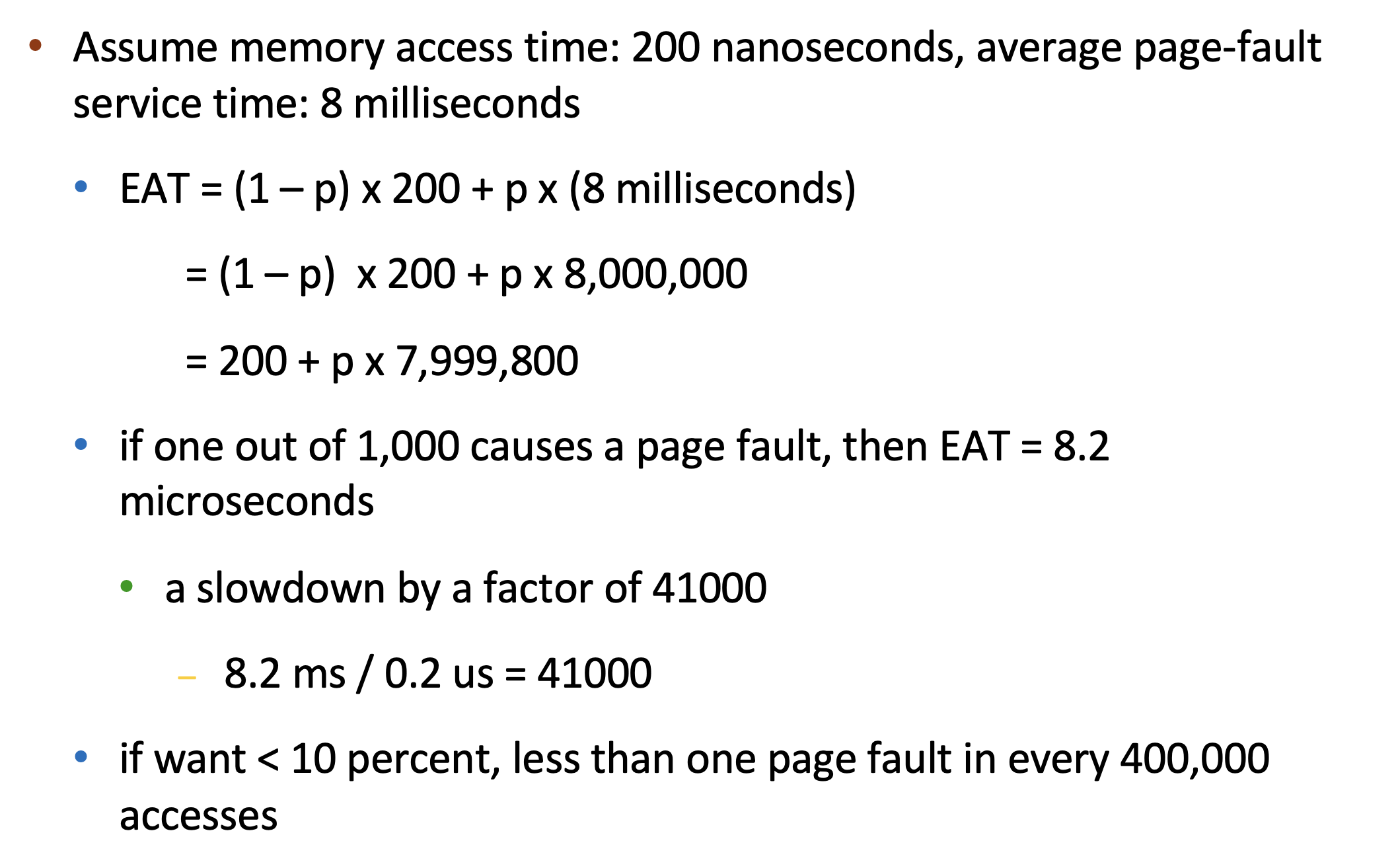

Demand Paging: EAT¶

Effective Access Time (EAT) = \((1-p) \times t_{memory} + p \times(t_{page \ fault\ overhead}\\ +t_{swap\ page\ out} + t_{swap\ page\ in} +t_{instruction\ restart\ overhead})\)

Demand Paging Optimizations¶

Swap space I/O faster than file system I/O even if on the same device

Swap allocated in larger chunks, less management needed than file system

Copy entire process image from disk to swap space at process load time

Then page in and out of swap space
Used in older BSD Unix

Demand page in from program binary on disk, but discard rather than paging out when freeing frame (and reload from disk next time)

Code can be discarded because it is already in the binary file

Following cases still need to write to swap space

Pages not associated with a file (like stack and heap) – anonymous memory
Pages modified in memory but not yet written back to the file system

Mobile systems

Typically don’t support swapping
Instead, demand page from file system and reclaim read-only pages (such as code)

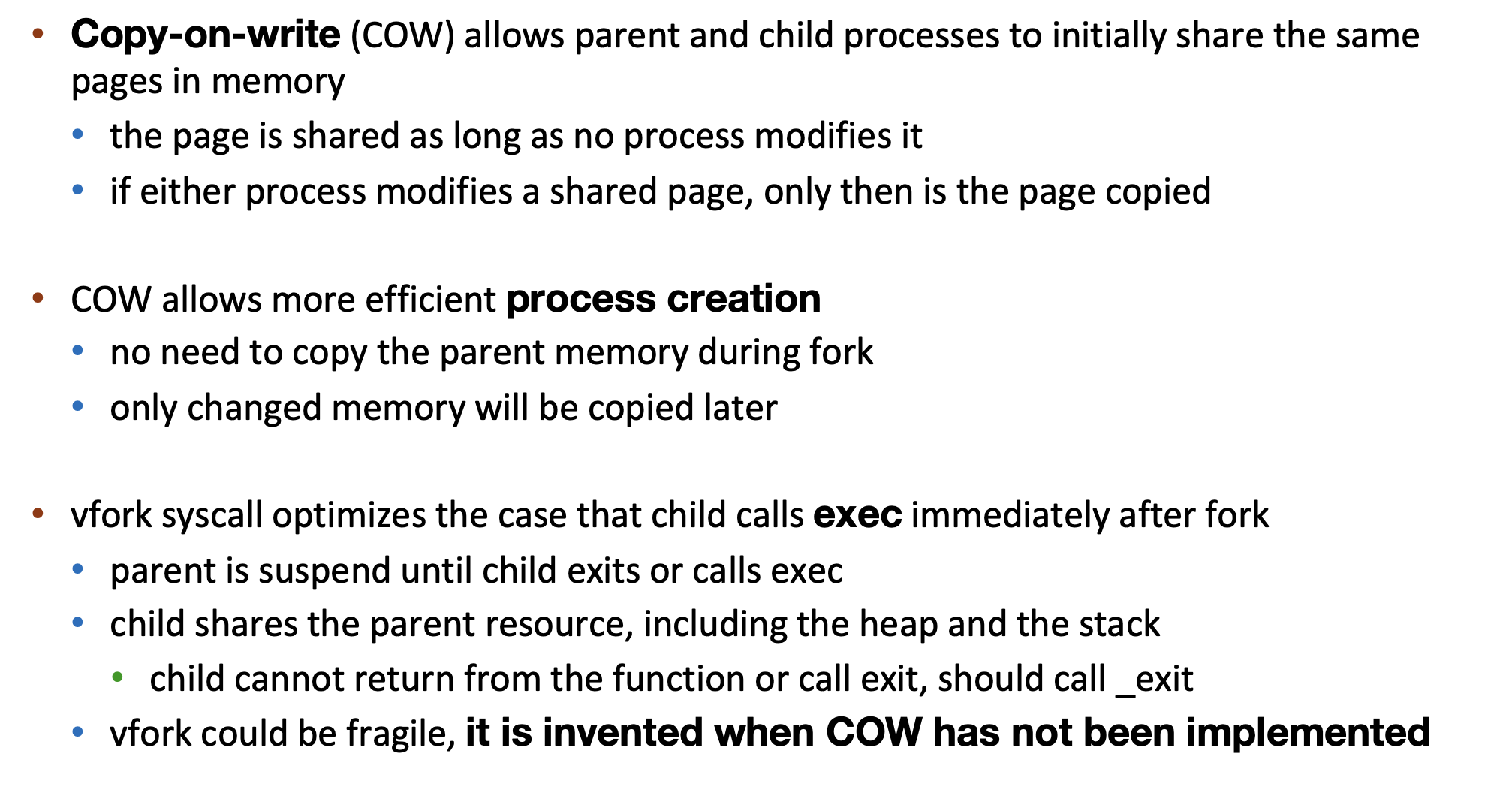

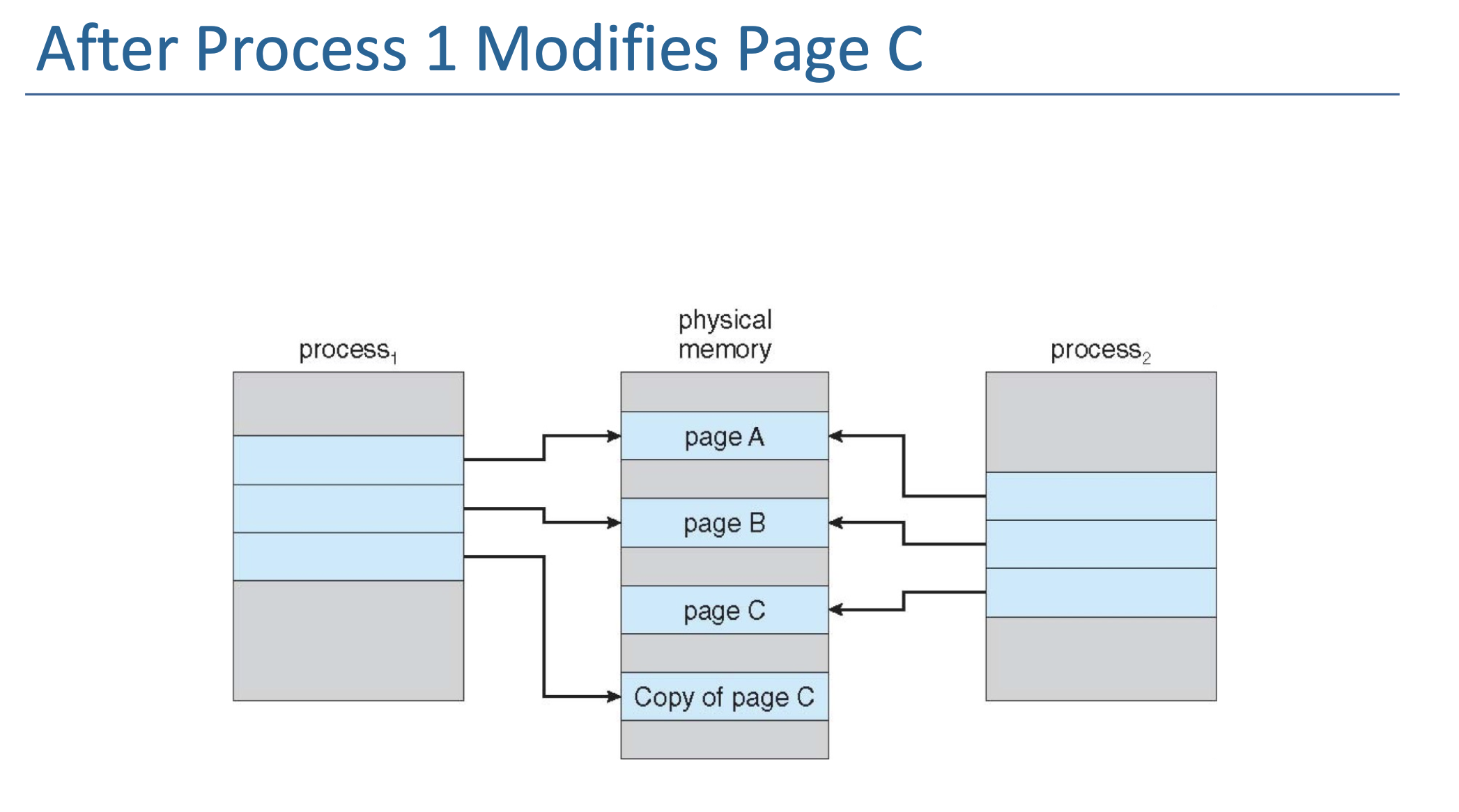

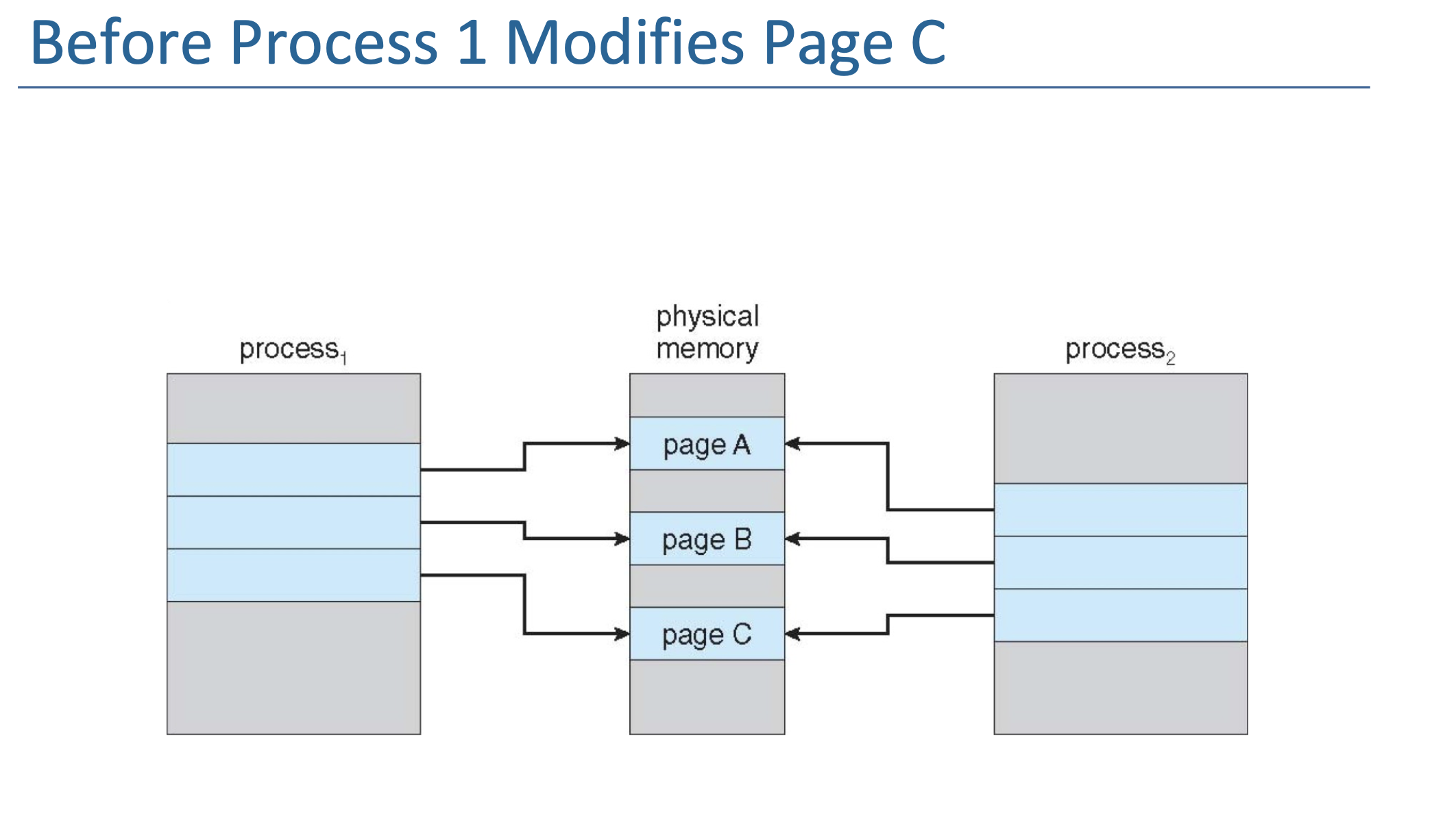

Copy-on-Write¶

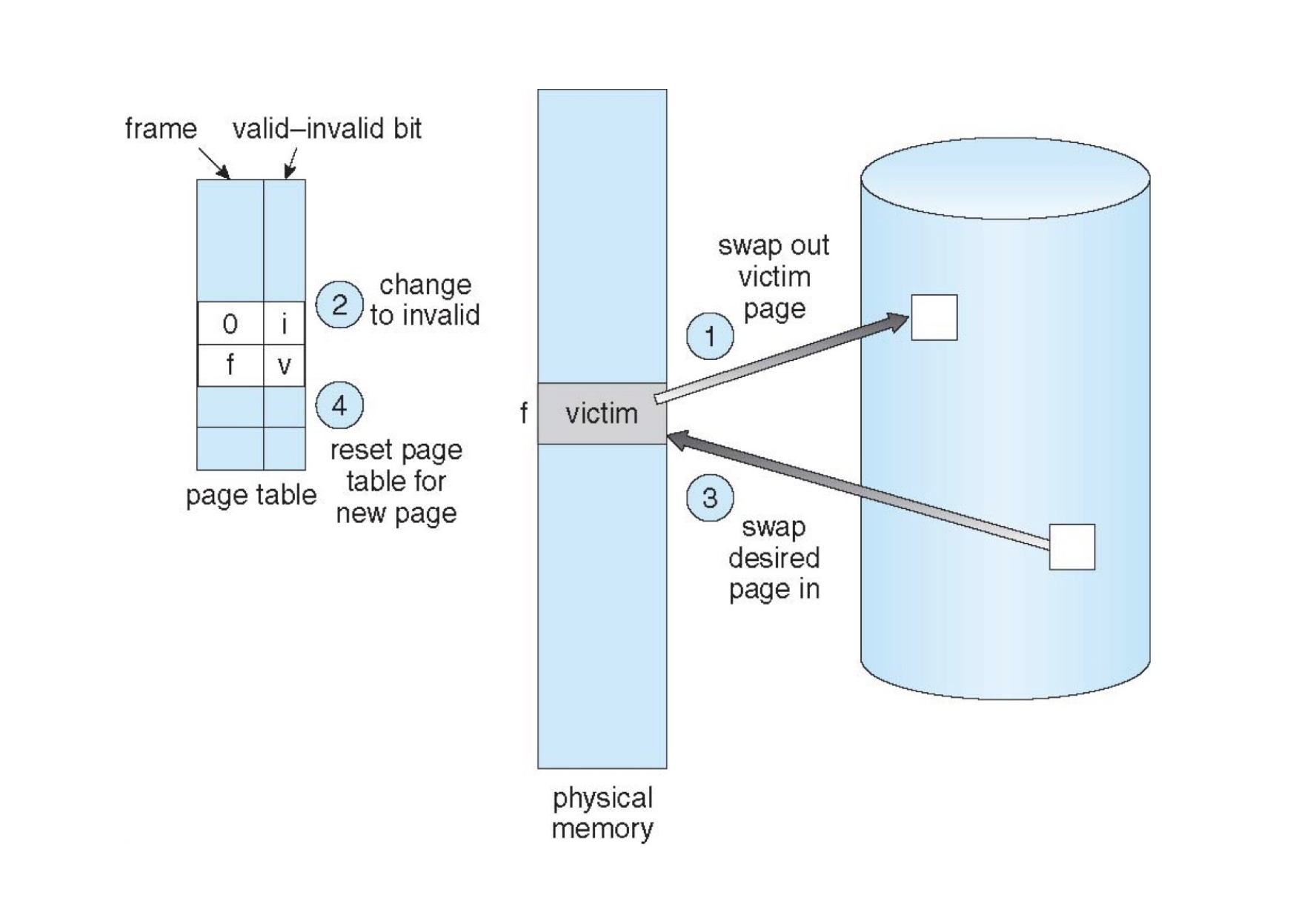

Page Replacement¶

find the location of the desired page on disk find a free frame:

if there is a free frame, use it
if there is none, use a page replacement policy to pick a victim frame, write victim frame to disk if dirty

bring the desired page into the free frame; update the page tables restart the instruction that caused the trap

Note now potentially 2 page I/O for one page fault ➠ increase EAT

Page Replacement Algorithms¶

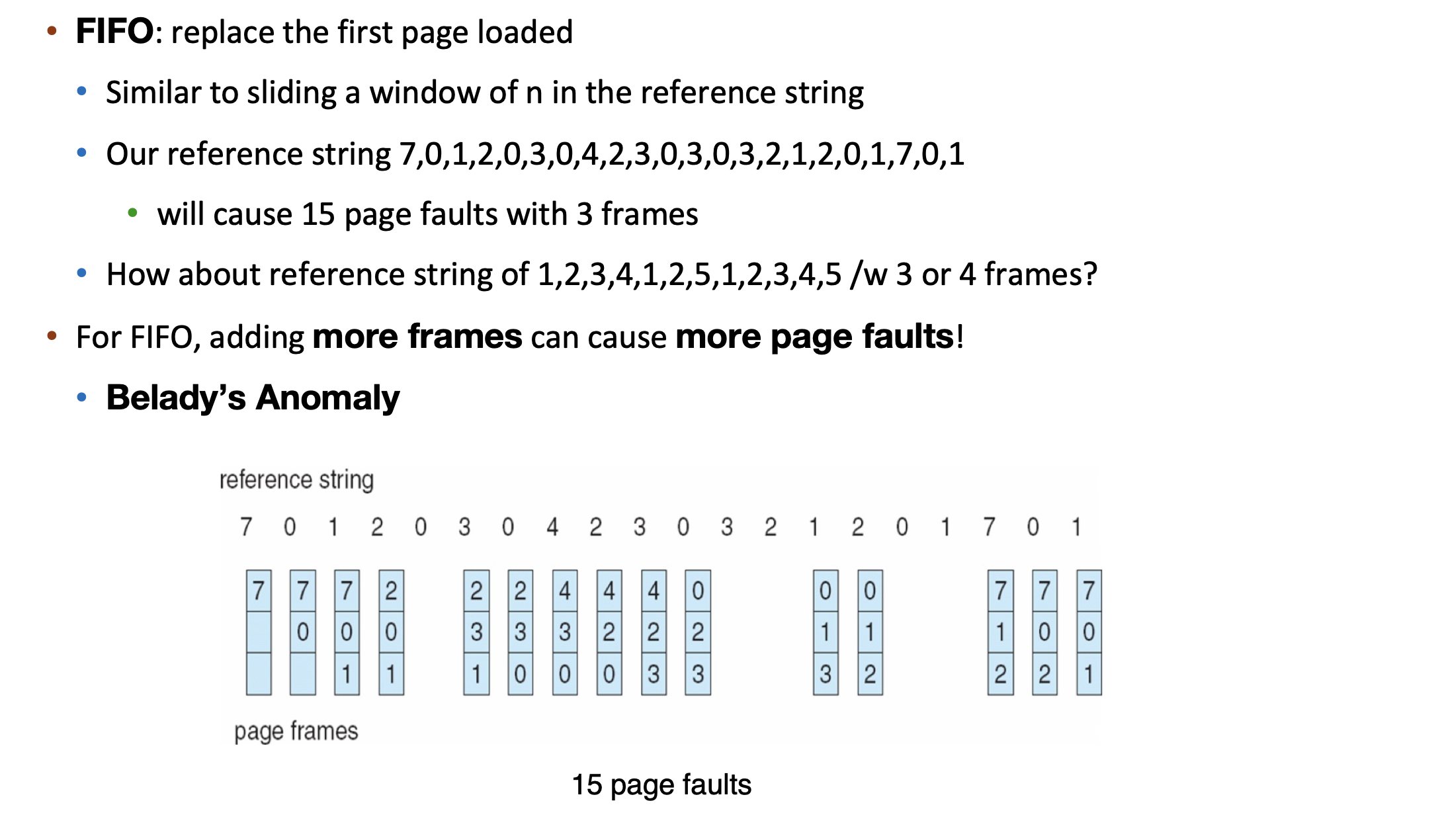

FIFO¶

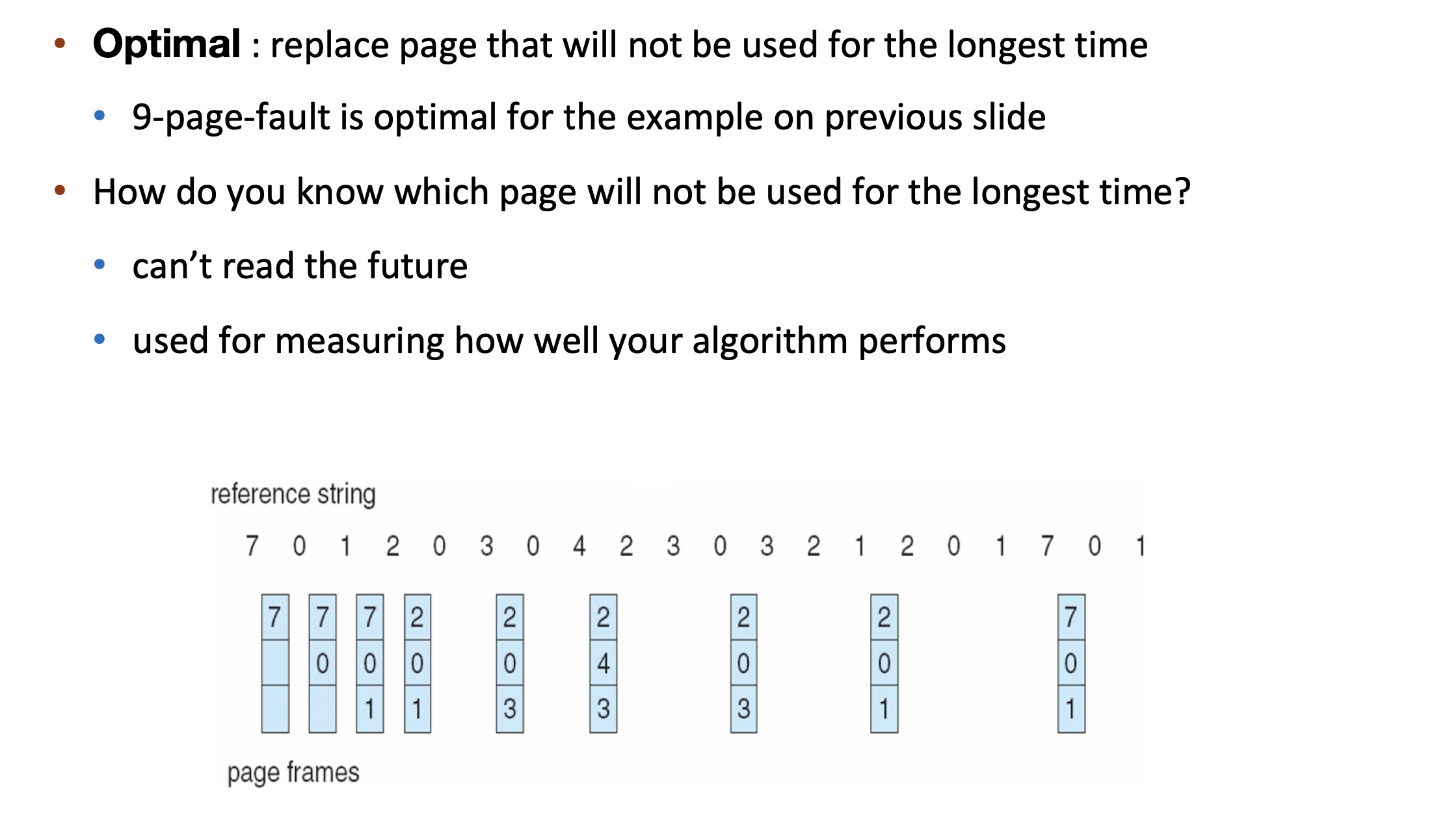

Optimal¶

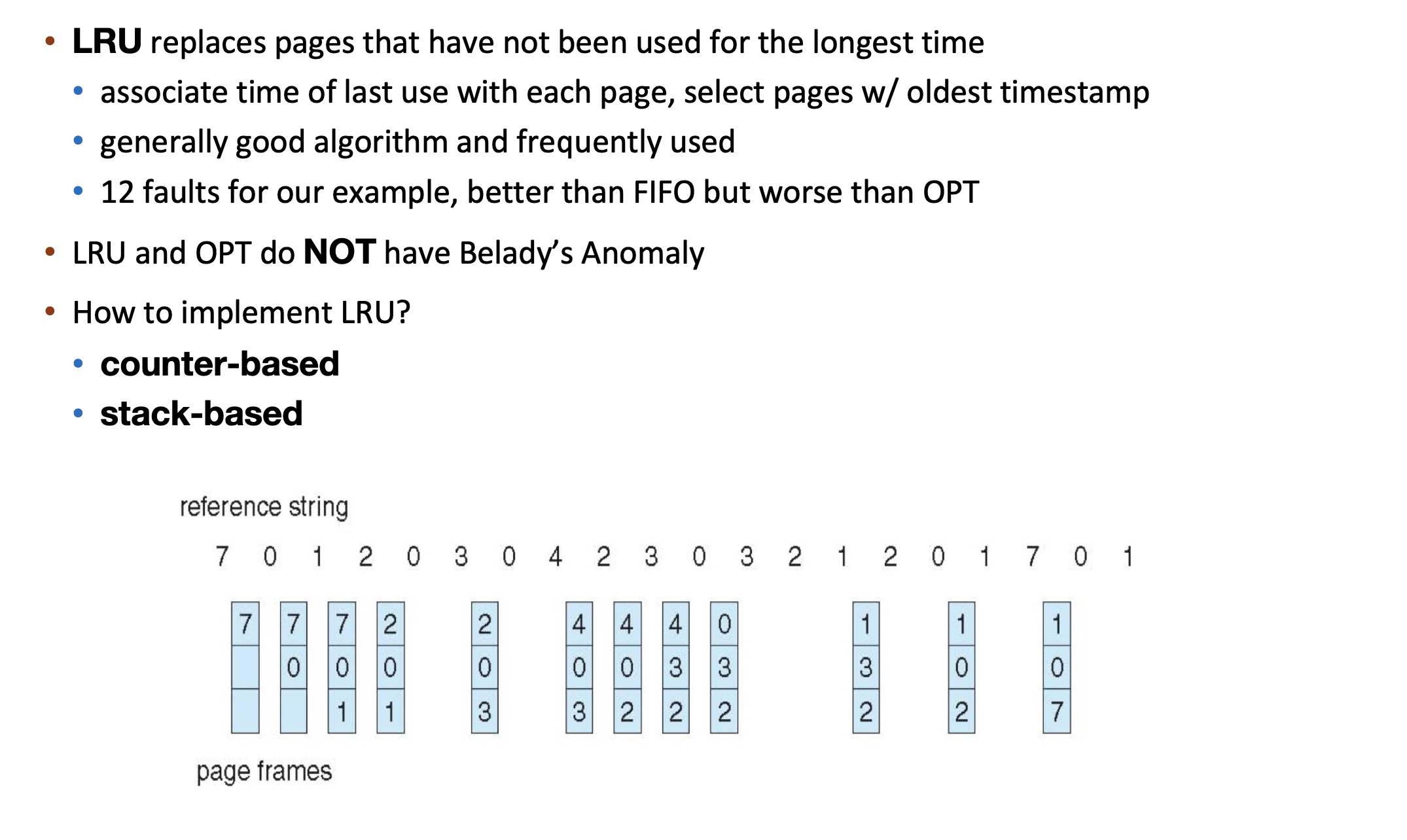

LRU¶

Counter-based implementation¶

every page table entry has a counter
every time page is referenced, copy the clock into the counter
when a page needs to be replaced, search for page with smallest counter
min-heap can be used

Stack-based implementation¶

keep a stack of page numbers (in double linked list)
when a page is referenced, move it to the top of the stack
each update is more expensive, but no need to search for replacement

LRU Approximation Implementation

Counter-based and stack-based LRU have high performance overhead Hardware provides a reference bit

LRU approximation with a reference bit

associate with each page a reference bit, initially set to 0
when page is referenced, set the bit to 1 (done by the hardware)
replace any page with reference bit = 0 (if one exists) We do not know the order, however

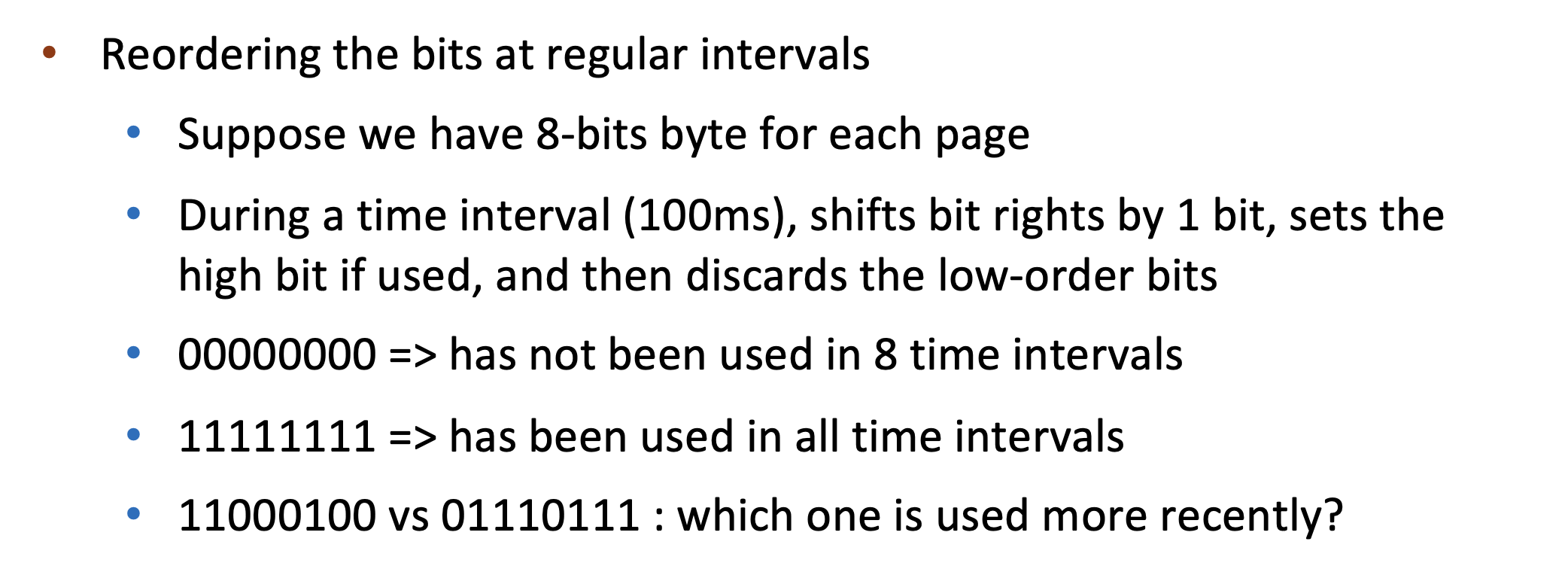

Additional-Reference-Bits Algorithm

11000100 more recently used -- 比大小即可

Second-chance algorithm

Generally FIFO, plus hardware-provided reference bit

Clock replacement

If page to be replaced has

Reference bit = 0 -> replace it
reference bit = 1 then: 1. set reference bit 0, leave page in memory 2. replace next page, subject to same rules

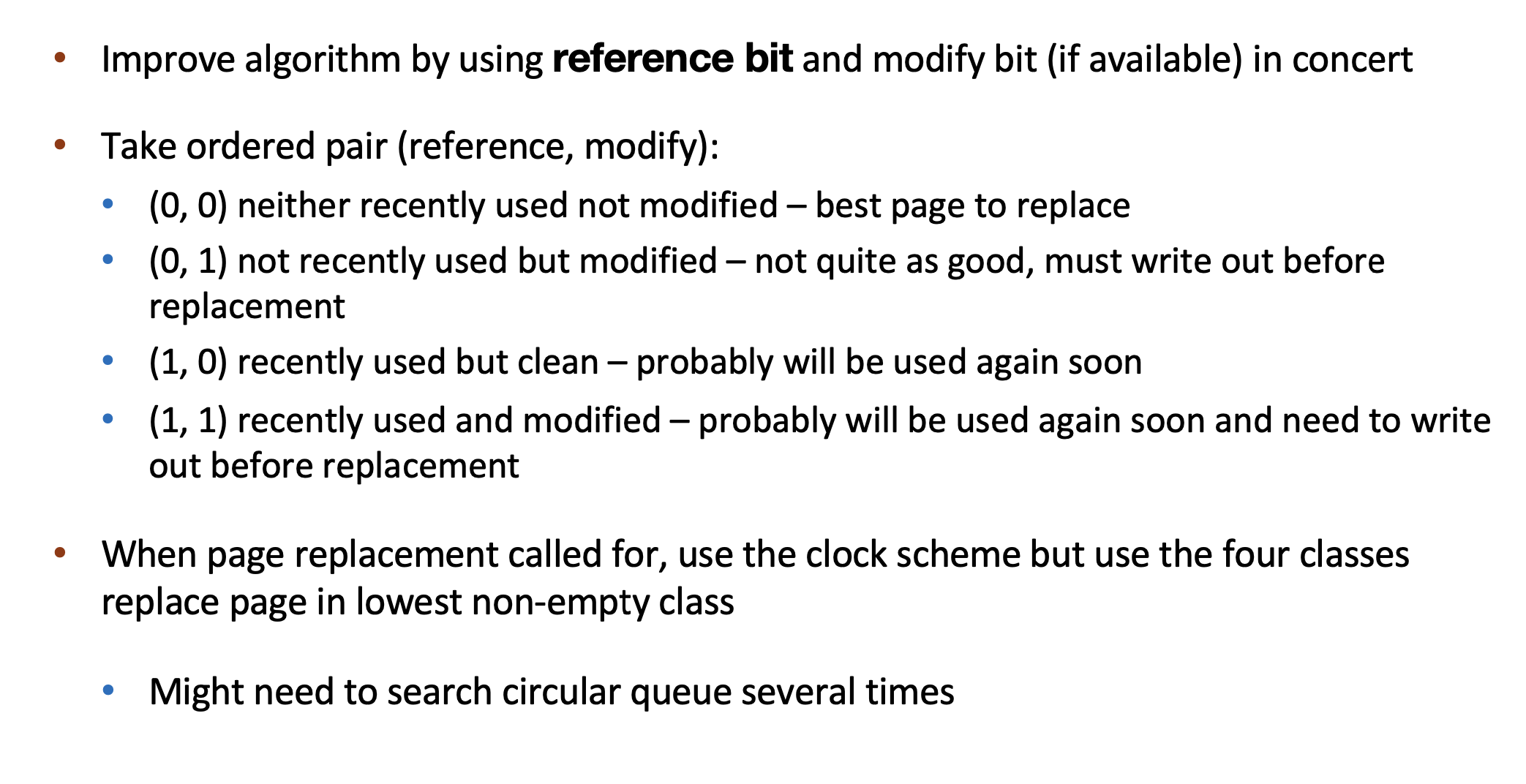

Enhanced Second-Chance Algorithm -- modify bit

Counting-based Page Replacement¶

Keep the number of references made to each page

LFU¶

Replaces page with the smallest counter

A page is heavily used during process initialization and then never used

MFU¶

Replaces page with the largest counter

Based on the argument that page with the smallest count was probably just brought in and has yet to be used

Page-Buffering Algorithms¶

Kernel Worker Thread

Keep a pool of free frames, always

frame available when needed, no need to find at fault time
Read page into free frames without waiting for victims to write out : Restart as soon as possible
When convenient, evict victim

Possibly, keep list of modified pages

When disk idles, write pages there and set to non-dirty: this page can be replaced without writing pages to backing store

Possibly, keep free frame contents intact and note what is in them - a kind of cache

If referenced again before reused, no need to load contents again from disk
cache hit

Double Buffering¶

Memory intensive applications can cause double buffering - a waste of memory

OS keeps copy of page in memory as I/O buffer
Application keeps page in memory for its own work

Operating system can given direct access to the disk, getting out of the way of the applications - Raw disk mode.

赋予操作系统直接访问磁盘的权限

Allocation of Frames¶

Two major allocation schemes for process memory allocation

Equal allocation¶

For example, if there are 100 frames (after allocating frames for the OS) and 5 processes, give each process 20 frames
Keep some as free frame buffer pool

Proportional allocation¶

Allocate according to the size of process
Dynamic as degree of multiprogramming, process sizes change

In Linux just demand paging, no equal/proportional allocation

Global replacement¶

process selects a replacement frame from the set of all frames; one process can take a frame from another

But then process execution time can vary greatly - depends on others
But greater throughput so more common

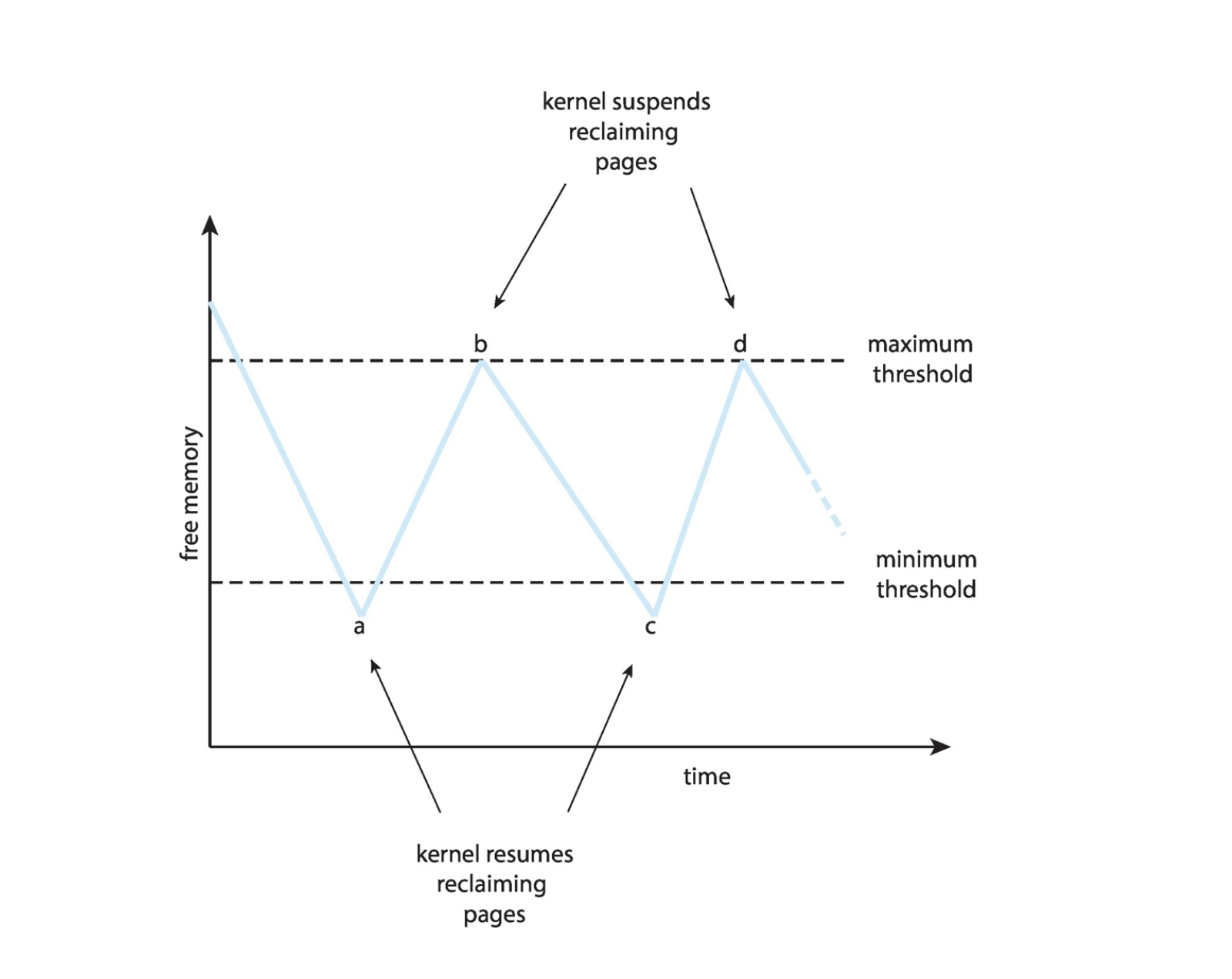

Reclaiming Pages¶

A strategy to implement global page-replacement policy
All memory requests are satisfied from the free-frame list
Rather than waiting for the list to drop to zero before we begin selecting pages for replacement, page replacement is triggered when the list falls below a certain threshold.

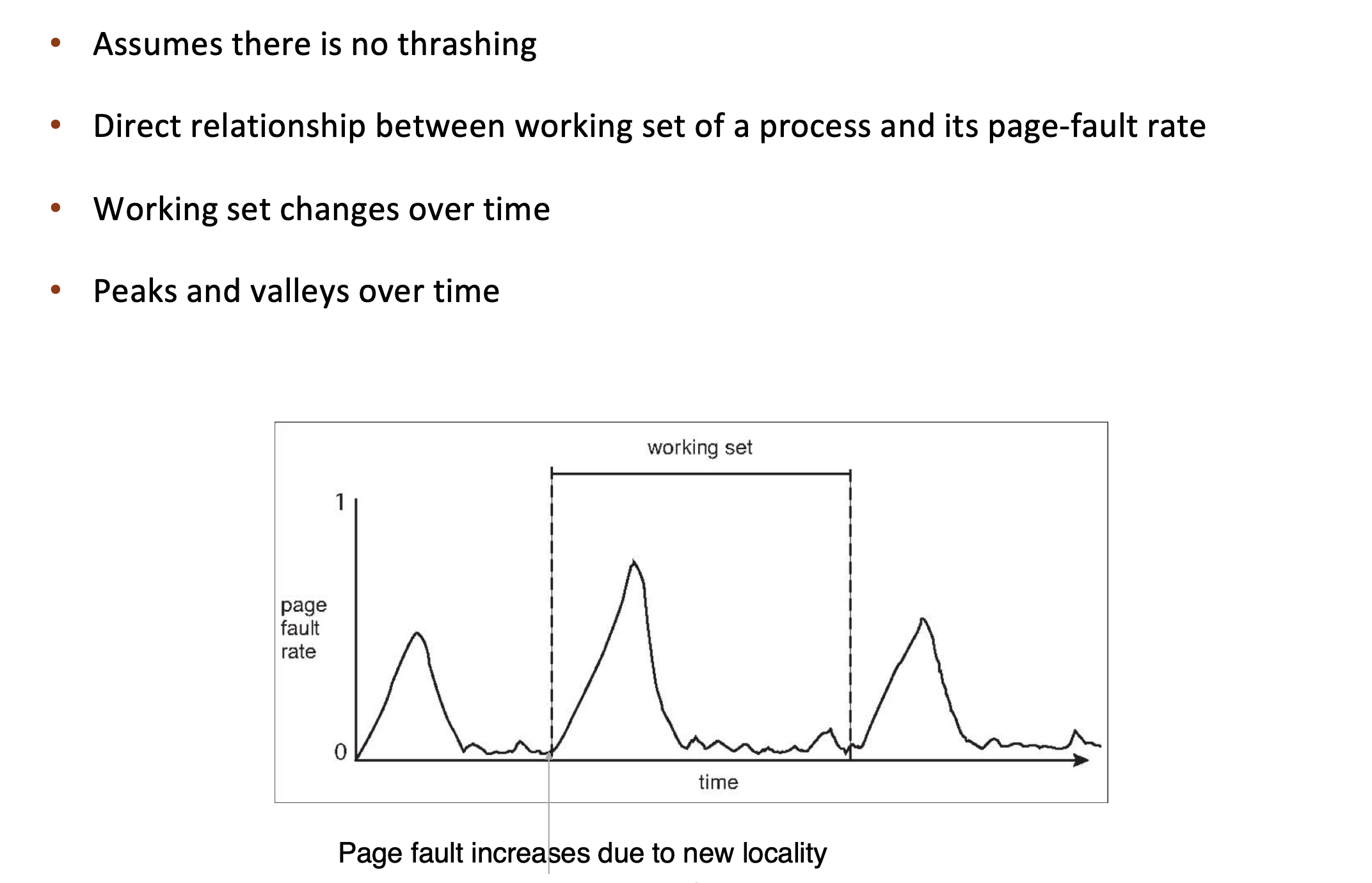

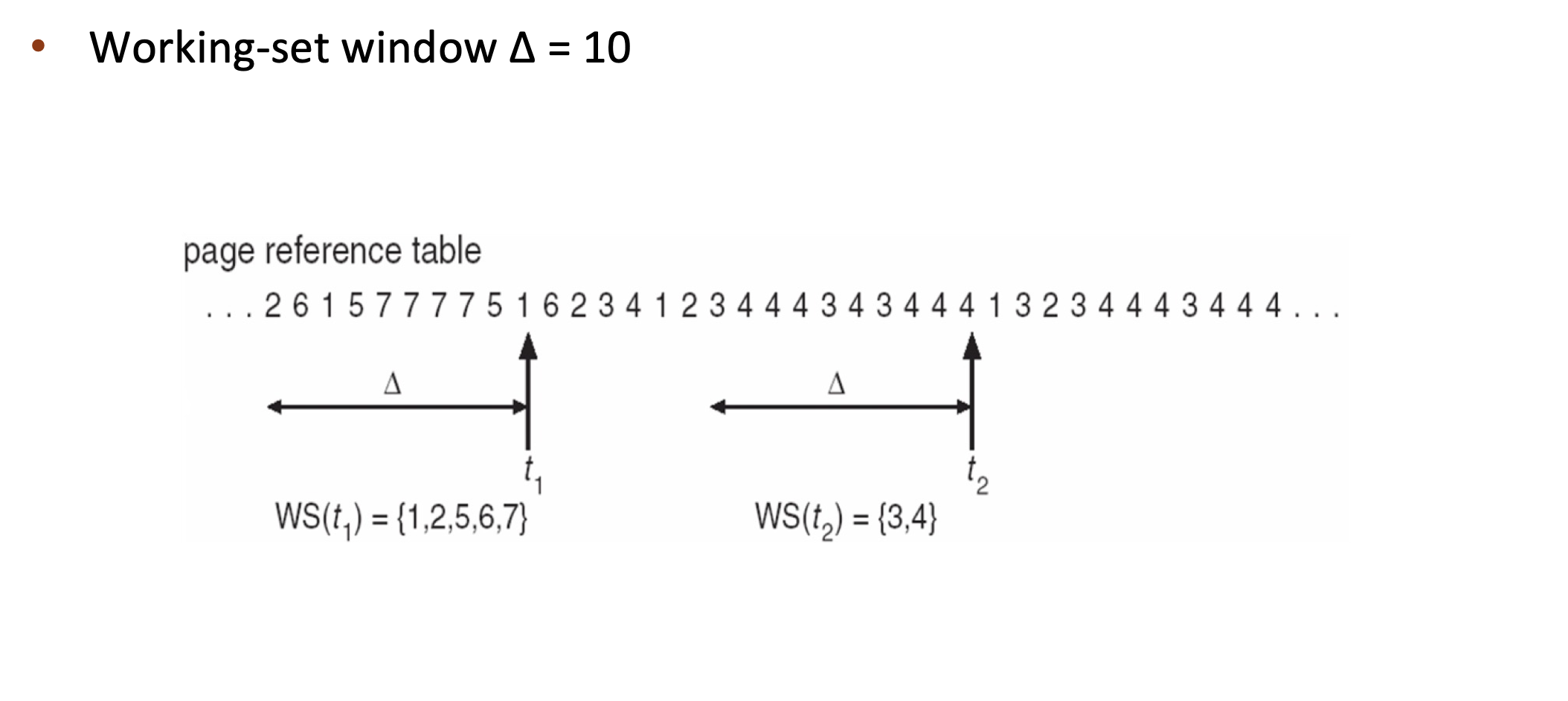

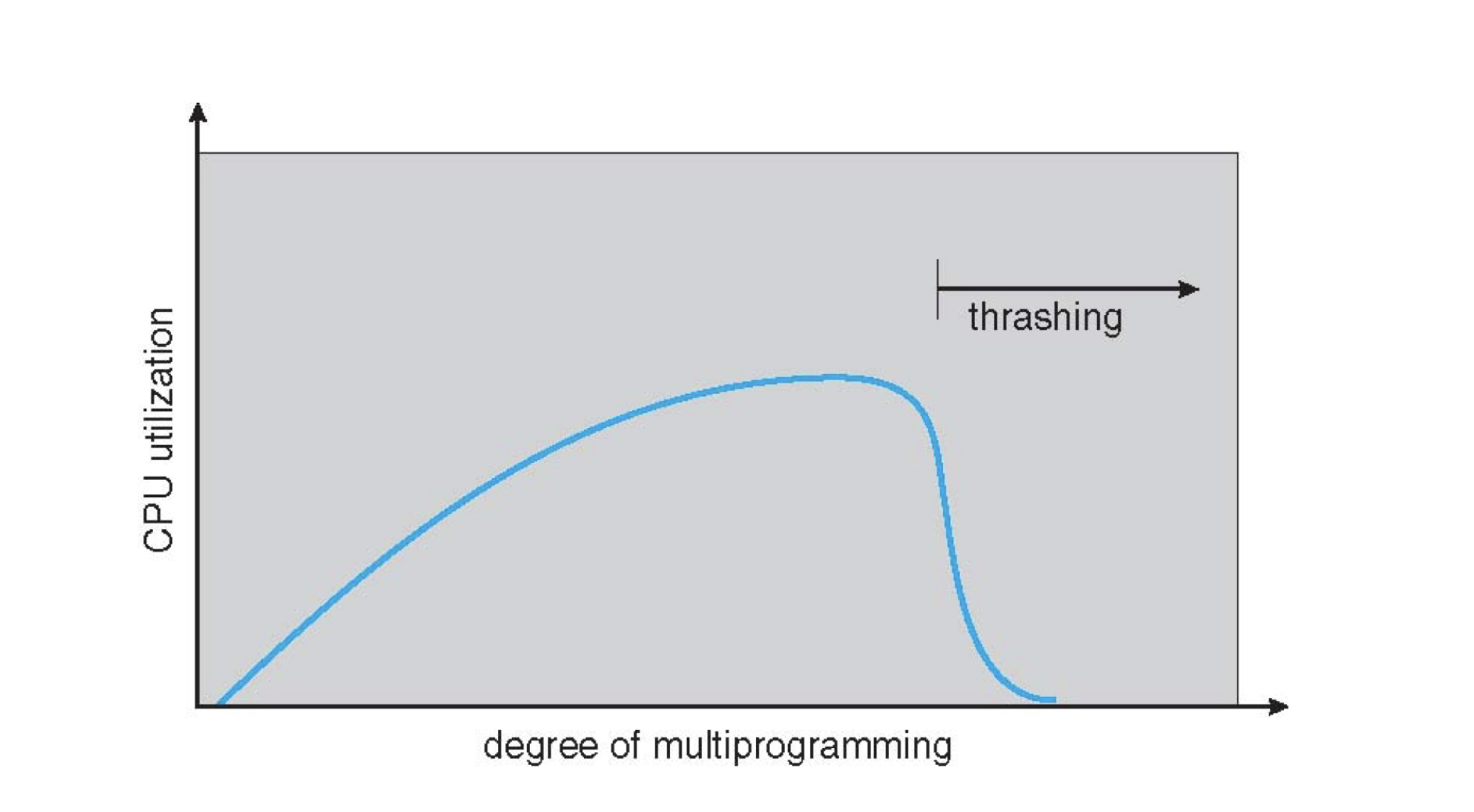

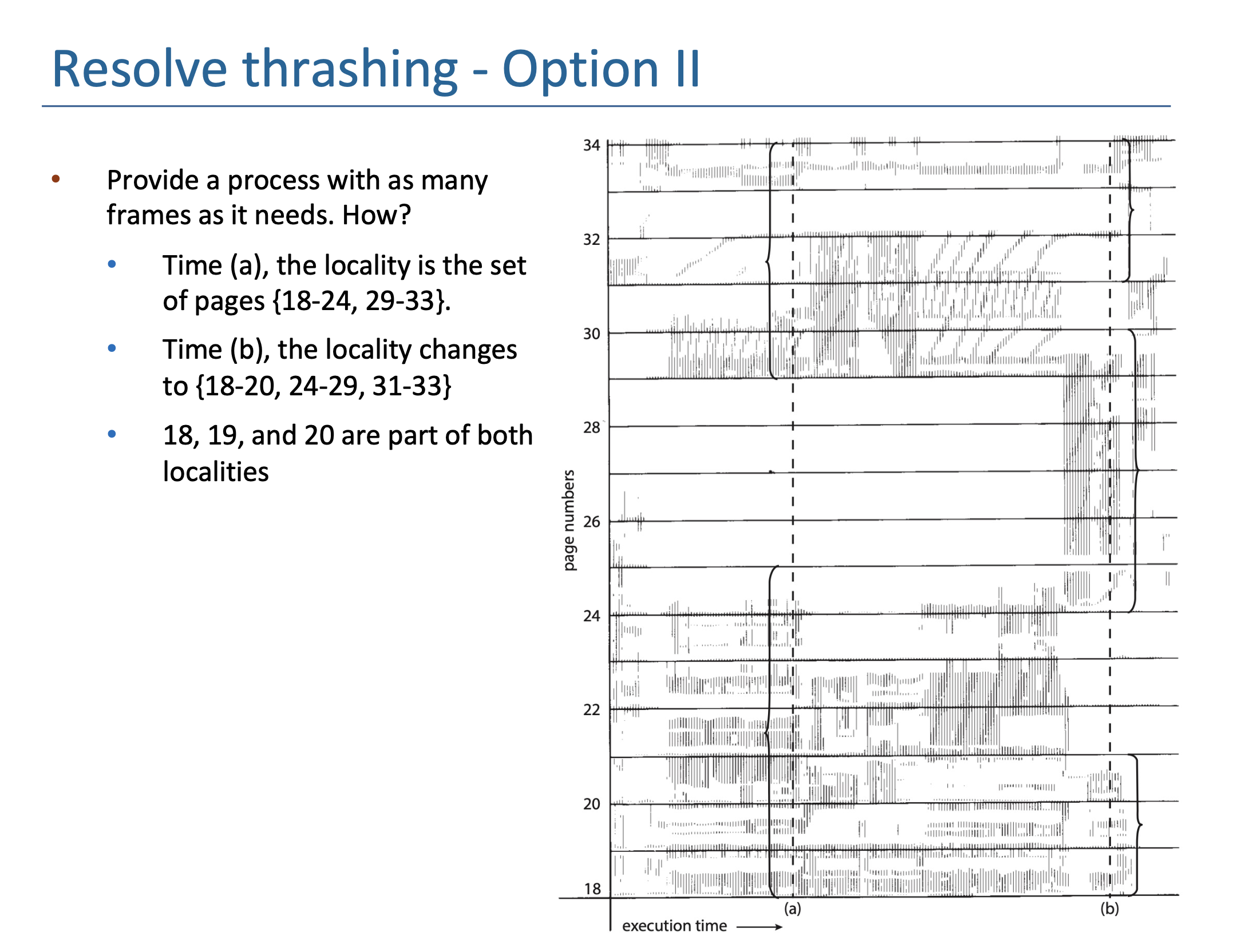

This strategy attempts to ensure there is always sufficient free memory to satisfy new requests.
