Lecture 13 - I/O Systems¶

Memory-mapped I/O¶

Data and command registers mapped to processor address space
To access (large) on-device memory (graphics)

Polling¶

CPU主动查询设备状态

For each I/O operation:

Busy-wait if device is busy (status register) -- Cannot accept any command if busy
Send the command to the device controller (command register)
Read status register until it indicates command has been executed
Read execution status, and possibly reset device status

Polling requires busy wait

Reasonable if device is fast; inefficient if device slow

How to avoid busy-wait?

Like samephore, but for I/O devices -- record into waiting queue, sleep on the waiting queue of the [corresponding device]
Use Interrupts to tell CPU when device is ready
When device is ready, it will interrupt the CPU, and the CPU will do scheduling!

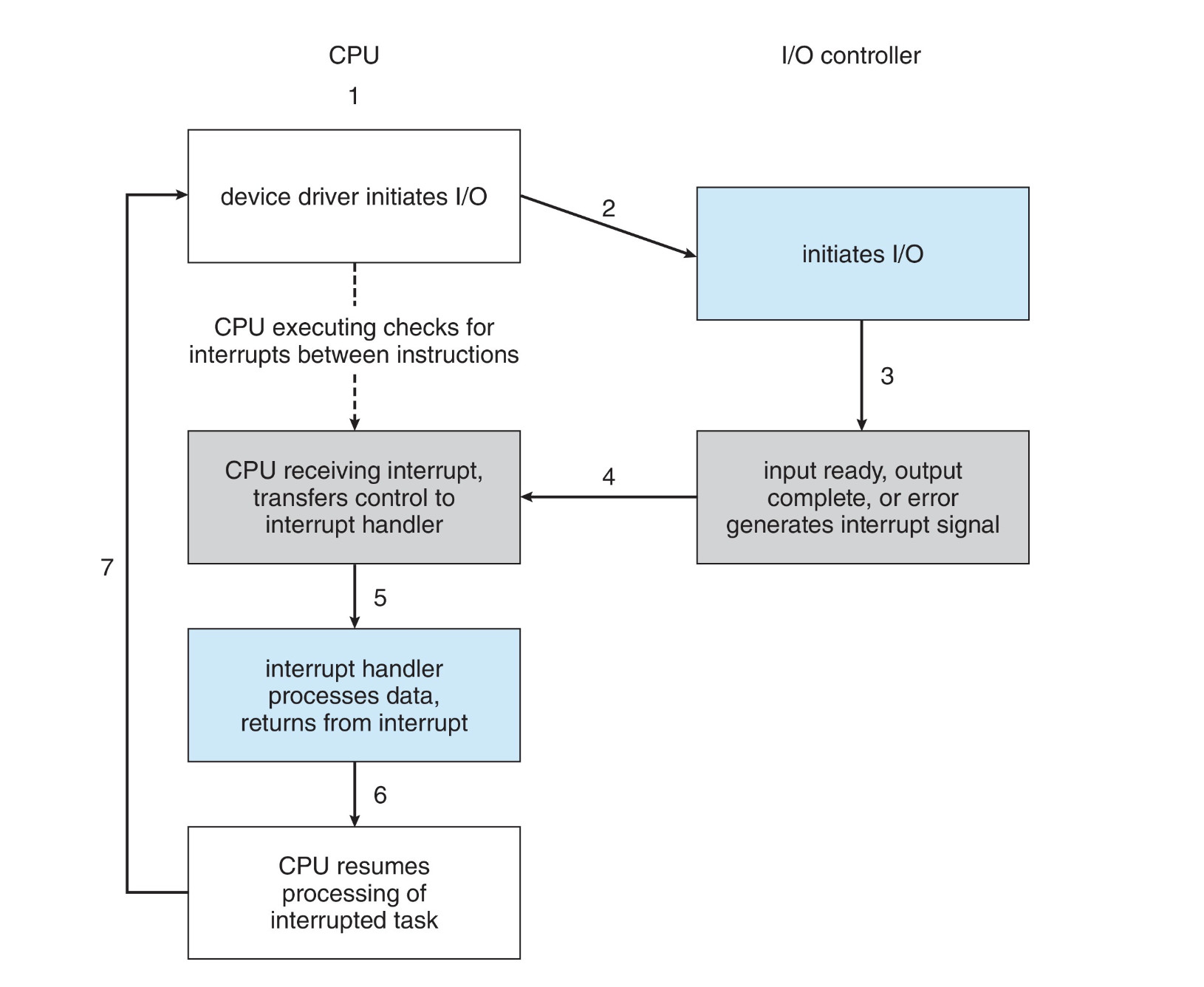

Interrupts¶

设备主动通知CPU

操作系统等一个event : 包括 interrupt, exception...

Polling requires busy-wait, inefficient use of CPU resource Interrupts can avoid busy-wait

device driver (part of OS) send a command to the controller (on device), and return
OS can schedule other activities
device will interrupt the processor when command has been executed
OS retrieves the result by handling the interrupt

Interrupt-based I/O requires context switch at start and end

if interrupt frequency is extremely high, context switch wastes CPU time
solution: use polling instead
example: NAPI in Linux enables polling under very high network load

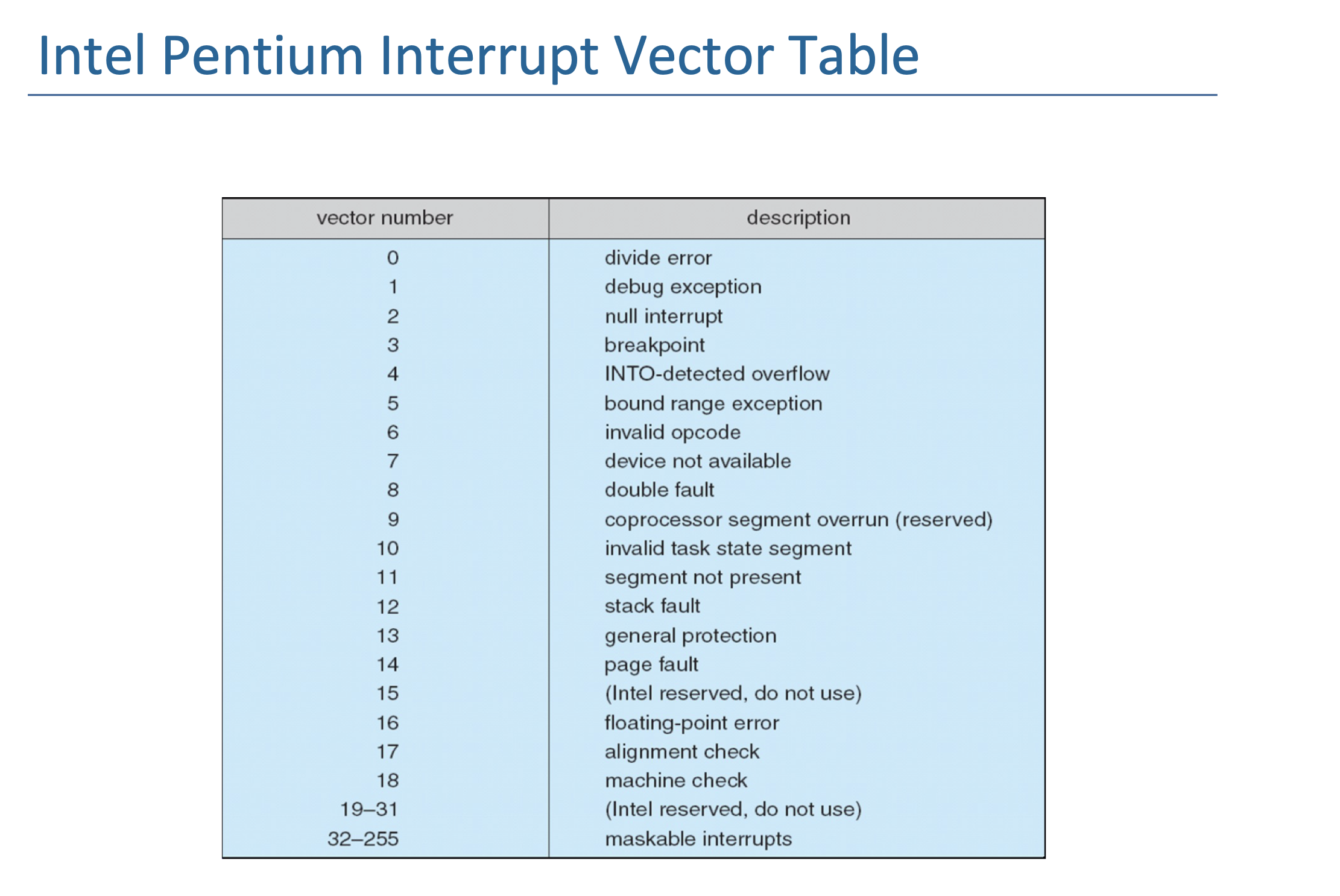

Interrupt is also used for exceptions

protection error for access violation
page fault for memory access error
software interrupt for system calls

Multi-CPU systems can process interrupts concurrently

sometimes a CPU may be dedicated to handle interrupts

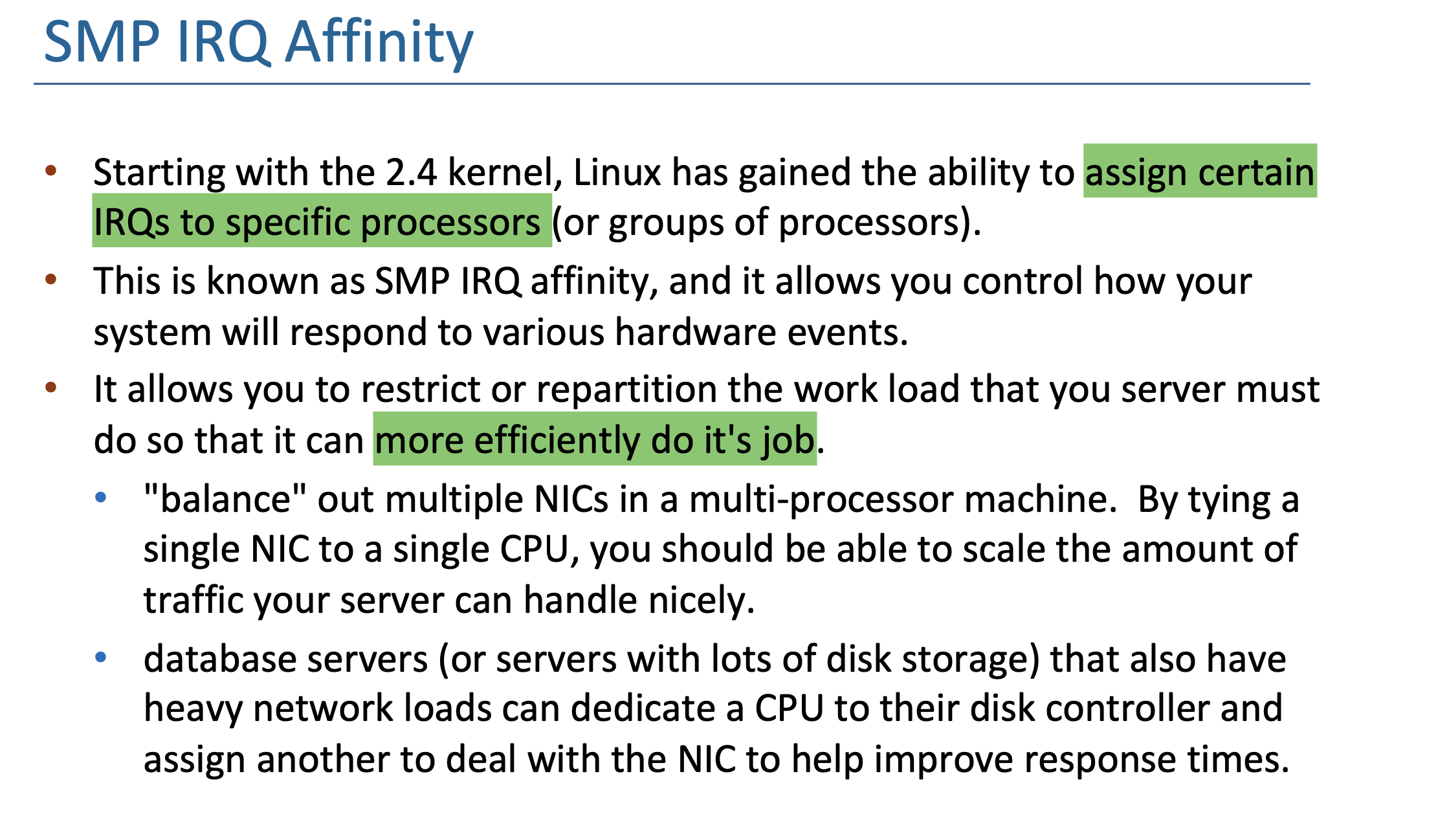

interrupts can also have CPU affinity

Polling vs. Interrupts

Use polling if Device is fast!!, CPU is relatively slow

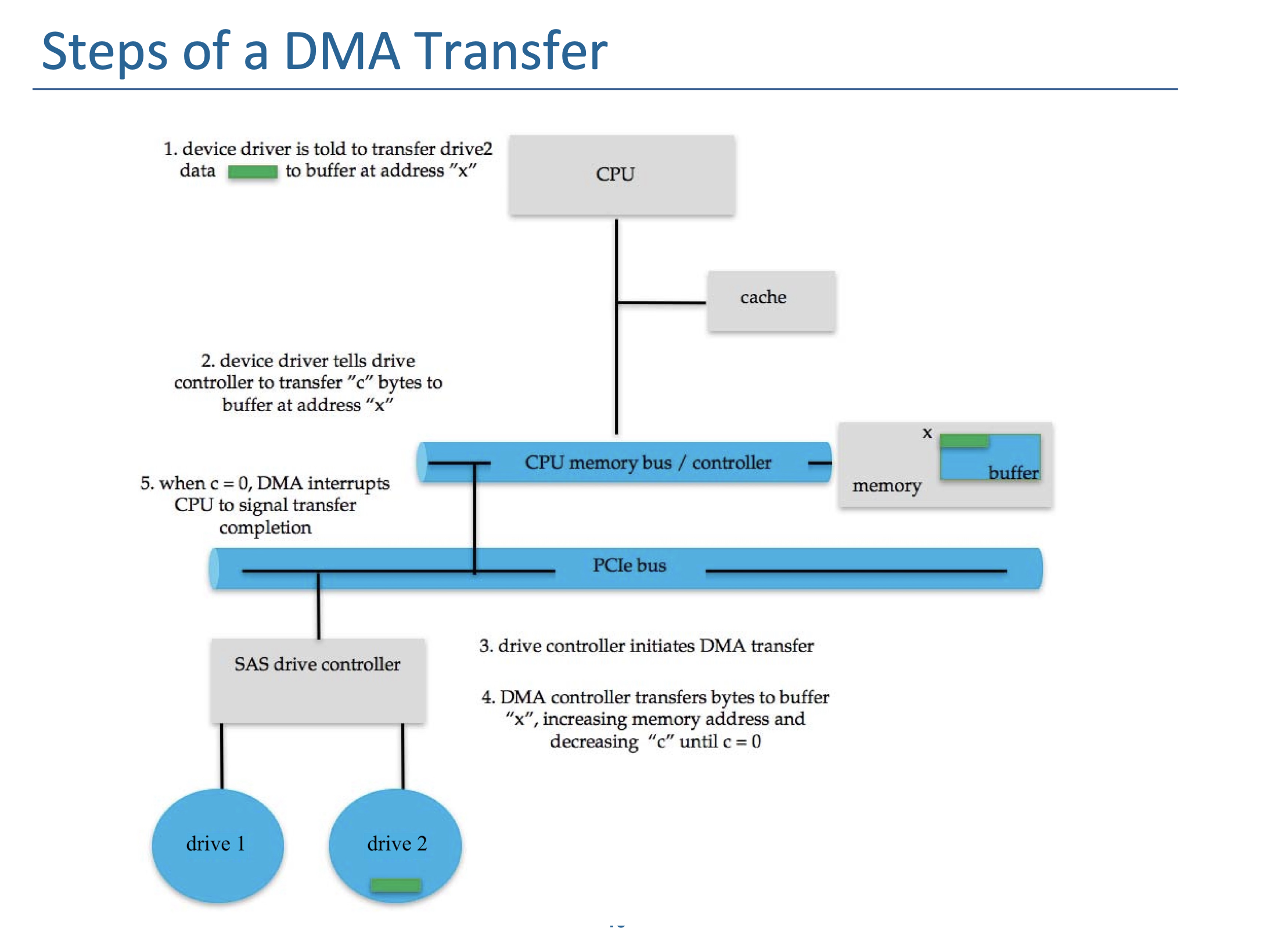

Direct Memory Access¶

Device driver runs on CPU! All Controller runs on Device!

DMA transfer data directly between I/O device and memory

OS only need to issue commands, data transfers bypass the CPU
No programmed I/O (one byte at a time), data transferred in large blocks
It requires DMA controller in the device or system

OS issues commands to the DMA controller

A command includes: operation, memory address for data, count of bytes…
Usually it is the pointer of the command written into the command register
When done, device interrupts CPU to signal completion

syscall ioctl can be used to control DMA controller

xPU access memory 算DMA吗？ -- 广义上，可以绕过CPU，可以算DMA

Application I/O Interface¶

I/O system calls encapsulate device behaviors in generic classes

in Linux, devices can be accessed as files; low-level access with ioctl

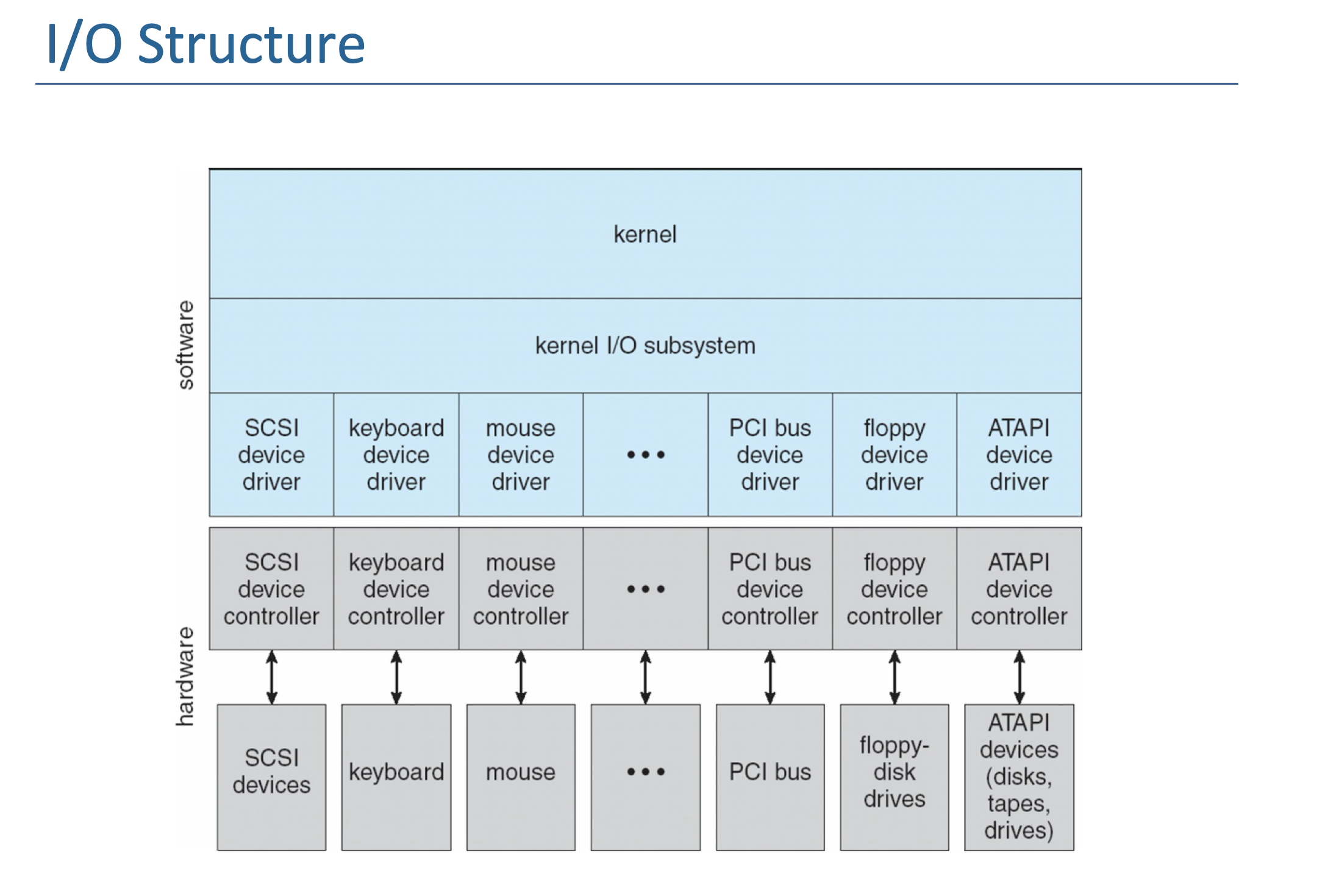

Device-driver layer hides differences among I/O controllers from kernel

each OS has its own I/O subsystem and device driver frameworks
new devices talking already-implemented protocols need no extra work

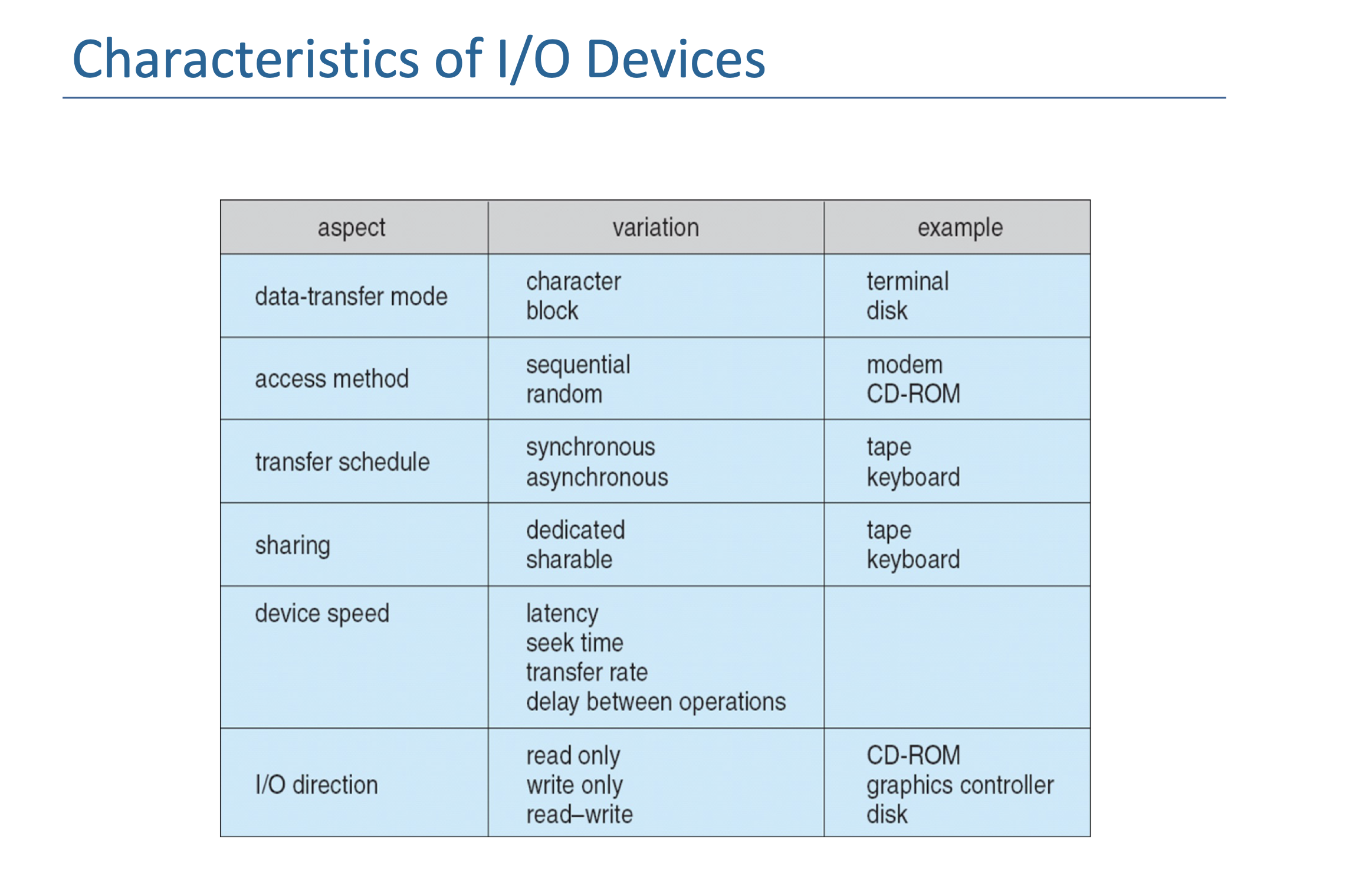

Characteristics of I/O Devices¶

Broadly, I/O devices can be grouped by the OS into

block I/O: read, write, seek
character I/O (Stream)
memory-mapped file access
network sockets
OSs have usually an escape/back door that passes any IO

commands from app to device

Linux’s ioctl call to send commands to a device driver

Block devices access data in blocks, such as disk drives…

commands include read, write, seek
raw I/O, direct I/O, or file-system access
memory-mapped file access possible (e.g., memory-mapped files)
DMA

Character devices include keyboards, mice, serial ports…

very diverse types of devices

Popular interface for network access is the socket interface

it separates network protocol from detailed network operation
some non-network operations are implemented as sockets
e.g., Unix socket

Clocks and timers can be considered as character devices

very important devices as they provide current time, elapsed time, timer
Normal resolution about 1/60 second, some OS provides higher-resolution ones

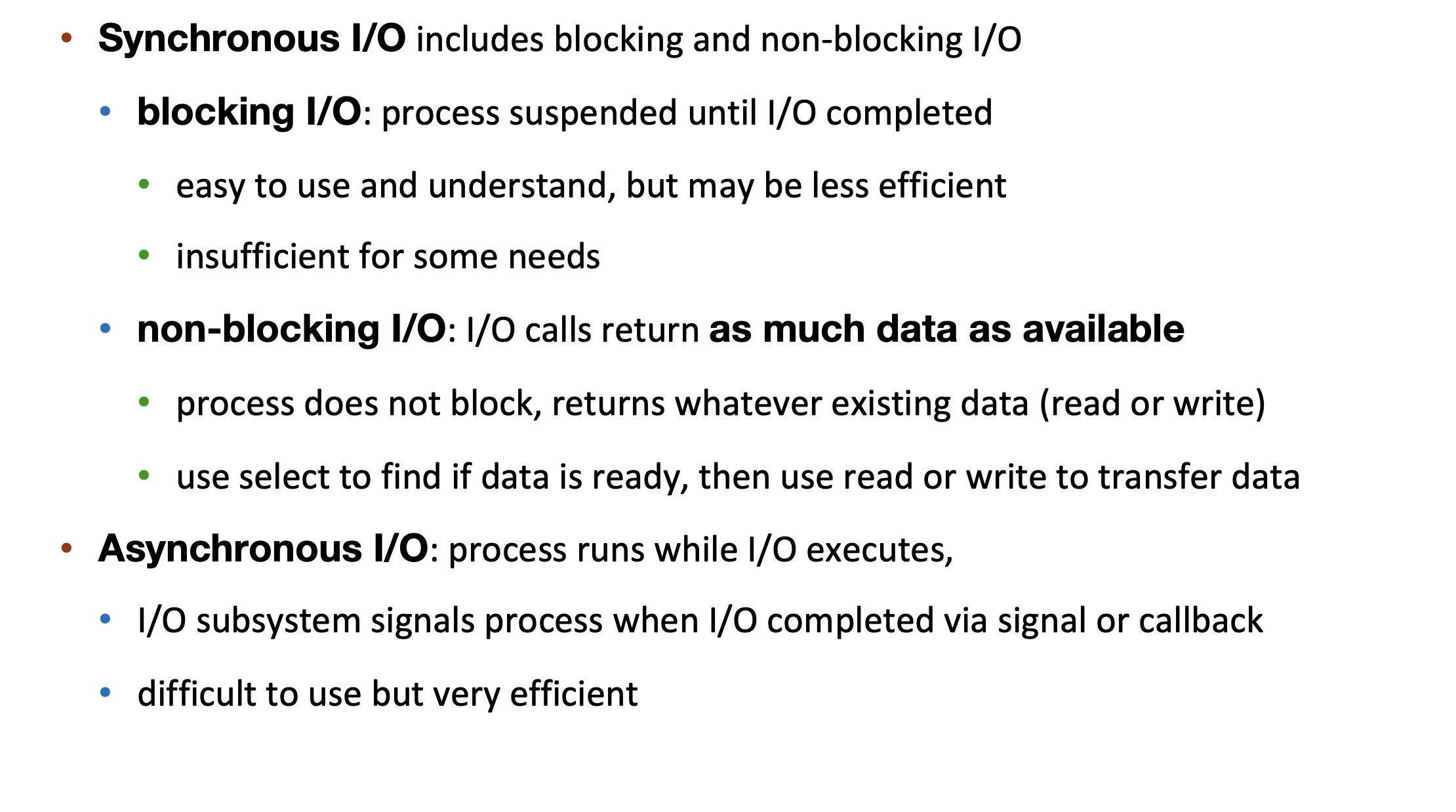

Synchronous/Asynchronous I/O¶

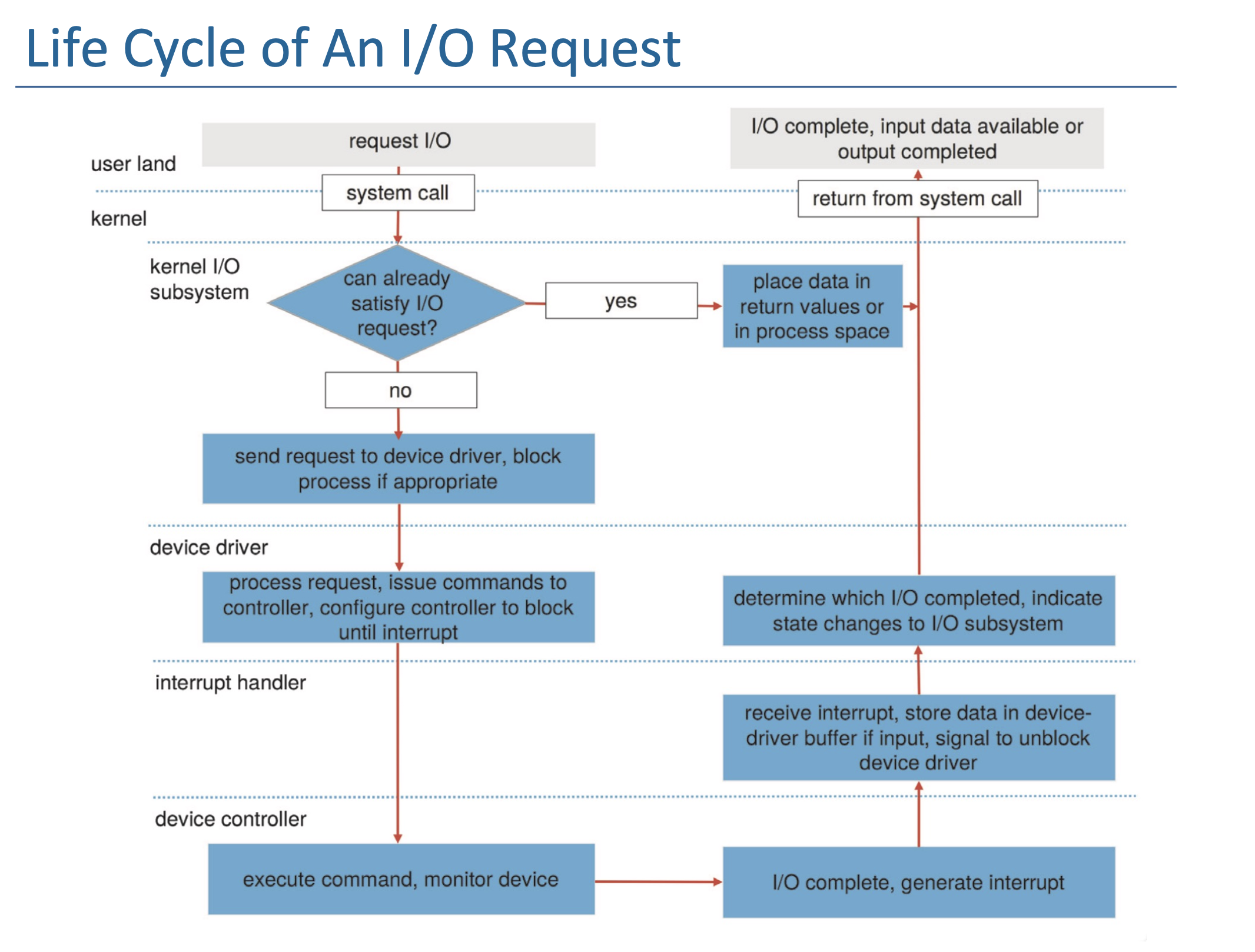

Kernel I/O Subsystem and other see slides!

I/O Protection¶

OS needs to protect I/O devices

e.g., keystrokes can be stolen by a keylogger if keyboard is not protected
always assume user may attempt to obtain illegal I/O access

To protect I/O devices:

define all I/O instructions to be privileged
I/O must be performed via system calls
memory-mapped I/O and I/O ports must be protected too

UNIX I/O Kernel Structure¶

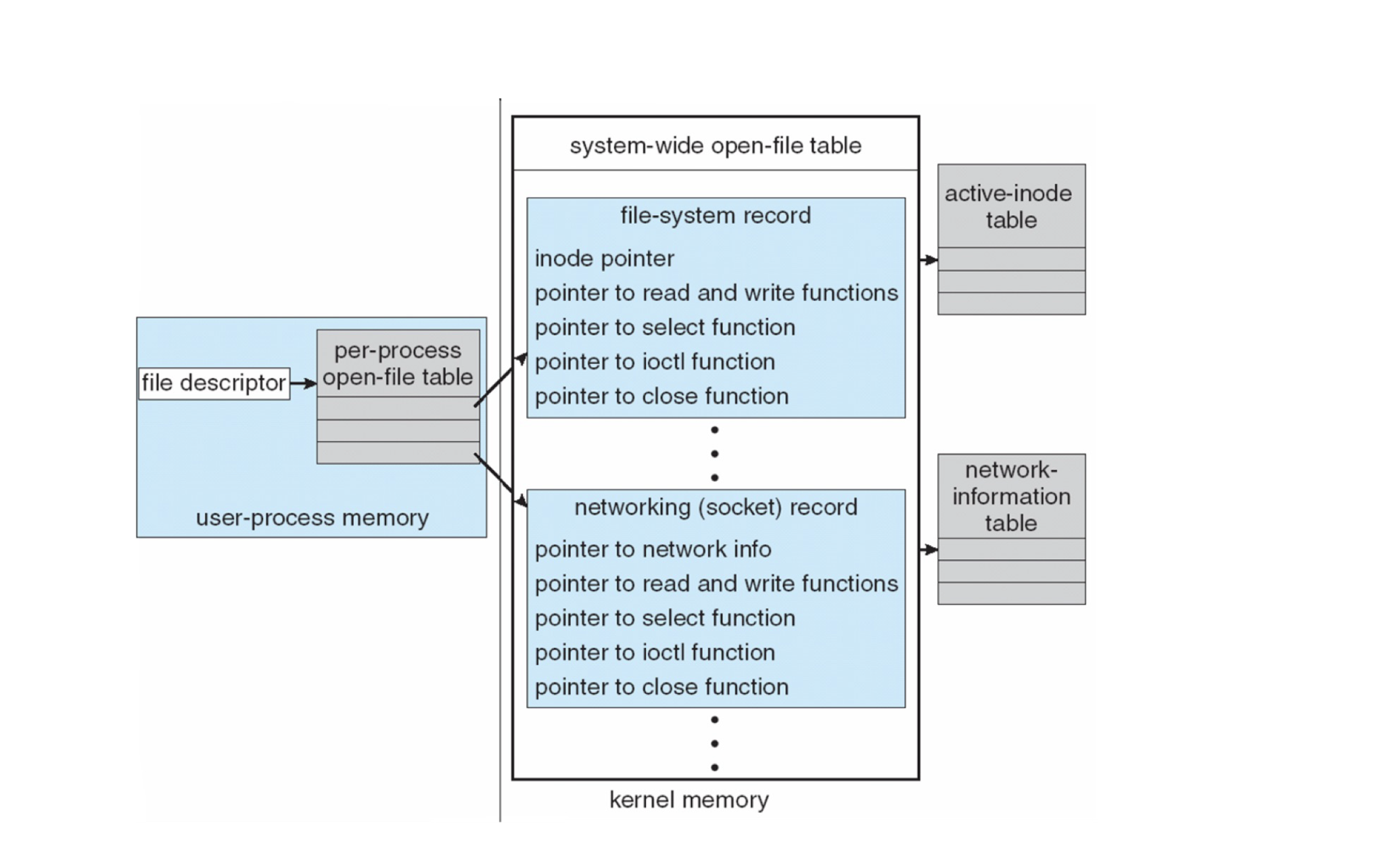

Everything in linux is a file -- convenient for file's open, close, read, write 的接口

File Descriptor Table -- In Process Control Block

Performance¶

I/O is a major factor in system performance:

CPU to execute device driver, kernel I/O code
context switches due to interrupts
data buffering and copying

network traffic especially stressful

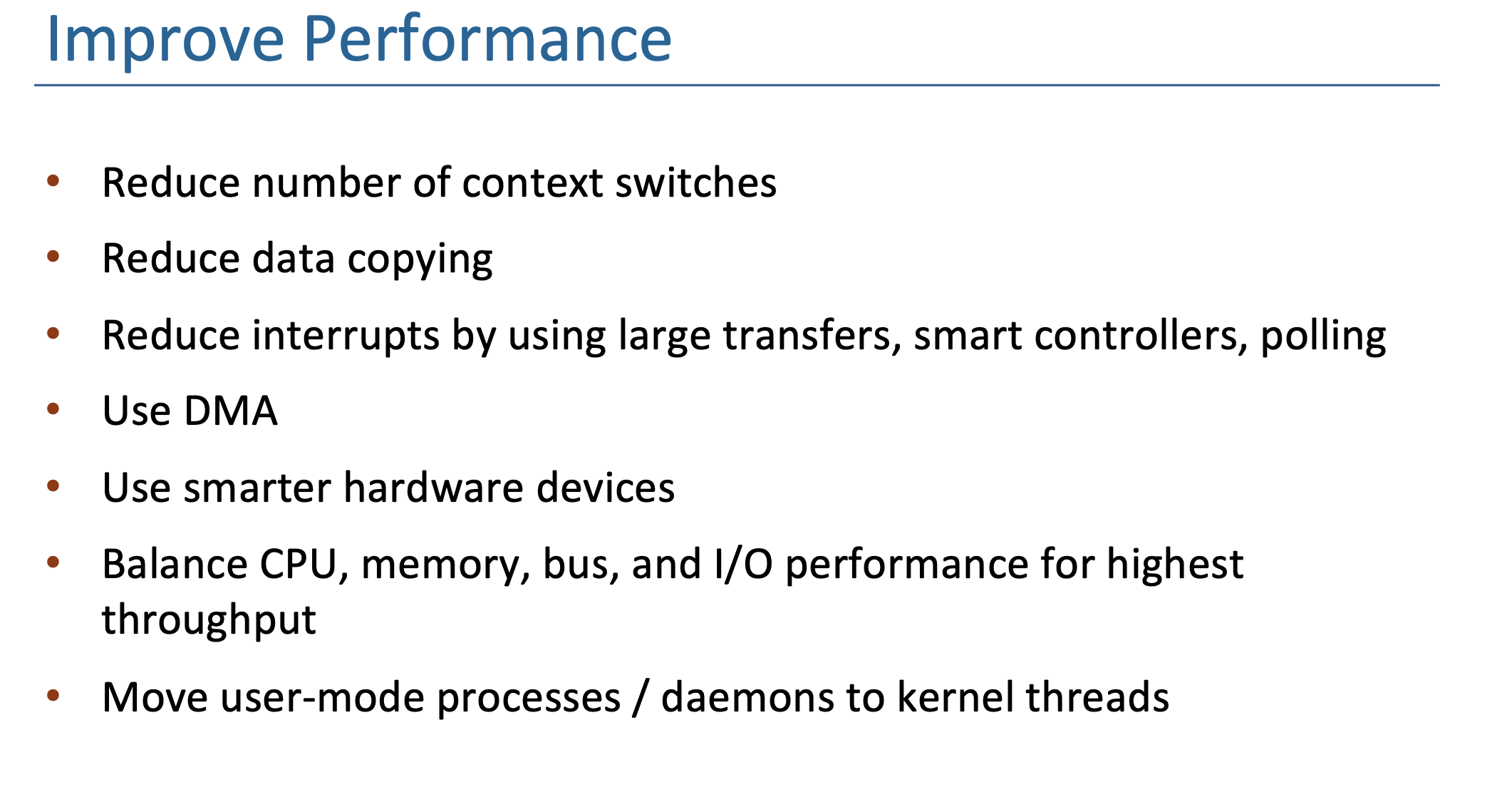

Example see slides!

每个IO device注册成文件的时候会明确其需要对应的函数
