Lecture 15 -- Security and Protection¶

Linux : 90/91

Common Concepts¶

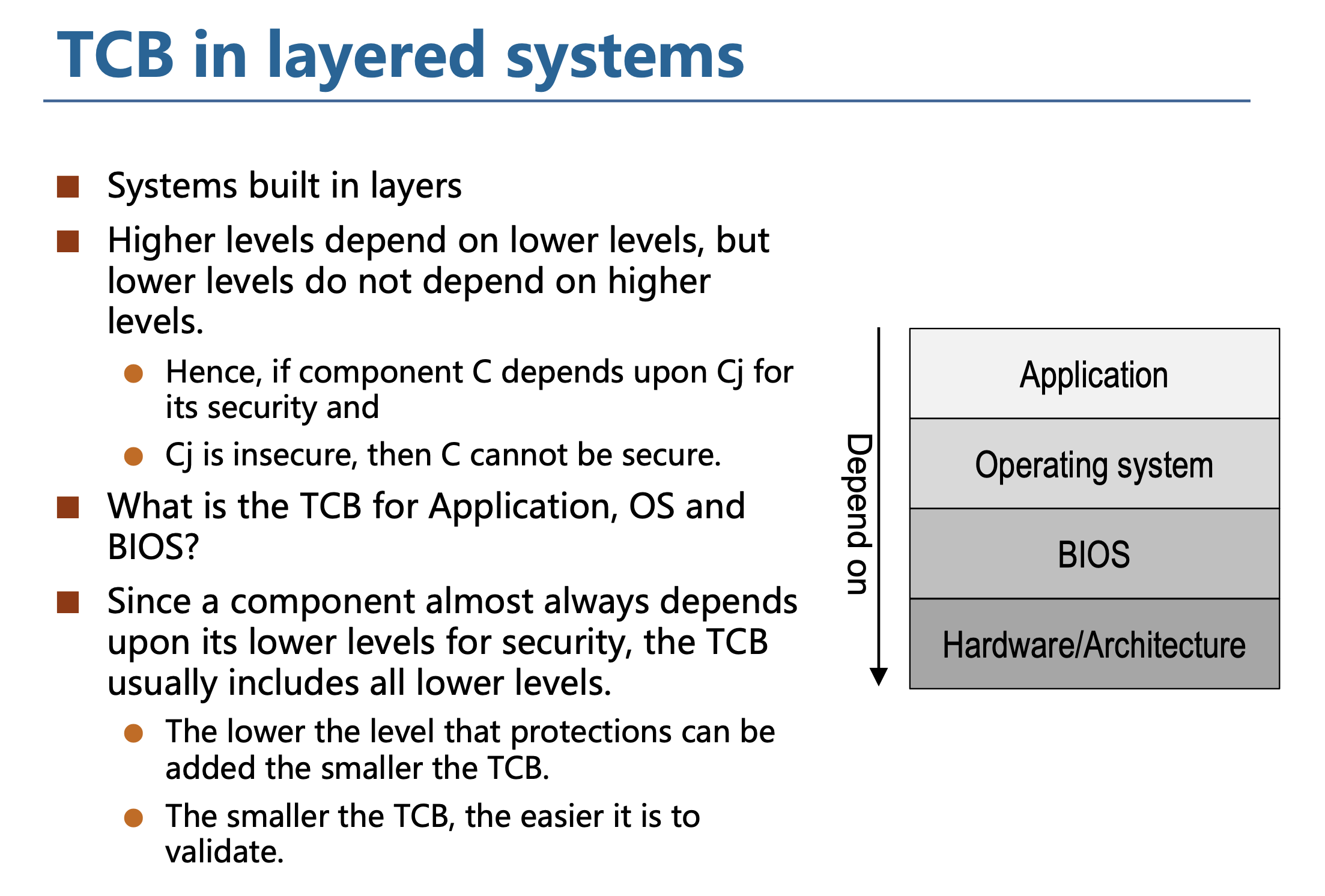

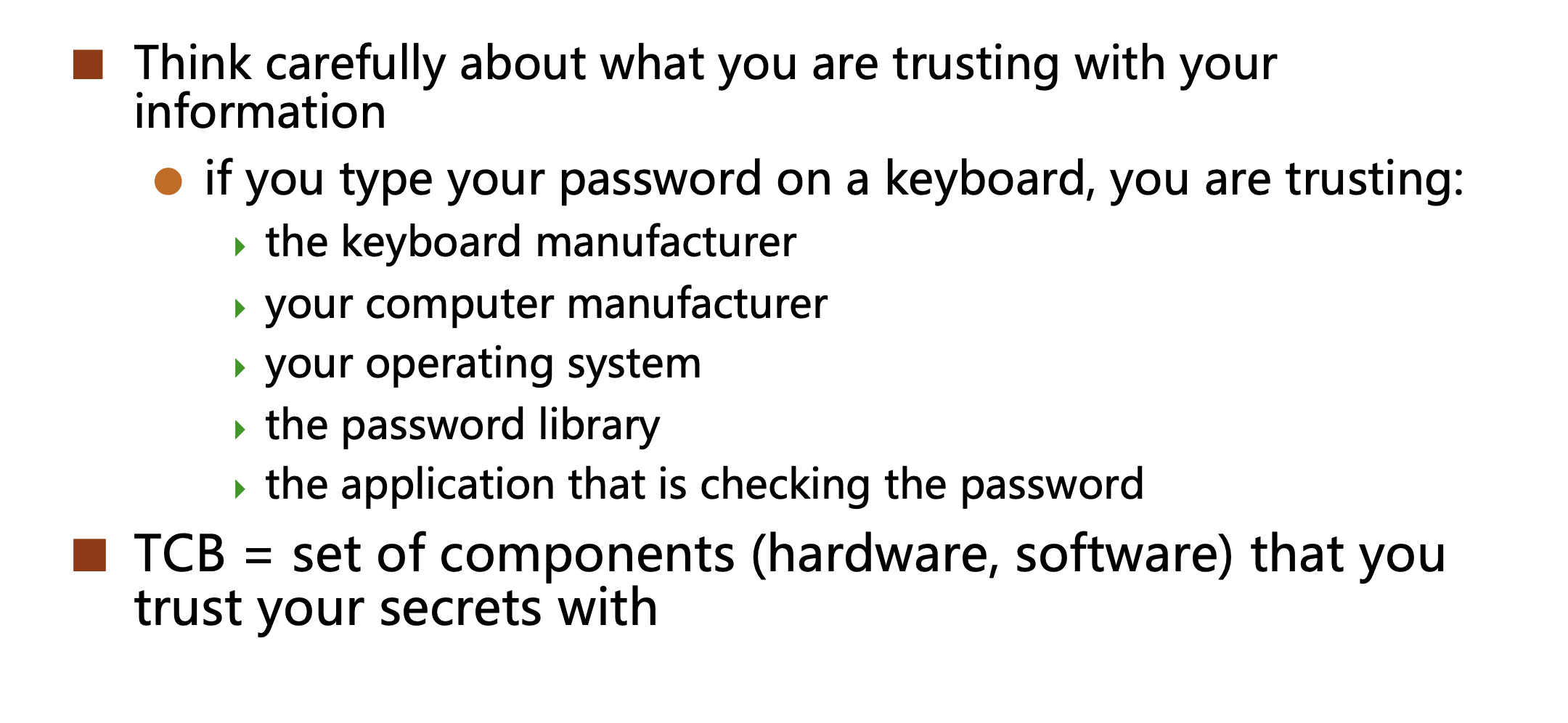

Trusted computing base (TCB)¶

TCB issues * The larger the TCB is, the more difficult it is to make it secure. * The TCB should be as simple as possible 1. Minimize misuse 2. Enable better verification

Attacking Surface¶

The attack surface is the number of all possible points, or attack vectors, where an unauthorized user can access a system and extract data.

The smaller the attack surface, the easier it is to protect.

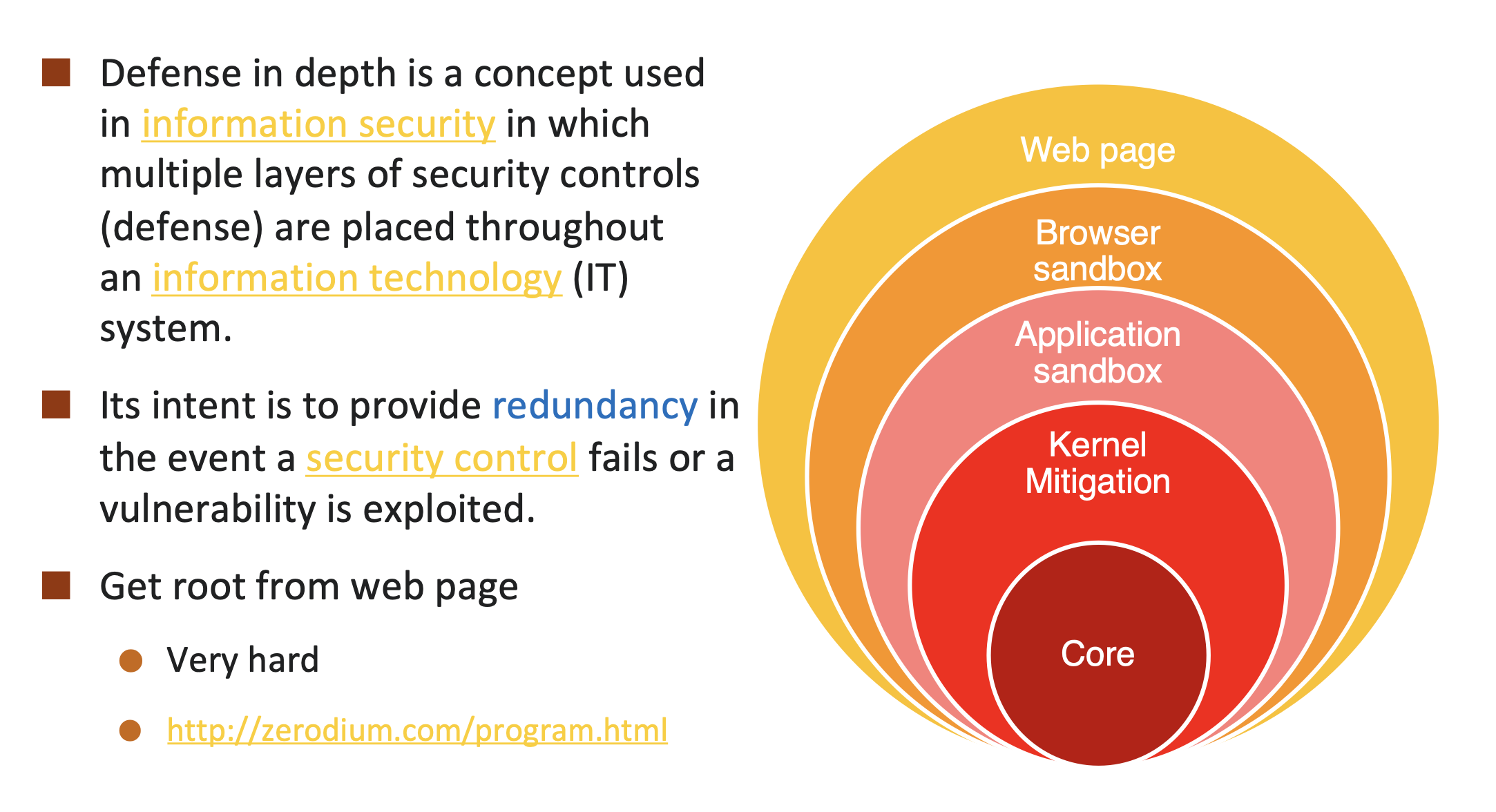

Defense in Depth¶

Protection - Access Control¶

Authentication¶

Identify the user

Authorization¶

Determine what access users and programs have to things

Access Control Matrix

| Object | User1 | User2 | User3 |
|--------|-------|-------|-------|
| File1  |  R,W  |  R    |       |
| File2  |  R    |  R,W  |  R    |
| File3  |  R,W  |  R,W  |  R,W  |
...

Problem: The matrix is too large to be stored in memory.

Role-based access control (RBAC)¶

Each user is assigned to a role, and each role is assigned a set of permissions.

OSIX的文件权限

Users can be assigned to three types of roles: 文件拥有者、文件拥有组、其他用户组

每个文件只需要用9个bit即可：3种权限（读-写-执行） x 3 类用户

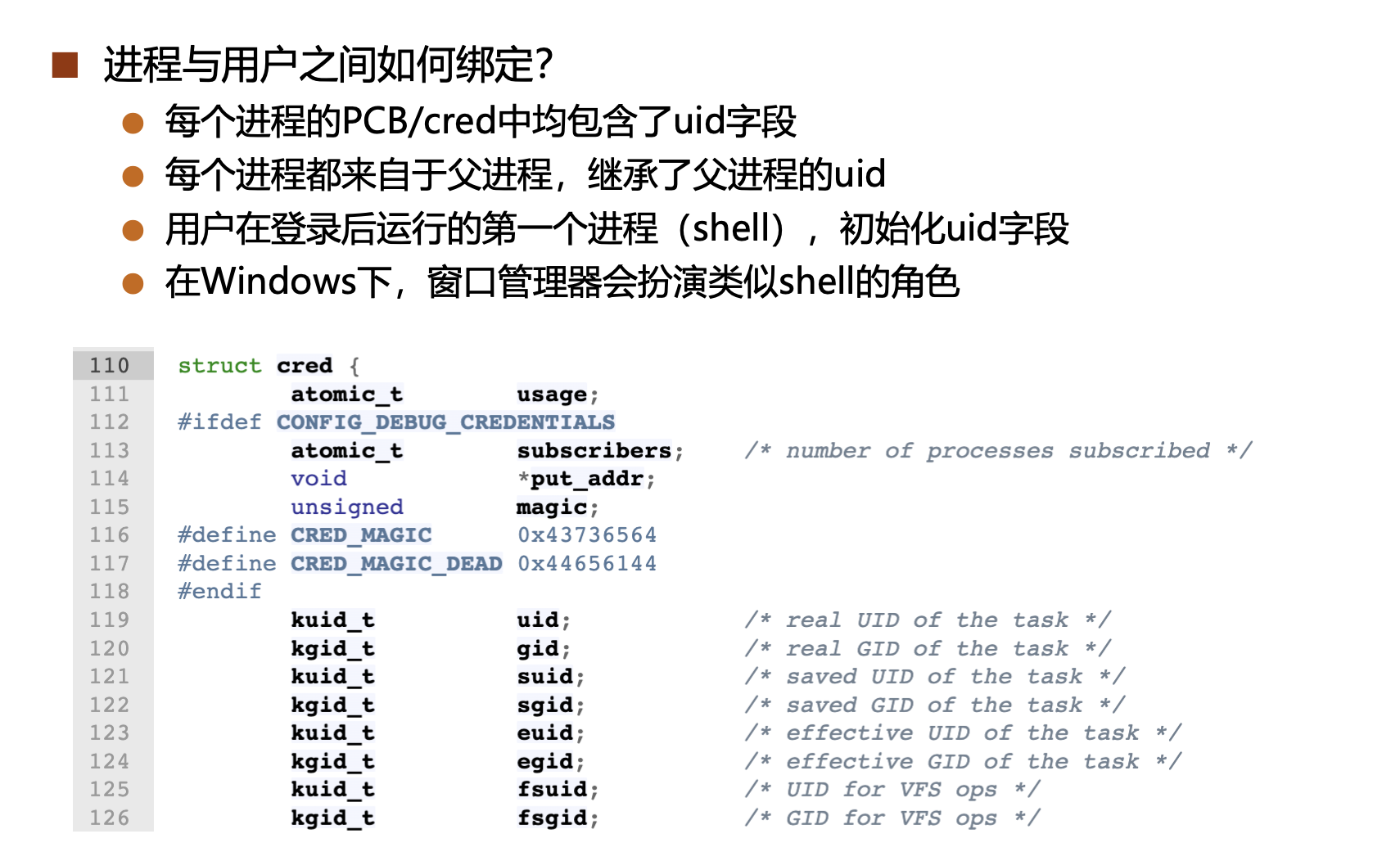

何时检查用户权限？

每次打开文件时，进行权限检查和授权 1. open()包含可读/可写的参数，OS根据用户组进行检查 2. 引入fd，记录本次打开权限（授权），作为后续操作的参数
每次操作文件时，根据fd信息进行检查

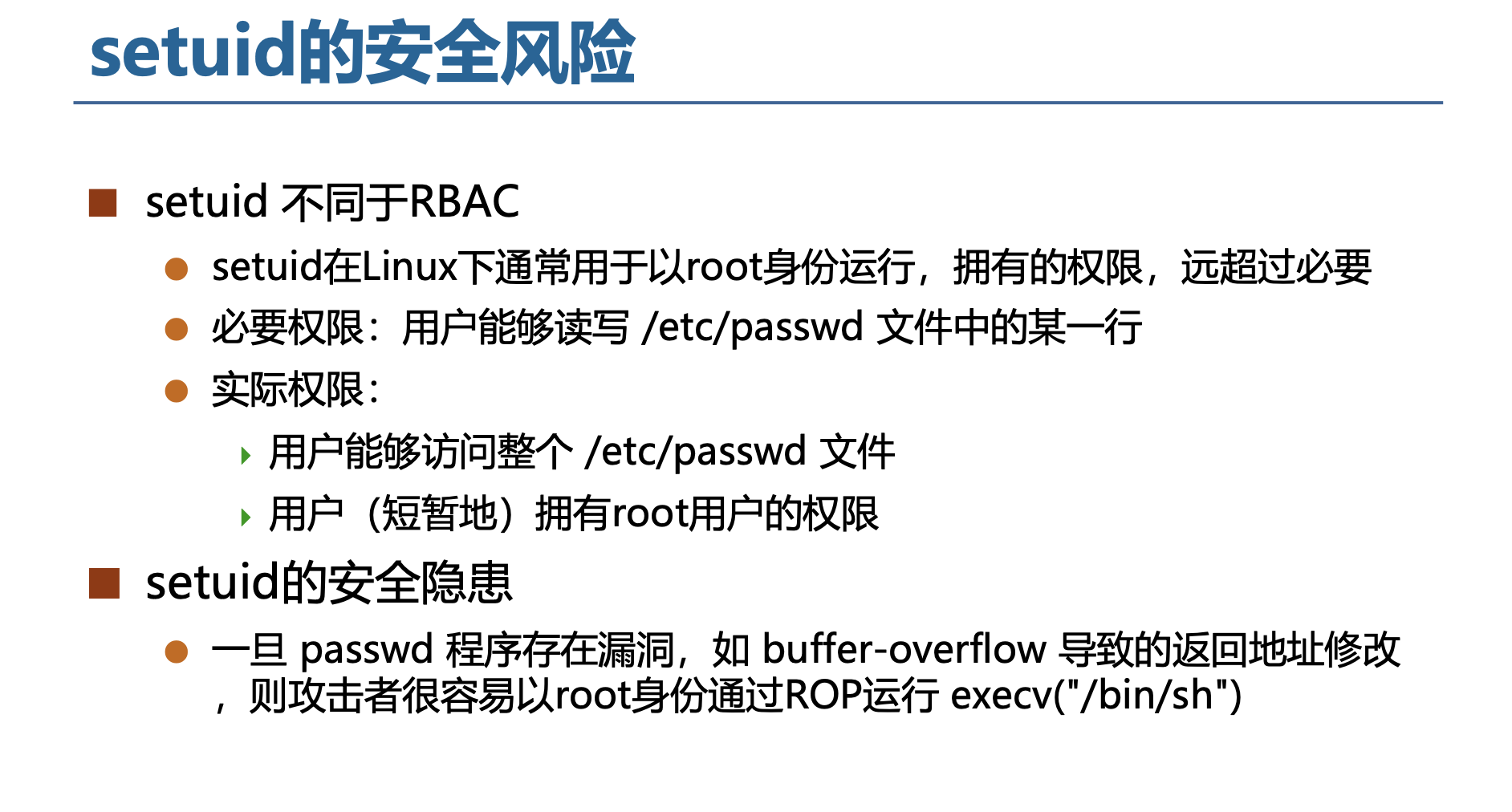

setuid¶

passwd in /etc/shadow Linux
Only root can read/write
passwd is setuid root
passwd can read/write /etc/shadow

How to ensure that passwd is not modified by a malicious user [When it is given the root privilege]?

SUID: 在passwd的inode中增加一个SUID位，使得用户仅在执行该程序时才会被提权，执行完后恢复，从而将进程提权的时间降至最小
1. su
2. passwd
passwd程序本身的逻辑会保证某一个用户只能修改其自身的密码

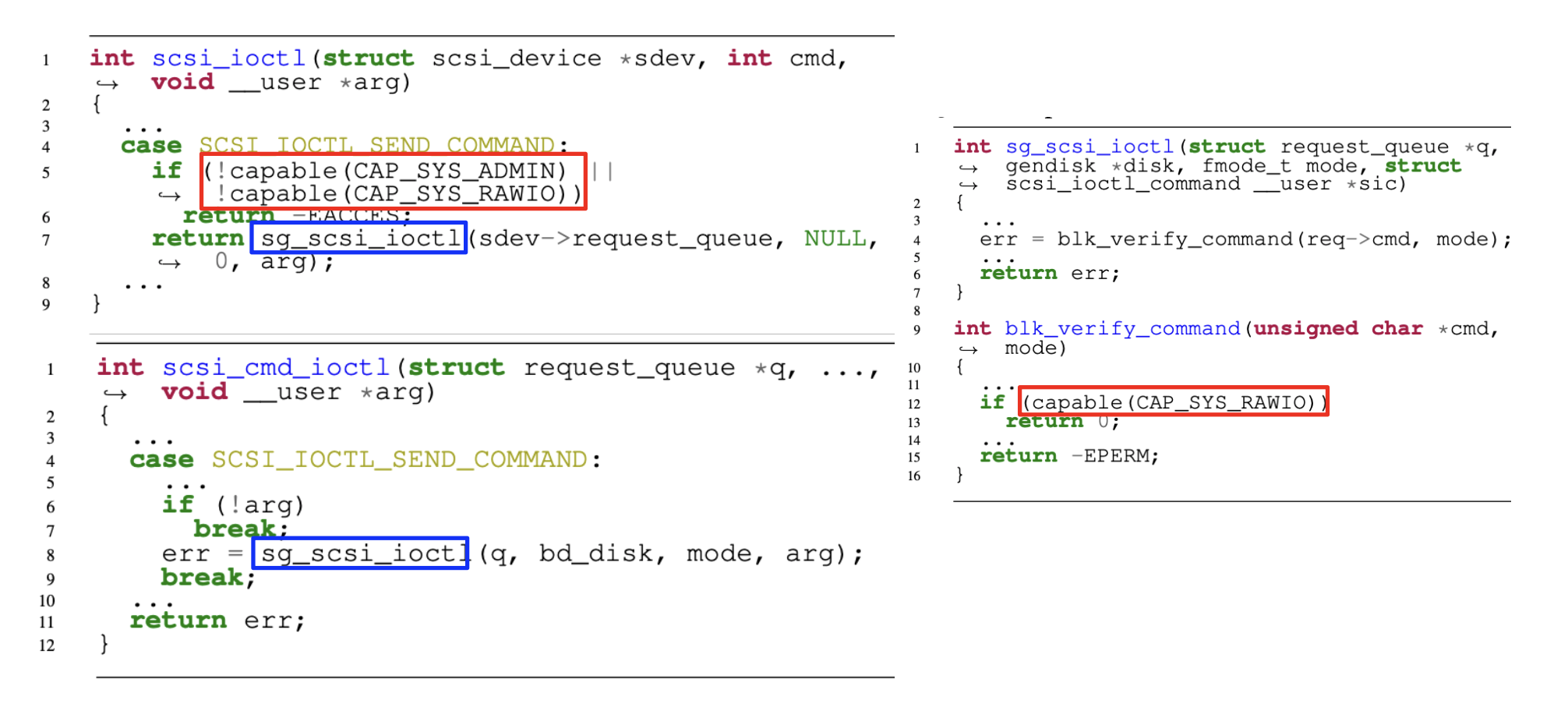

Capabilities¶

提供细粒度控制进程的权限：基本的思想是把root的能力拆分，分为几十个小的能力，称为capability

Drawback:

理想状态：41个capabilities均分 root能力
现实：CAP_SYS_ADMIN 占据了⅓的 permission checks
New Root

使用混乱

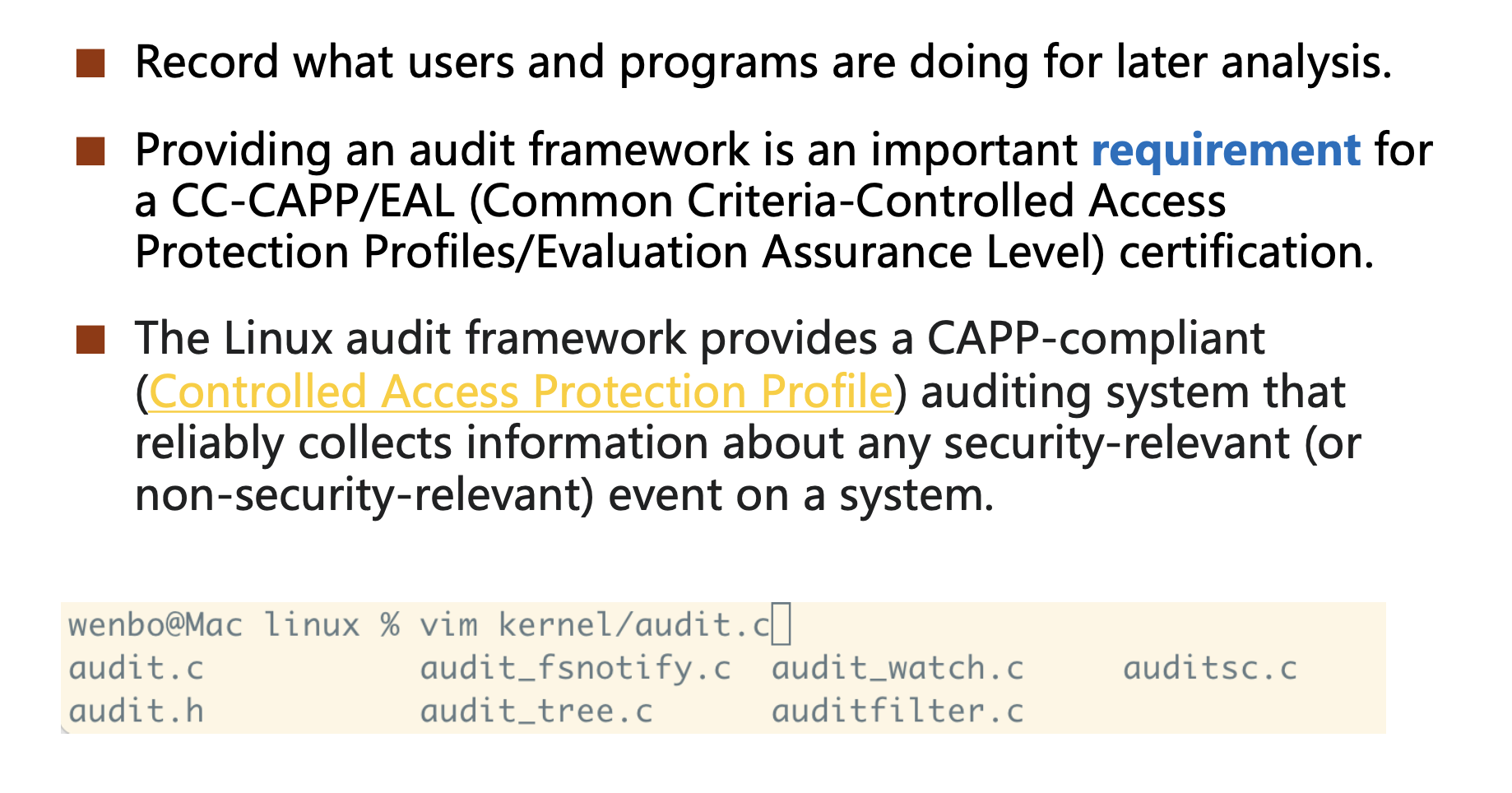

Auditing¶

Record what users and programs are doing for later analysis

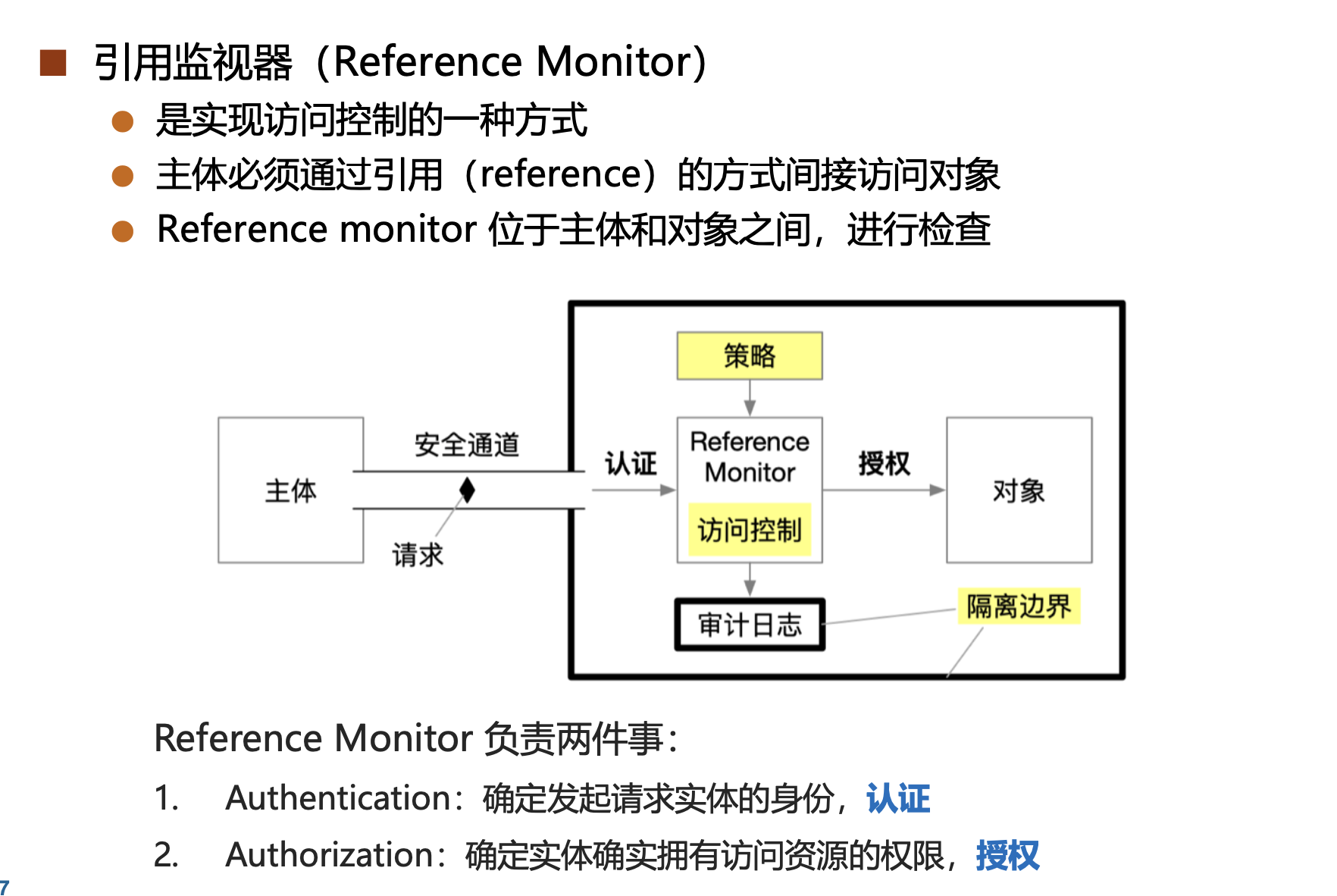

Reference monitor¶

引用监视器机制必须保证其不可被绕过(Non-bypassable)。
设计者必须充分考虑应用访问对象的所有可能路径，并保证所有路径都必须通过引用才能进行。 1. 例如，应用必须通过文件描述符来访问文件，而无法直接访问磁盘上的数据或通过 inode 号来访问文件数据。文件系统此时就是引用监视器，文件描述符就是引用。

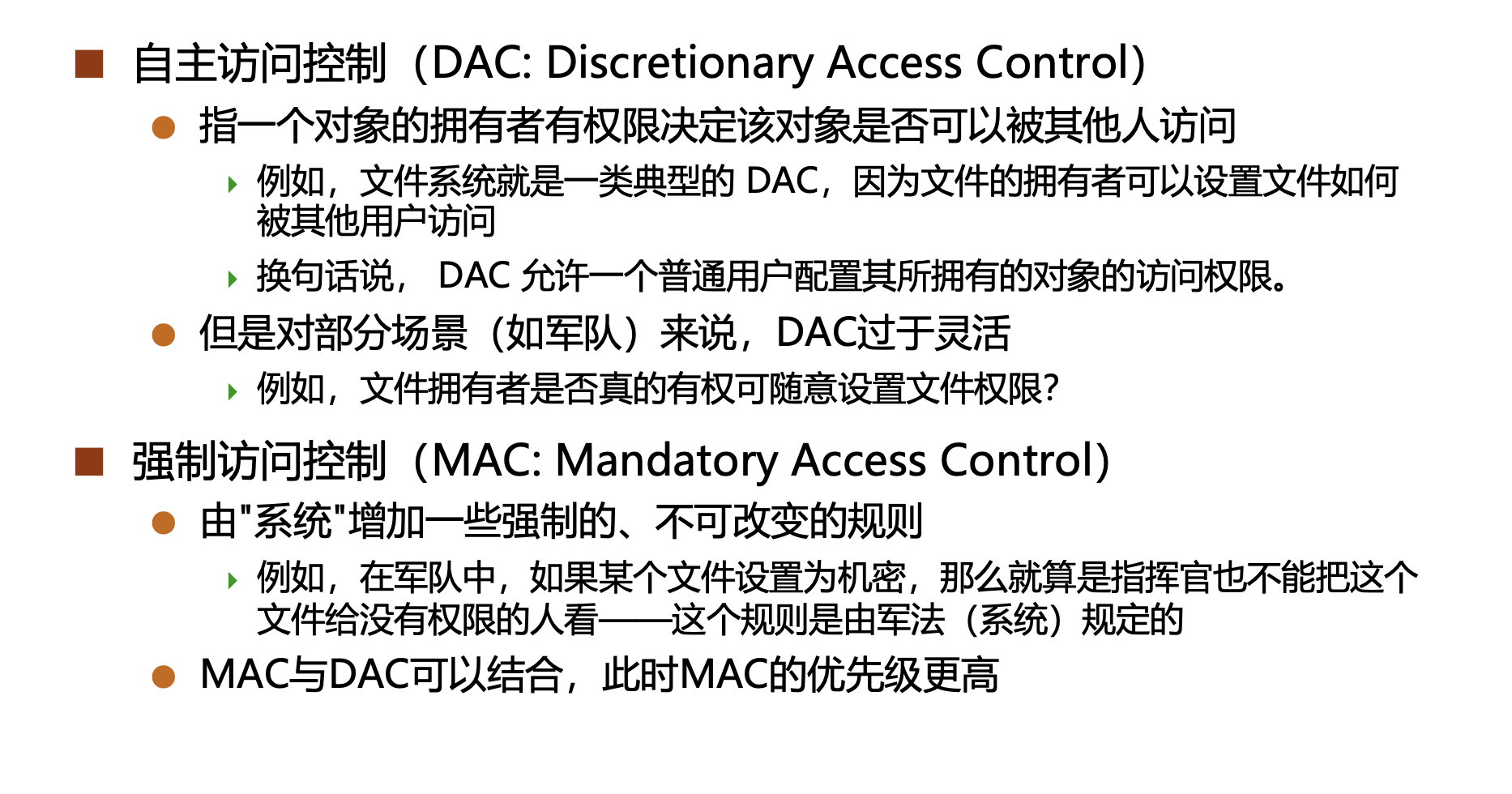

DAC and MAC¶

Security¶

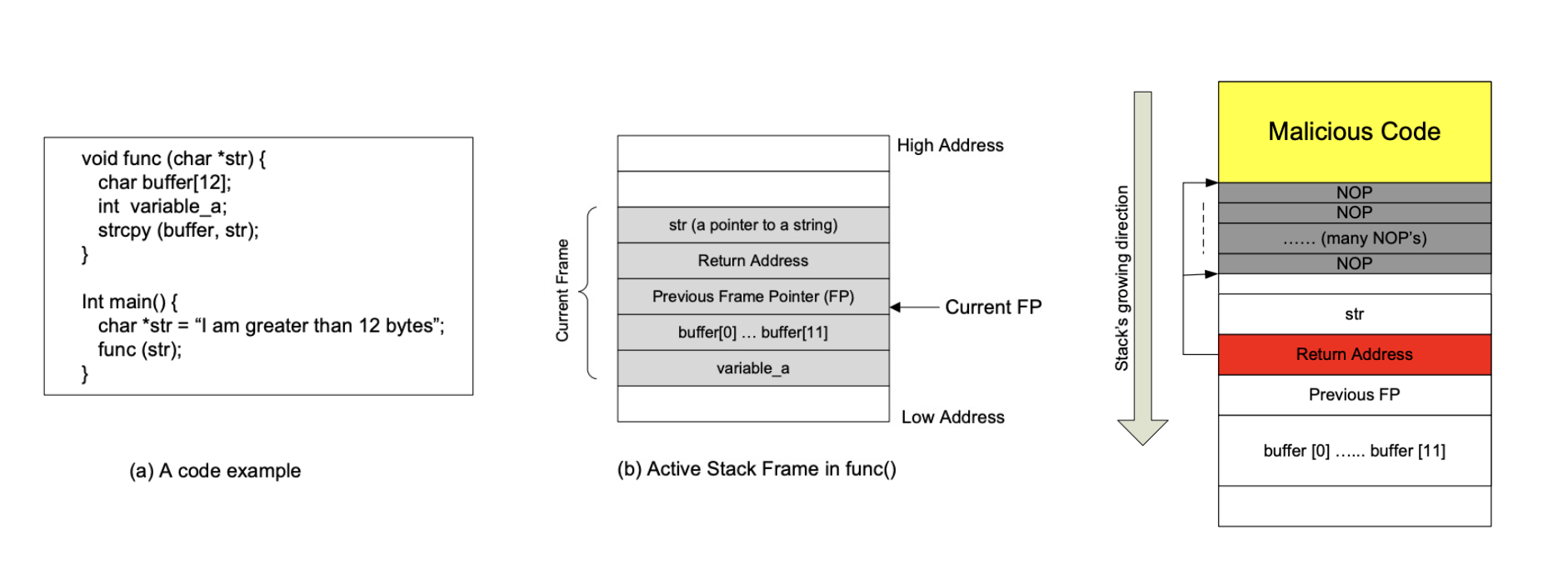

Code injection attack¶

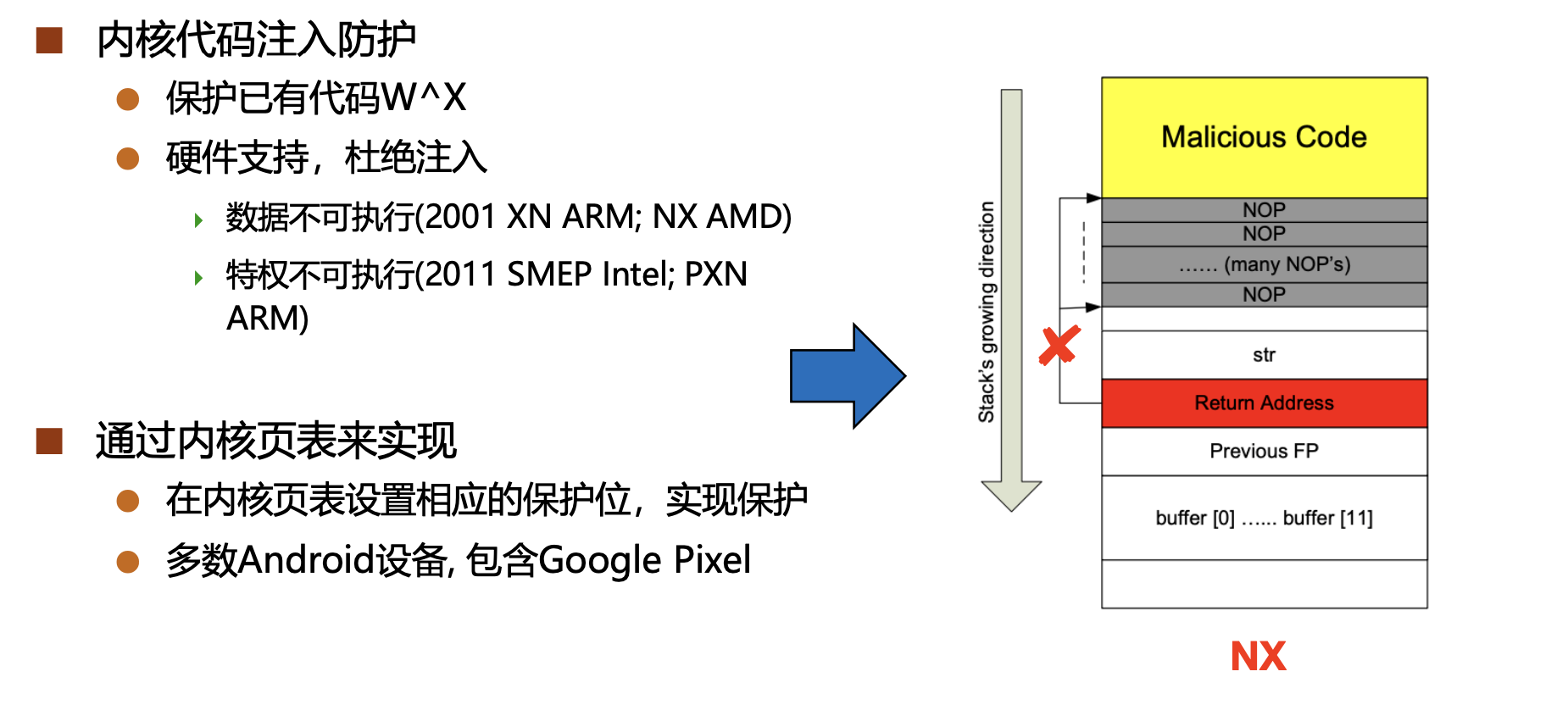

图1buffer在栈分配，攻击者overflow -- 通过禁止栈的x权限来防护

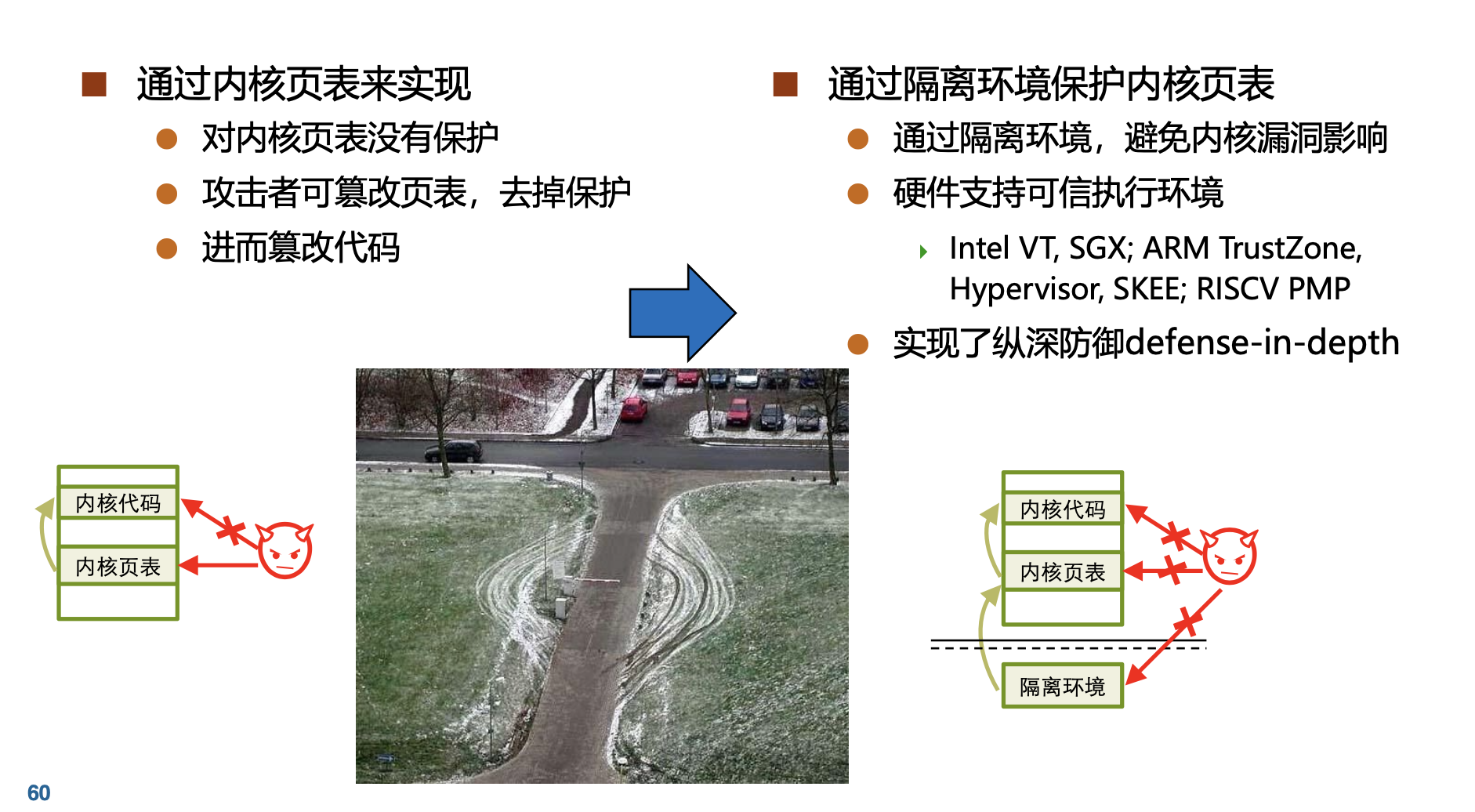

但是可以通过先攻击页表来解决

Code reuse attack¶

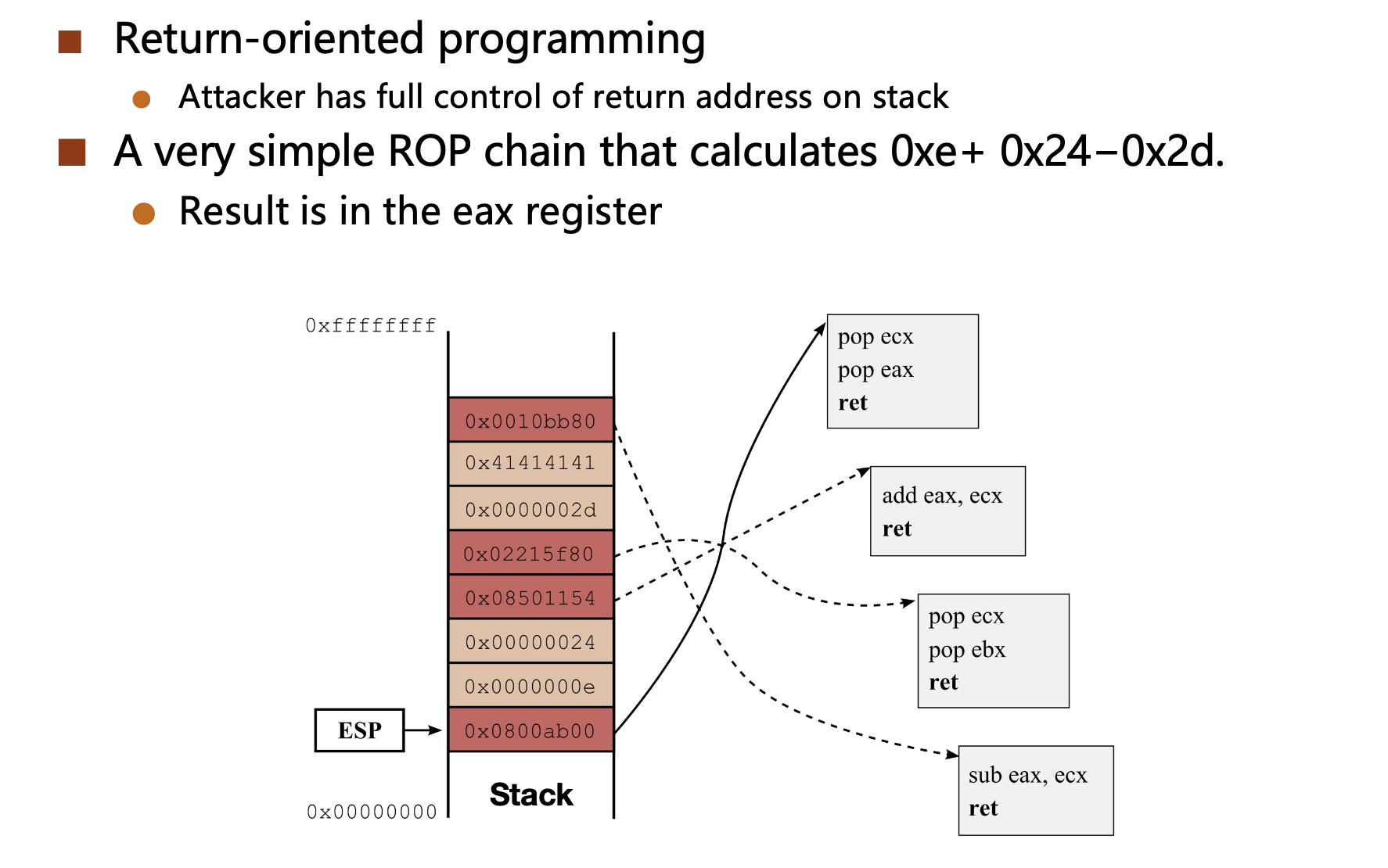

ROP Attack¶

ROP (Return-Oriented Programming) attack is a type of code reuse attack. It manipulates the stack to execute existing code in the program.

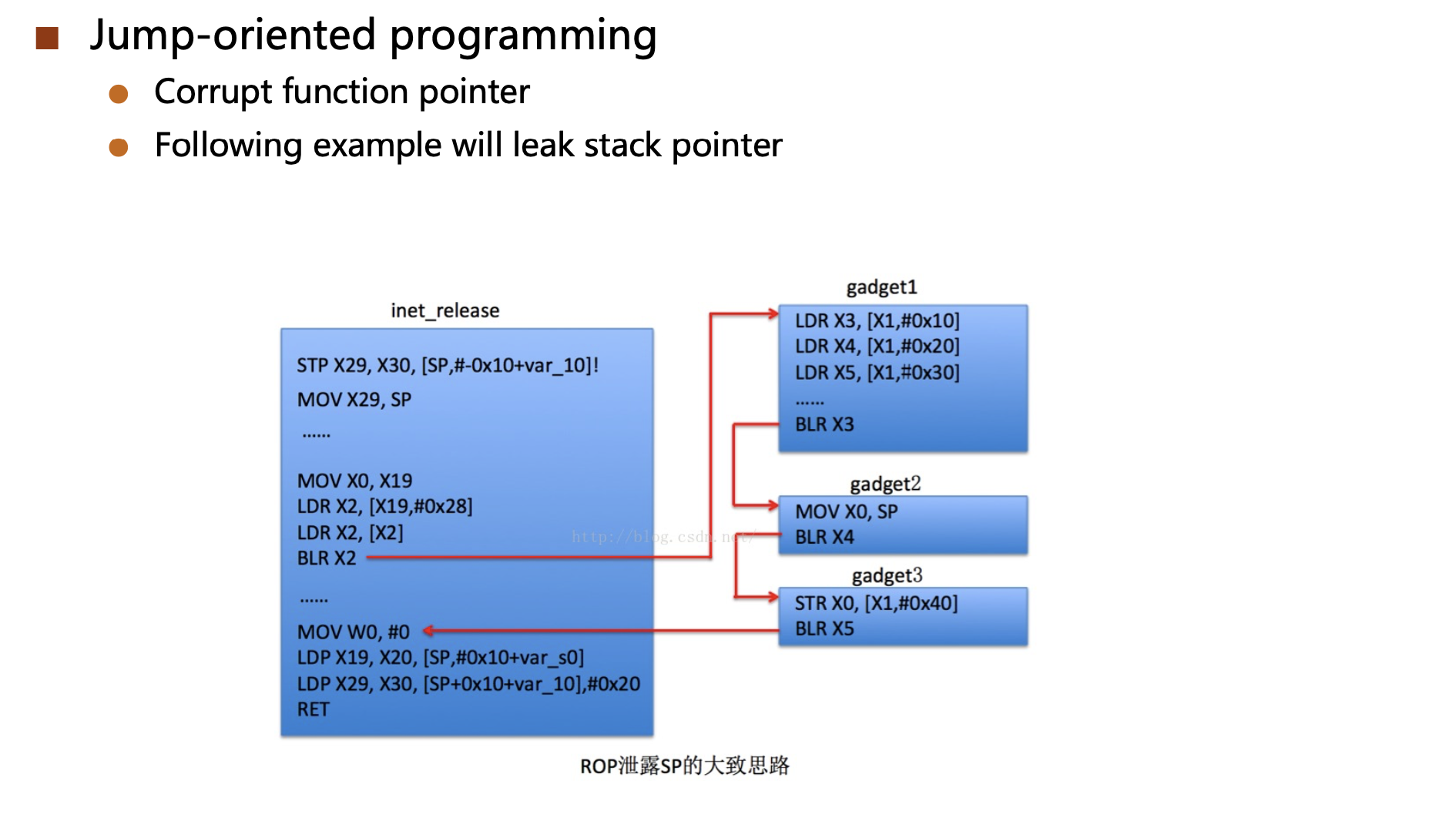

JOP Attack¶

JOP (Jump-Oriented Programming) attack is a type of code reuse attack. It manipulates the stack to execute existing code in the program.

防护

保护返回地址
保护函数指针

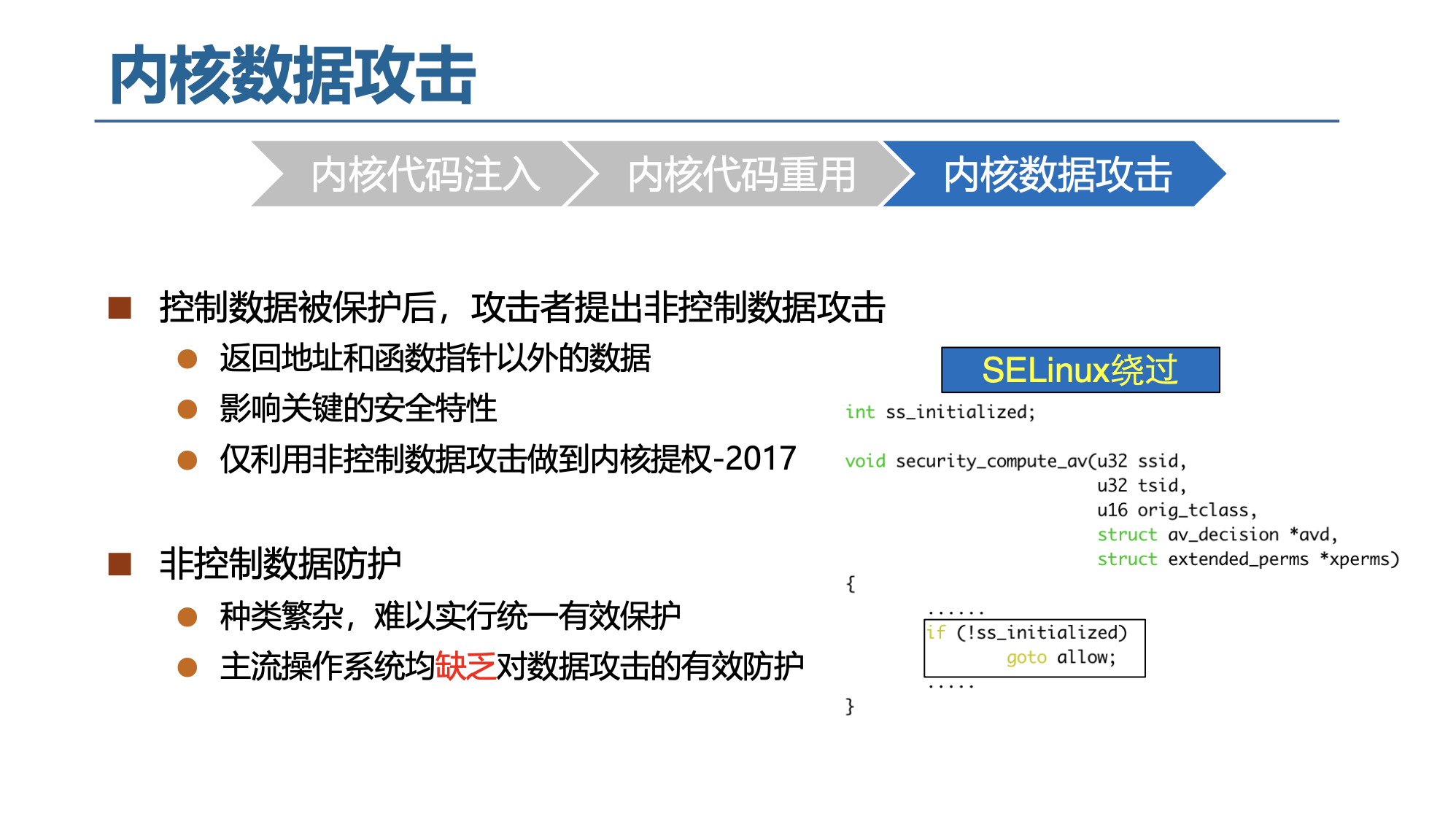

Non-control-data attack¶

int ss_initialized;
{
  ...
  if(!ss_initialized) {
    goto allow;
  }
  ...
}

通过修改ss_initialized = 0直接goto
