Lecture 9 - Deadlocks¶

Conditions for Deadlocks¶

Mutual exclusion: a resource can only be used by one process at a time
Hold and wait: a process holding at least one resource is waiting to acquire additional resources held by other processes
No preemption: a resource can be released only voluntarily by the process holding it, after it has completed its task
Circular wait: there exists a set of waiting processes {P0, P1, …, Pn}

P0 is waiting for a resource that is held by P1

P1 is waiting for a resource that is held by P2…

Pn–1 is waiting for a resource that is held by Pn

Pn is waiting for a resource that is held by P0

Circular wait does not imply deadlock, but it is a necessary condition.

Solutions to Deadlocks¶

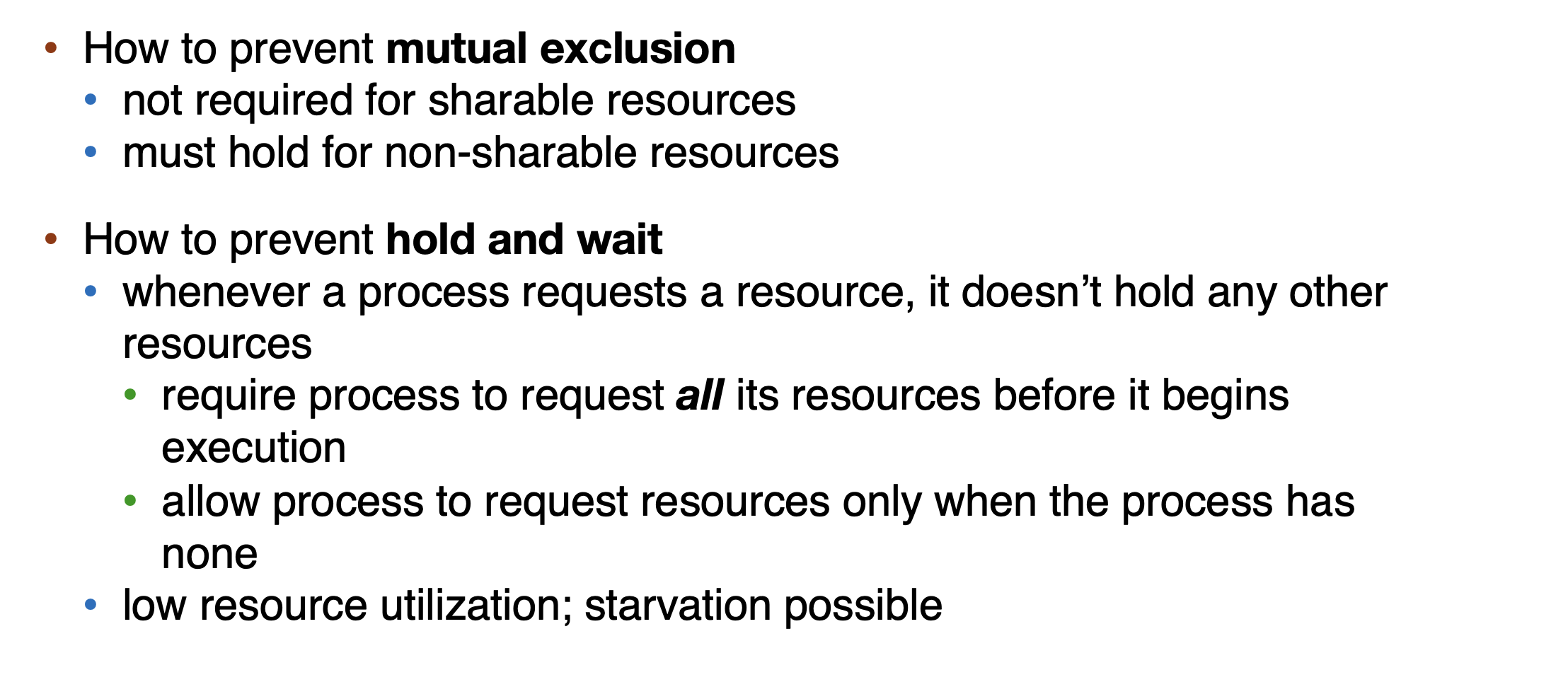

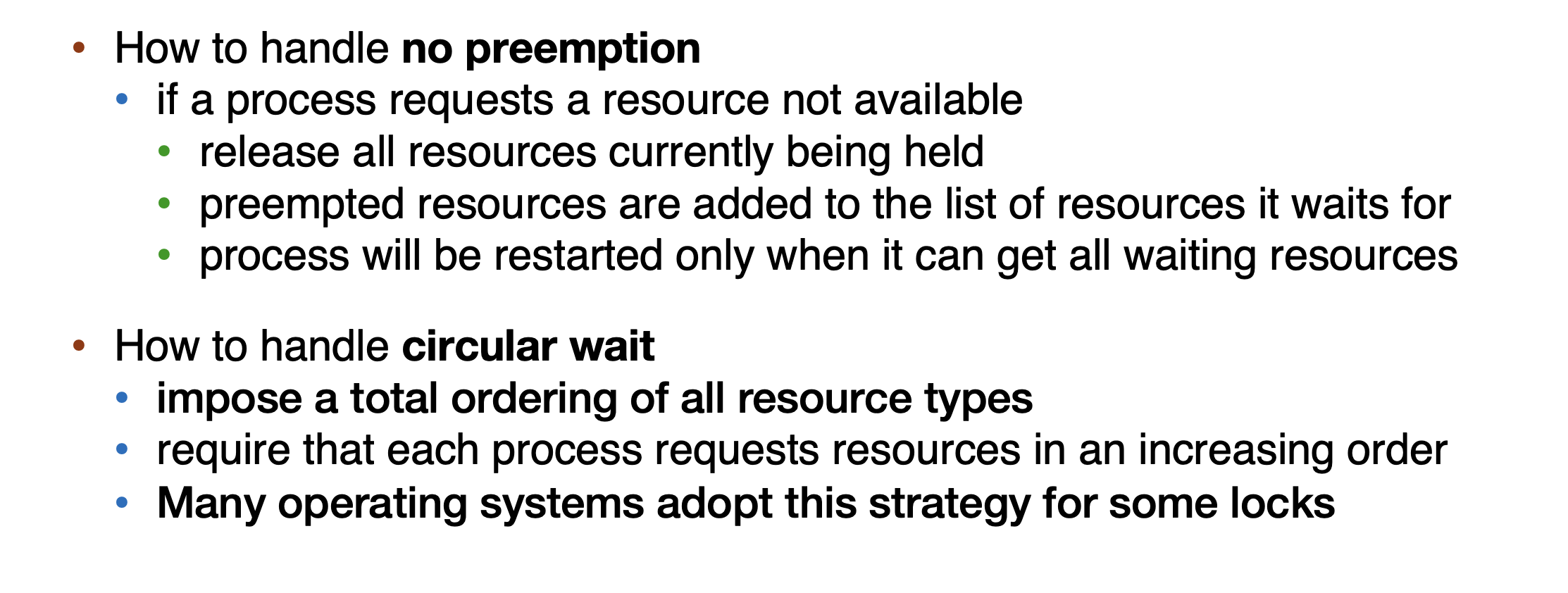

Deadlock Prevention¶

For Circular Wait [More Specifically]¶

Invalidating the circular wait condition is most common.
Simply assign each resource (i.e. mutex locks) a unique number.
Resources must be acquired in order.

/* thread one runs in this function */
void *do_work_one(void *param){
    pthread_mutex_lock(&first_mutex);
    pthread_mutex_lock(&second_mutex);
    /* Do some work*/
    pthread_mutex_unlock(&second_mutex);
    pthread_mutex_unlock(&first_mutex);
    pthread_exit(0);
}
/* thread two runs in this function */
void *do_work_two(void *param){
    pthread_mutex_lock(&second_mutex);
    pthread_mutex_lock(&first_mutex);
    /* Do some work*/
    pthread_mutex_unlock(&first_mutex);
    pthread_mutex_unlock(&second_mutex);
    pthread_exit(0);
}

We can not use the above code as it will lead to deadlock.
change the order of mutex locks in one of the threads.

/* thread one runs in this function */
void *do_work_one(void *param){
    pthread_mutex_lock(&first_mutex);
    pthread_mutex_lock(&second_mutex
    /* Do some work*/
    pthread_mutex_unlock(&second_mutex);
    pthread_mutex_unlock(&first_mutex);
    pthread_exit(0);
}
/* thread two runs in this function */
void *do_work_two(void *param){
    pthread_mutex_lock(&first_mutex);
    pthread_mutex_lock(&second_mutex
    /* Do some work*/
    pthread_mutex_unlock(&second_mutex);
    pthread_mutex_unlock(&first_mutex);
    pthread_exit(0);
}

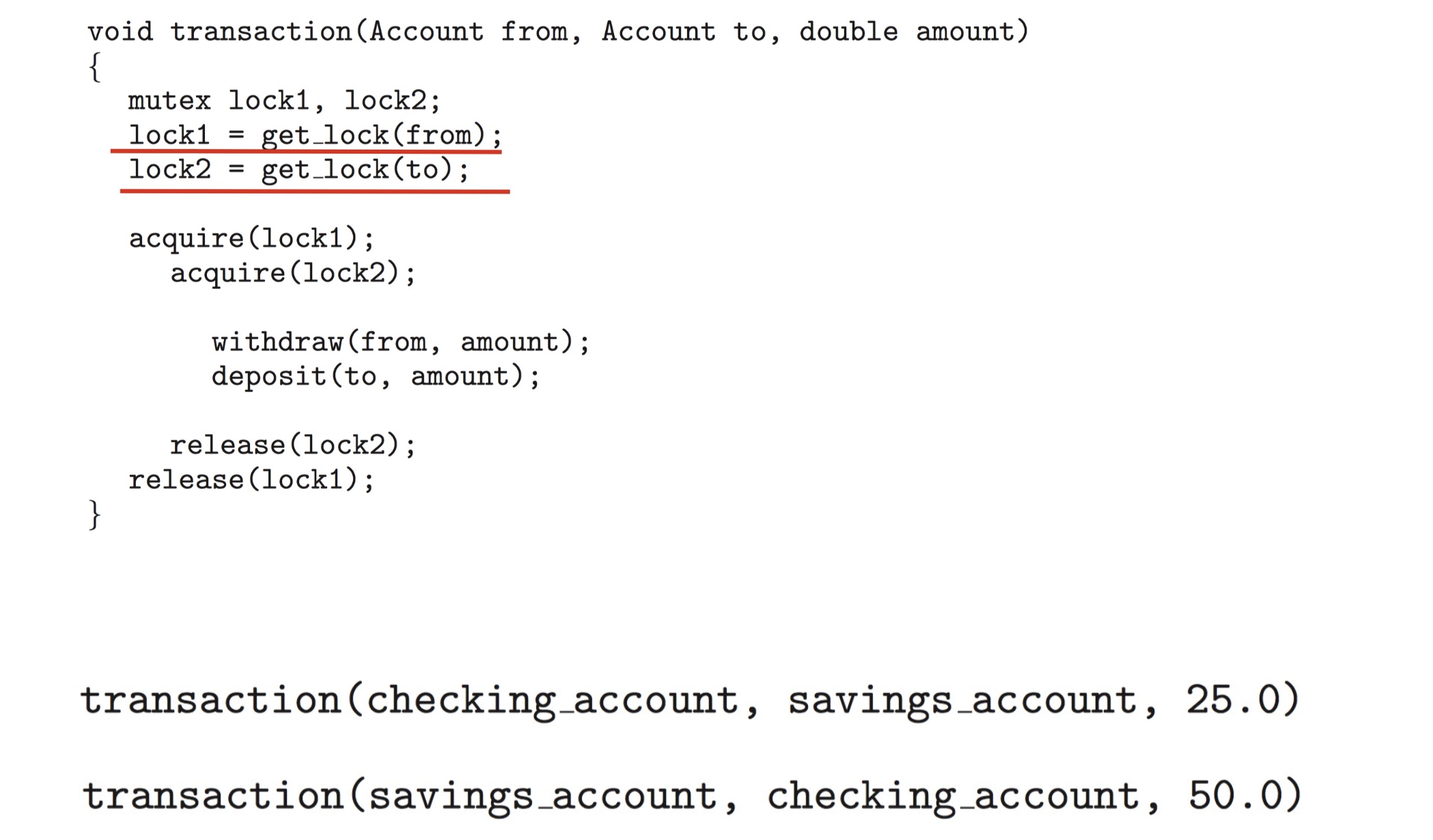

有的时候，给锁排序的方法不适用：在银行转账的时候，如果都先锁 from 再锁 to，就会死锁。
A 取存到 B，B 取存到 A，如果都先锁 from 再锁 to，就会死锁。

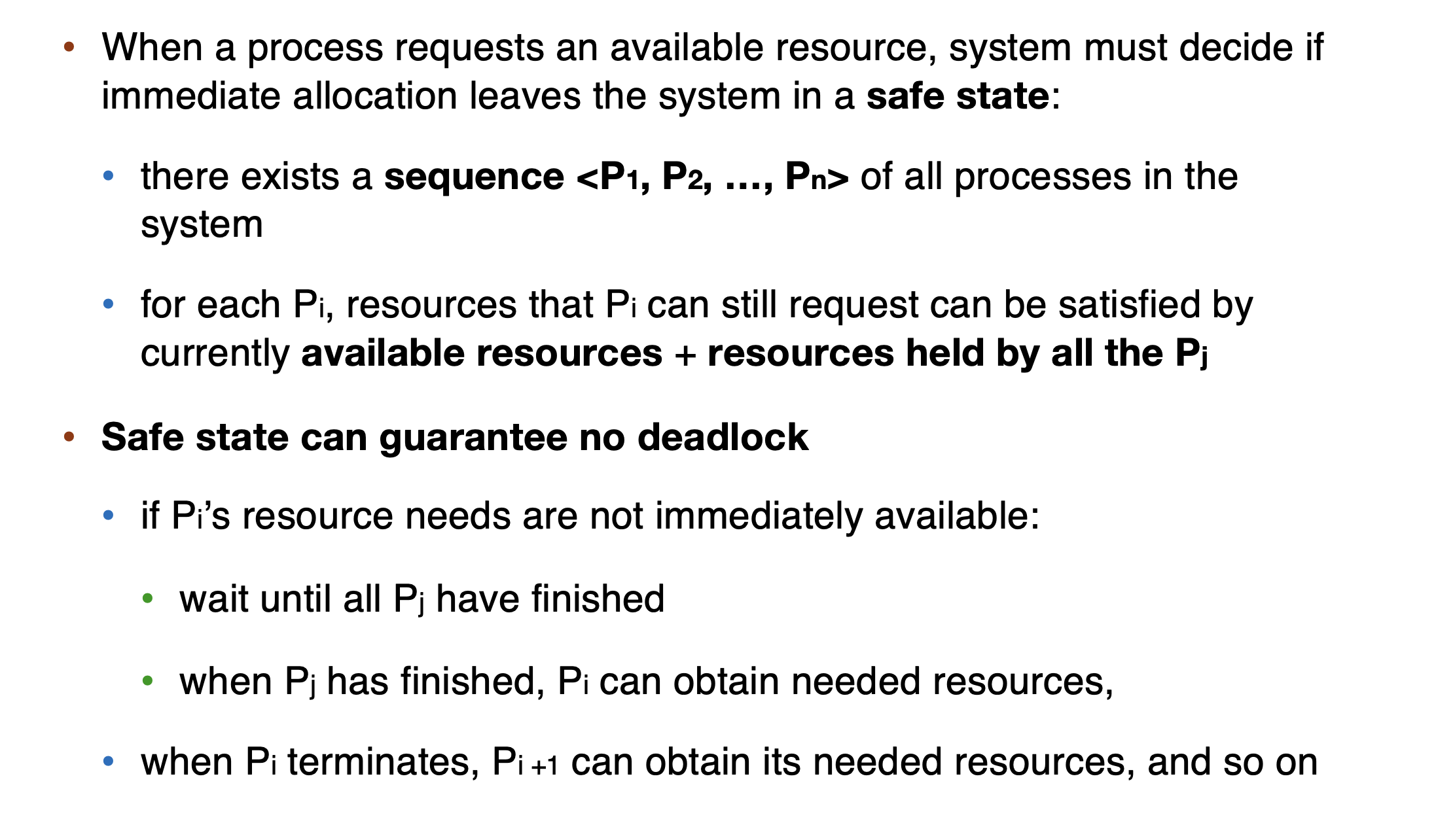

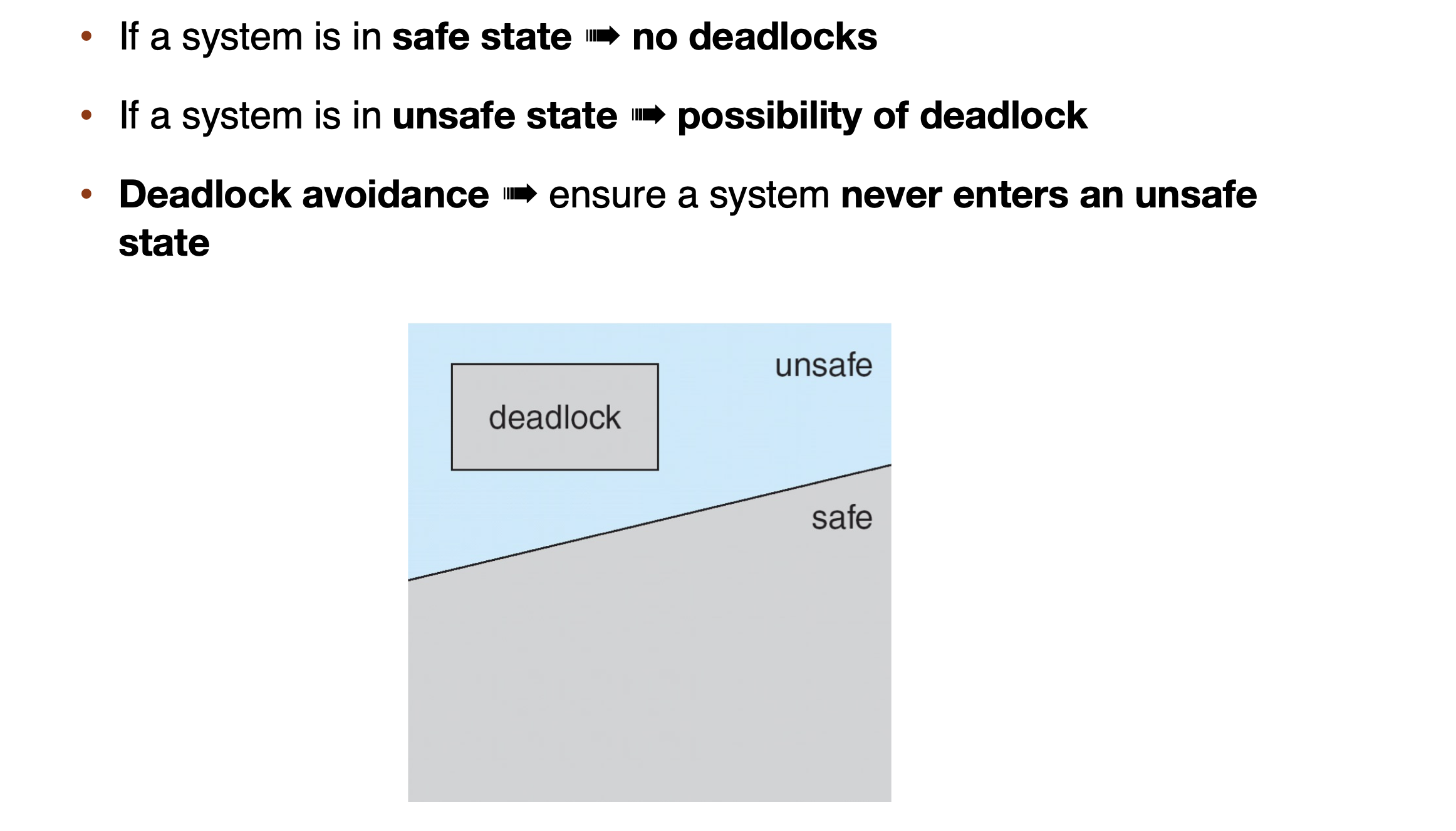

Safe State¶

Deadlock Avoidance¶

Impractical because we do not know how many resources a process will need in the future.

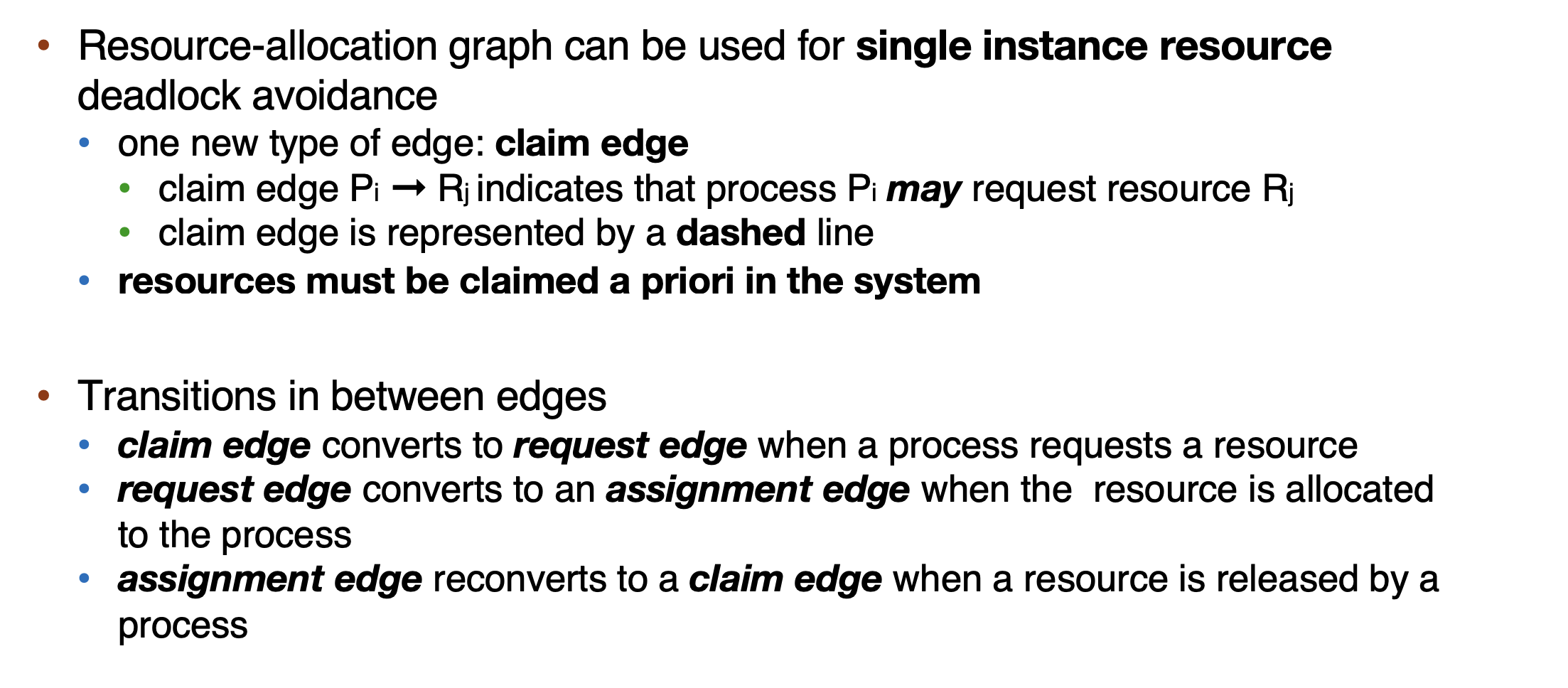

Single-instance Deadlock Avoidance¶

The request can be granted only if:

converting the request edge to an assignment edge does not result in the formation of a cycle

Banker’s Algorithm¶

n processes, m types of resources

available: an array of length m, instances of available resource available[j] = k: k instances of resource type Rj available
max: a n x m matrix : max [i,j] = k: process Pi may request at most k instances of resource Rj
allocation: n x m matrix : allocation[i,j] = k: Pi is currently allocated k instances of Rj
need: n x m matrix : need[i,j] = k: Pi may need k more instances of Rj to complete its task
need [i,j] = max[i,j] – allocation [i,j]

Example: Banker’s Algorithm see slides

Deadlock Detection¶

Single-instance Deadlock Detection¶

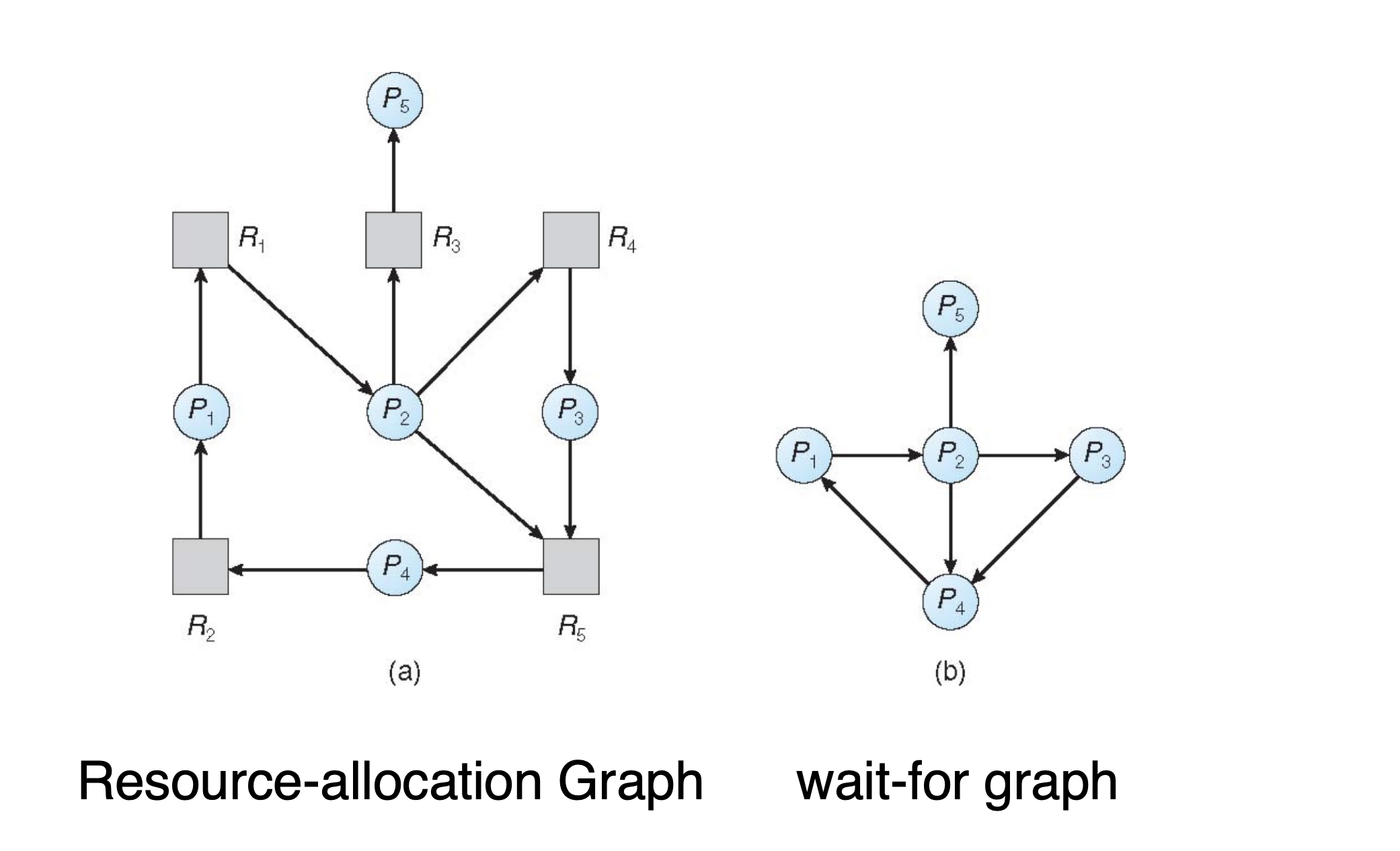

Wait-for Graph¶

A directed edge from Pi to Pj means that Pi is waiting for Pj to release a resource
A cycle in the graph implies a deadlock
Complexity: \(O(n^2)\)

Multiple-instance Deadlock Detection¶

Example: Multiple-instance Deadlock Detection see slides

Deadlock Recovery¶

abort all deadlocked processes
abort one process at a time until the deadlock cycle is eliminated

In which order should we choose to abort?
priority of the process
how long process has computed, and how much longer to completion
resources the process has used
resources process needs to complete
how many processes will need to be terminated
is process interactive or batch?

Resource preemption

Select a victim
Rollback
Starvation : How could you ensure that the resources do not preempt from the same process?
