Lecture 10 - Main Memory¶

Partition not realized 早期x86实现了segmentation Linux也使用了segmentation

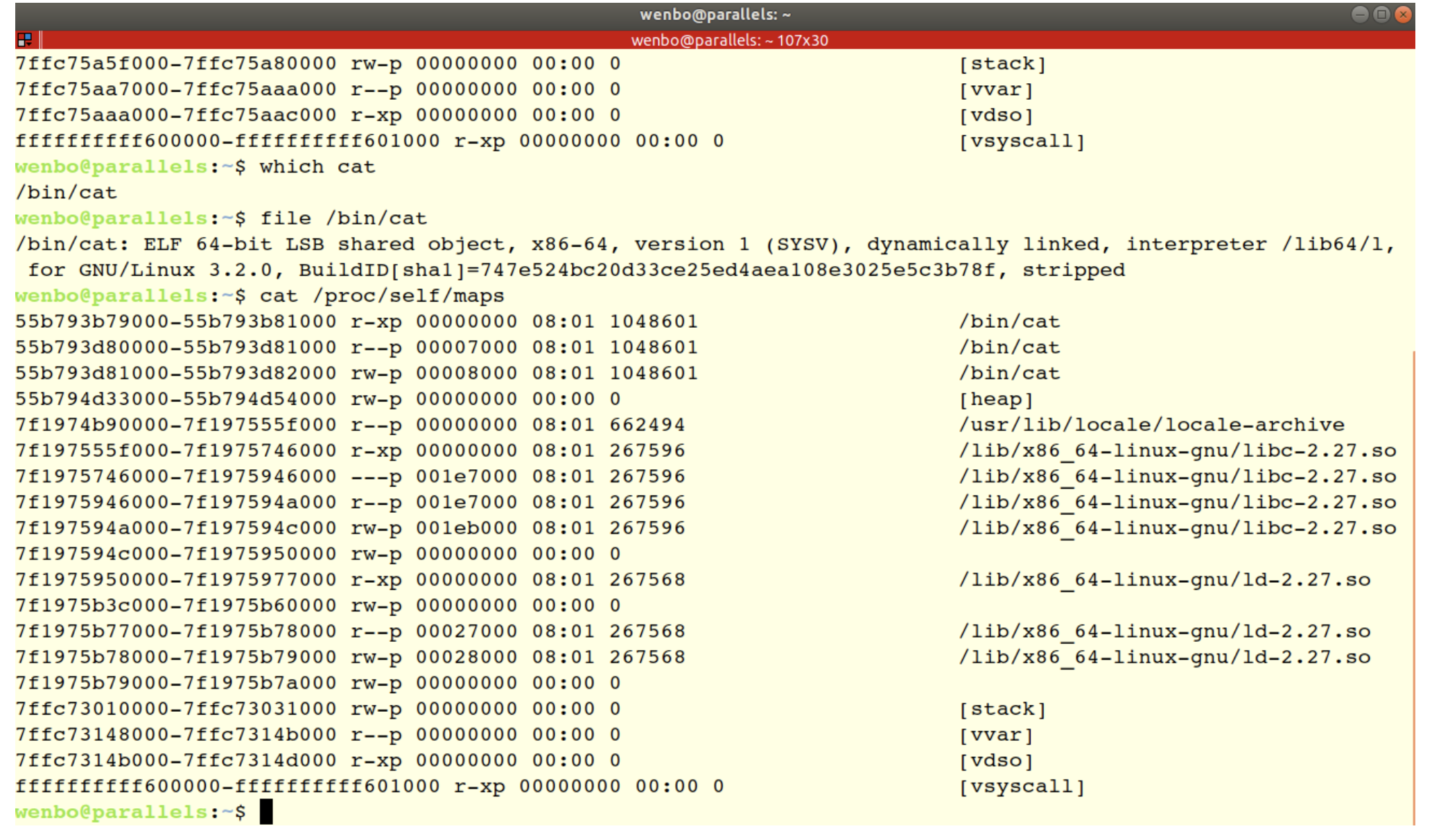

Logical Address [Virtual Address]¶

Partition¶

Divide the memory into fixed size partitions.

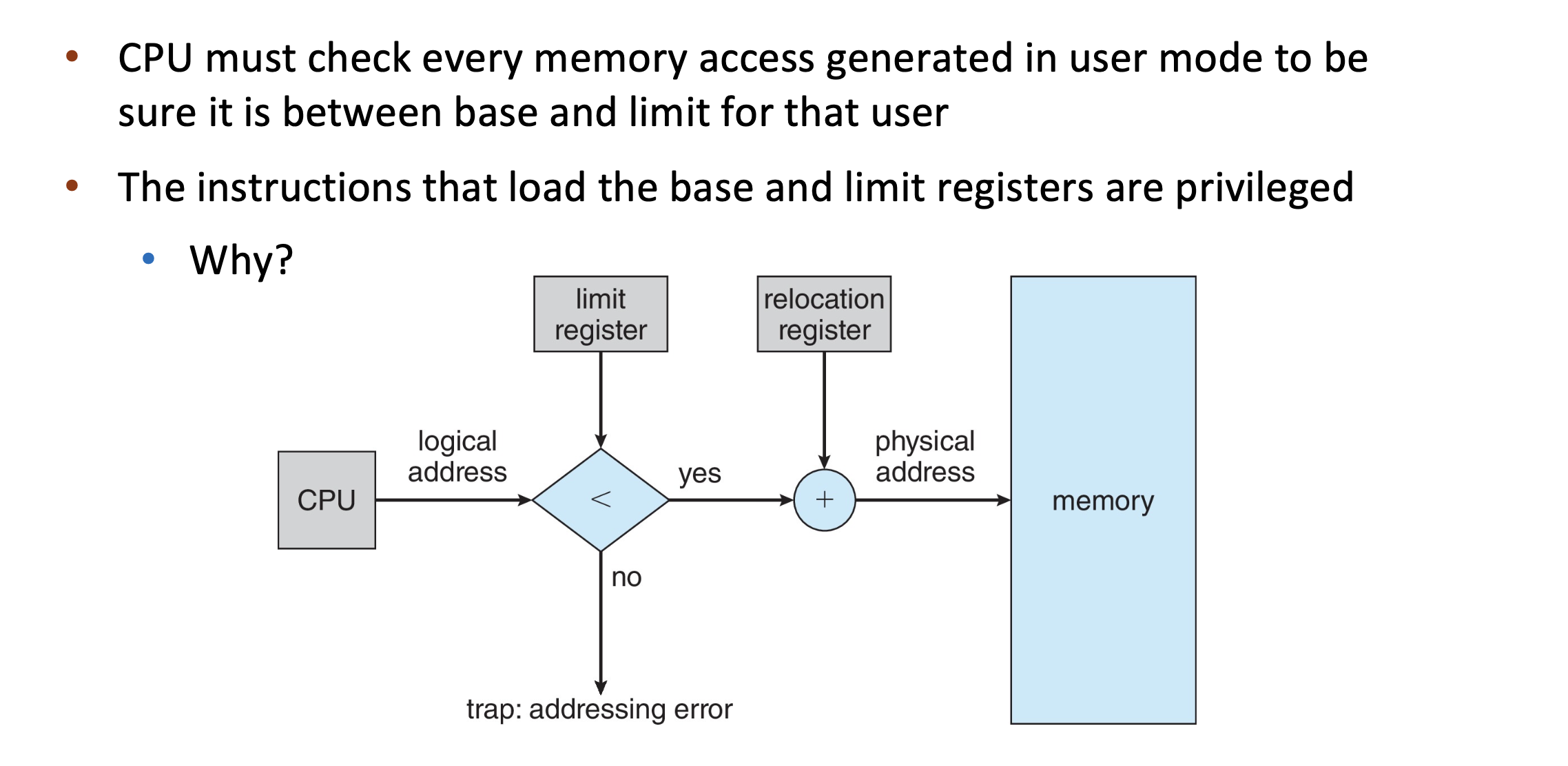

Use Base and Limit registers to map logical addresses to physical addresses.
Base added to all addresses
Limit checked on all memory references
In context switch, the base and limit registers are changed!

Load base and limit registers are Privileged Instructions!!
If logical > limit -> Segmentation Fault

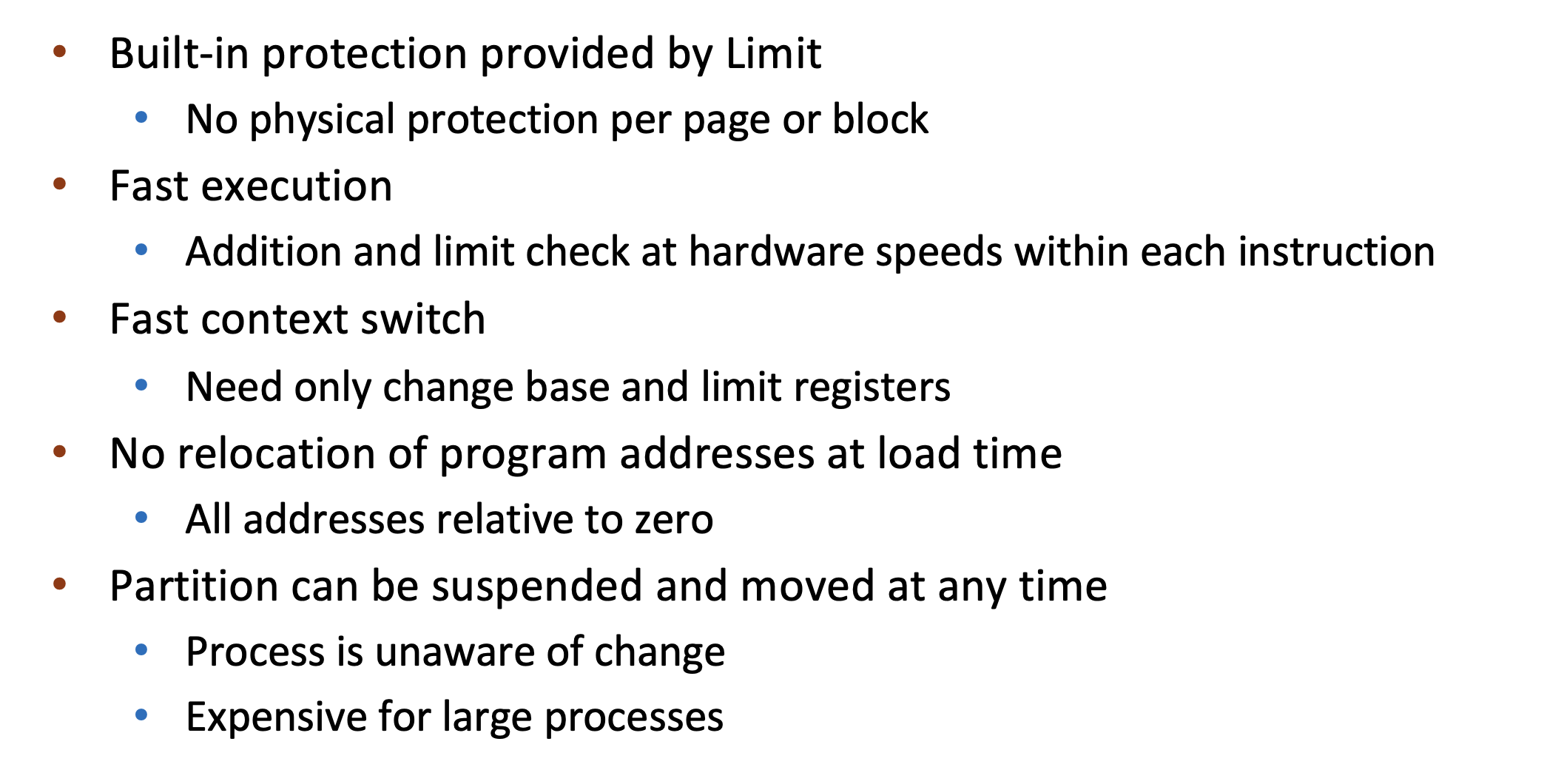

Advantages¶

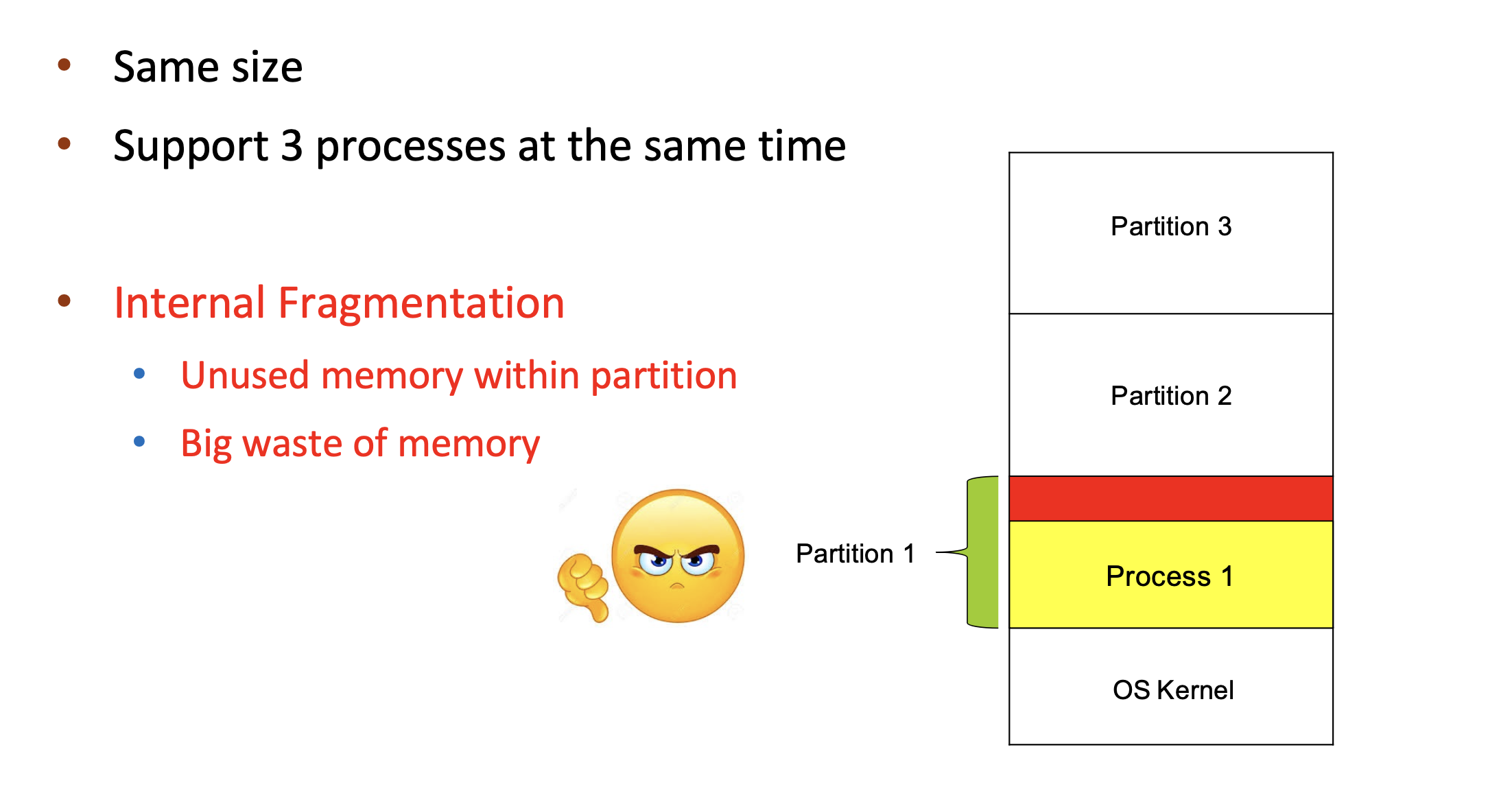

Fixed partitions¶

• All processes must fit into partition space

• Find any free partition and load process

What is the “right” partition size?

Problem – Internal Fragmentation : Unused memory in partition not available to other processes

This size difference is memory internal to a partition, but not being used
Sophisticated algorithms are designed to avoid fragmentation

Variable partitions¶

Memory is dynamically divided into partitions based on process needs

Algorithms to allocate memory¶

First Fit:allocate from the first block that is big enough
Best Fit : allocate from the smallest block that is big enough
Worst Fit : allocate from the largest hole

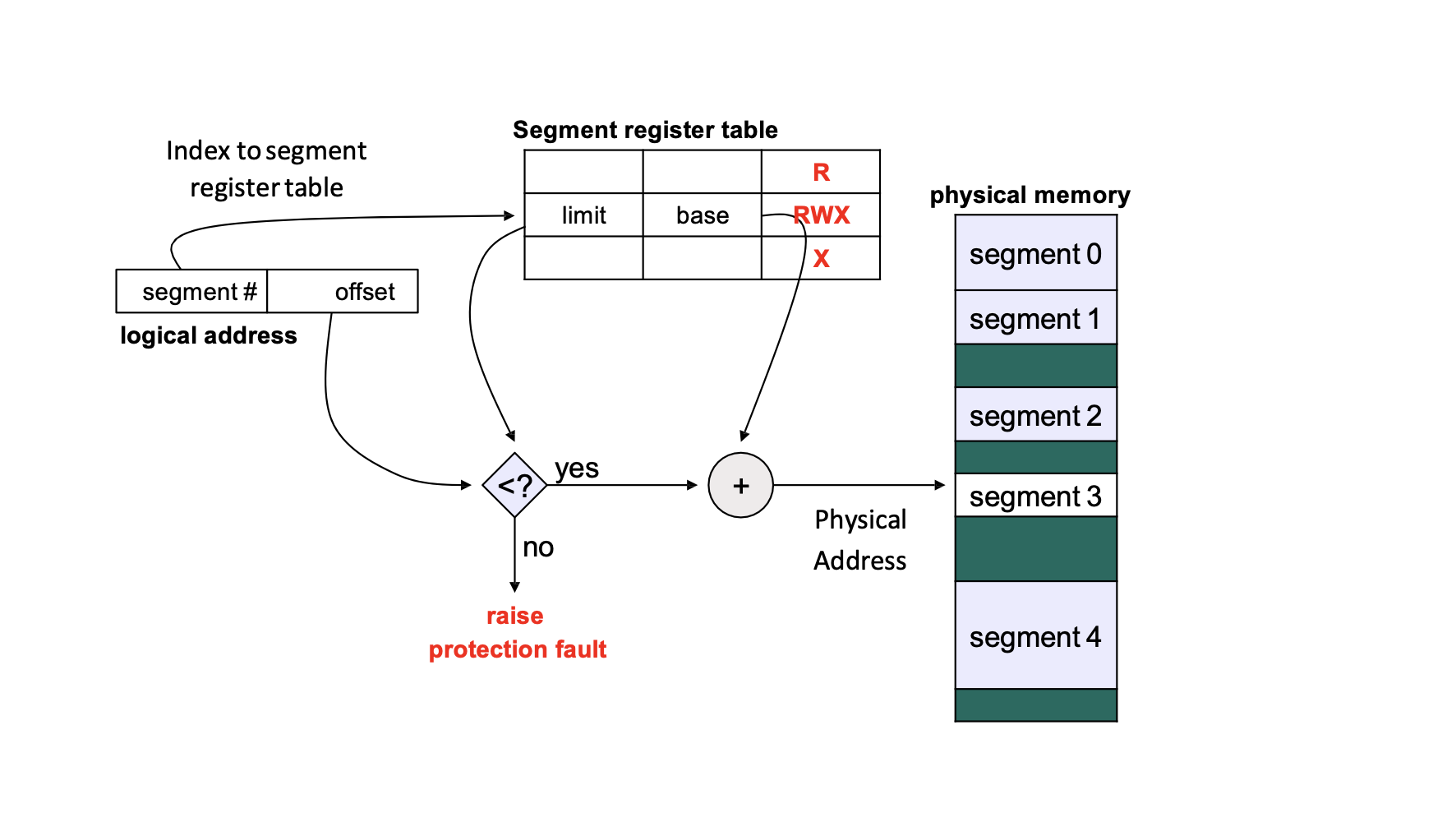

Segmentation [Still Partition]¶

Multiple partitions -- each partition is a segment

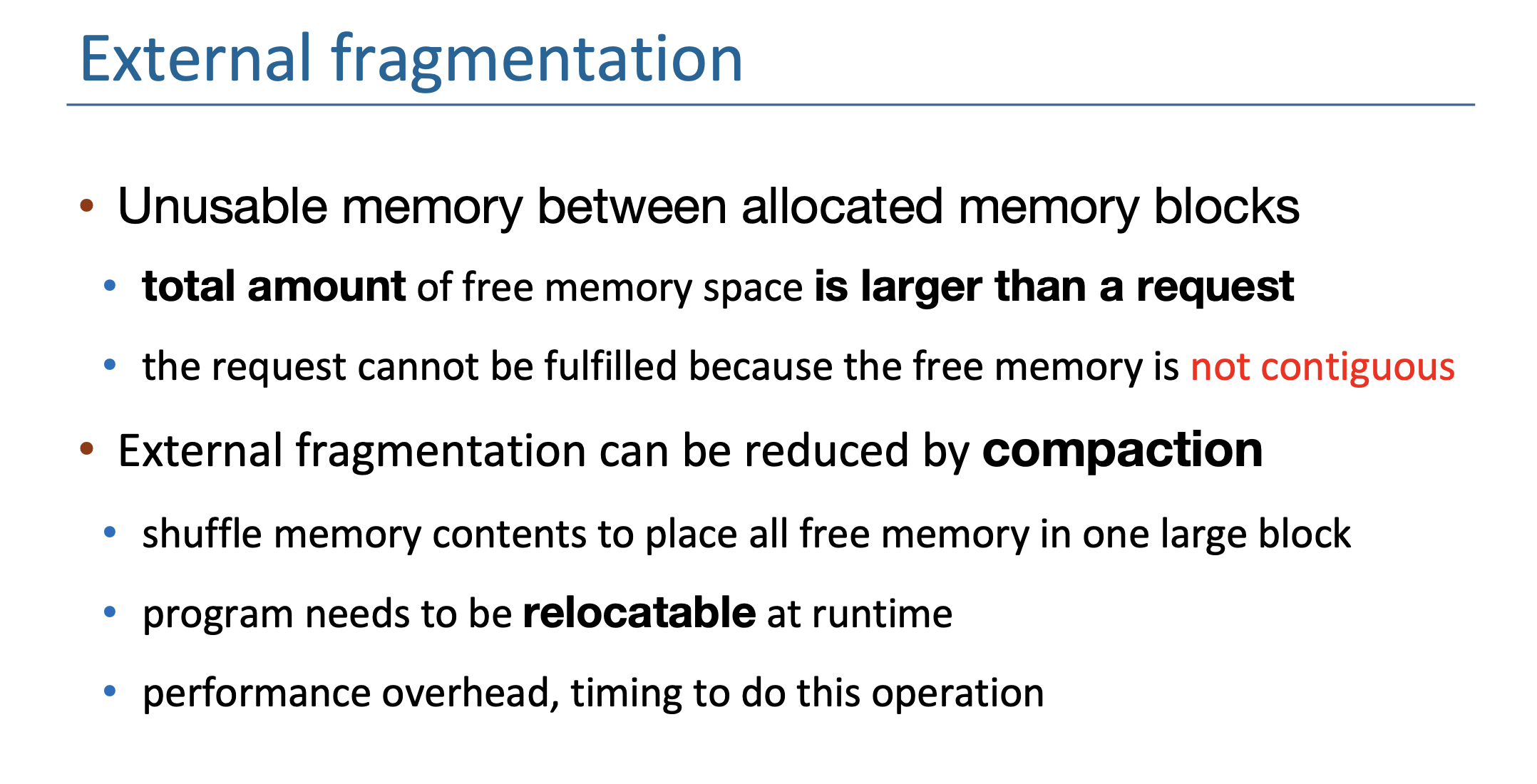

Problem – External Fragmentation Unused memory between segments too small to be used by any processes

So how to solve this problem? Paging

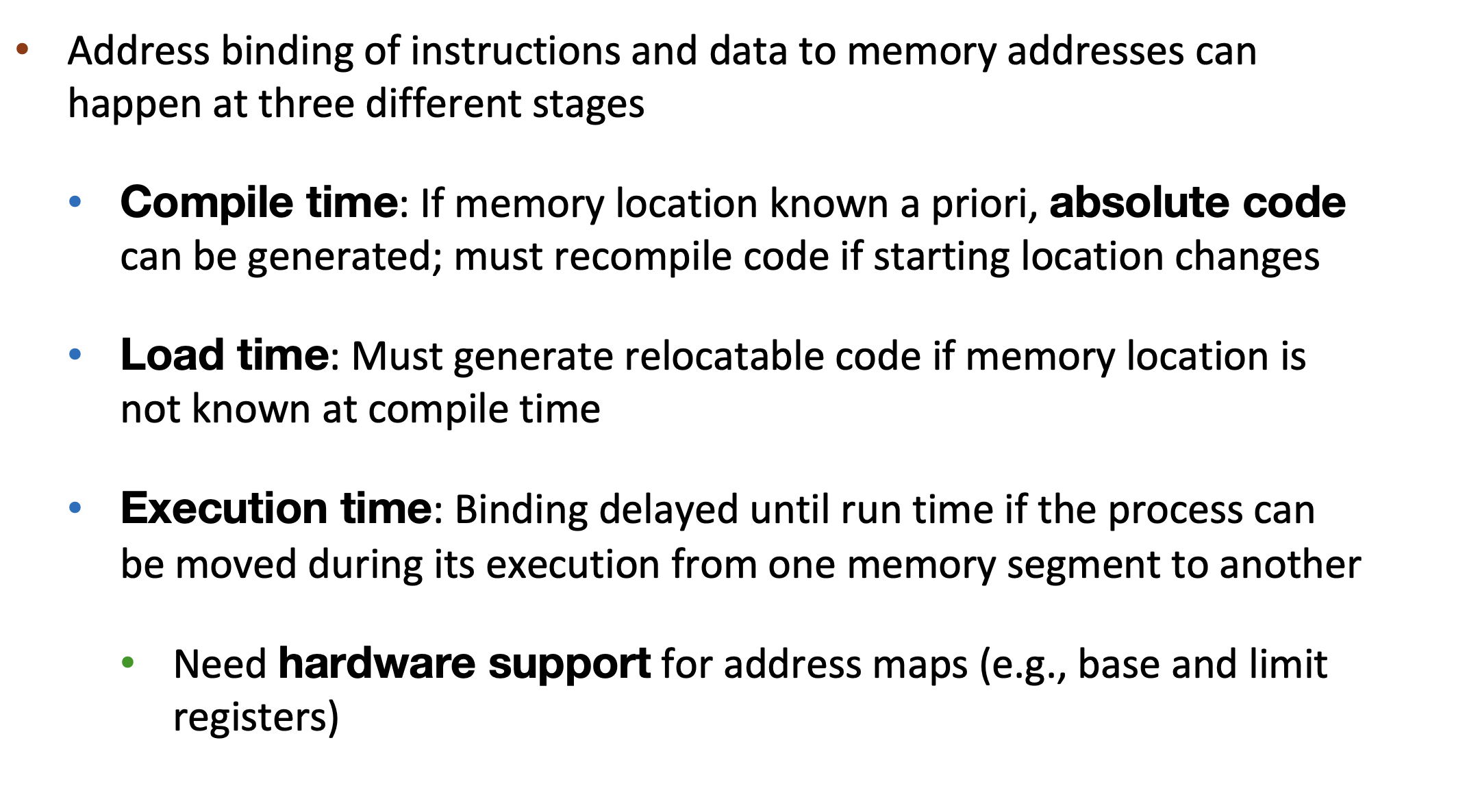

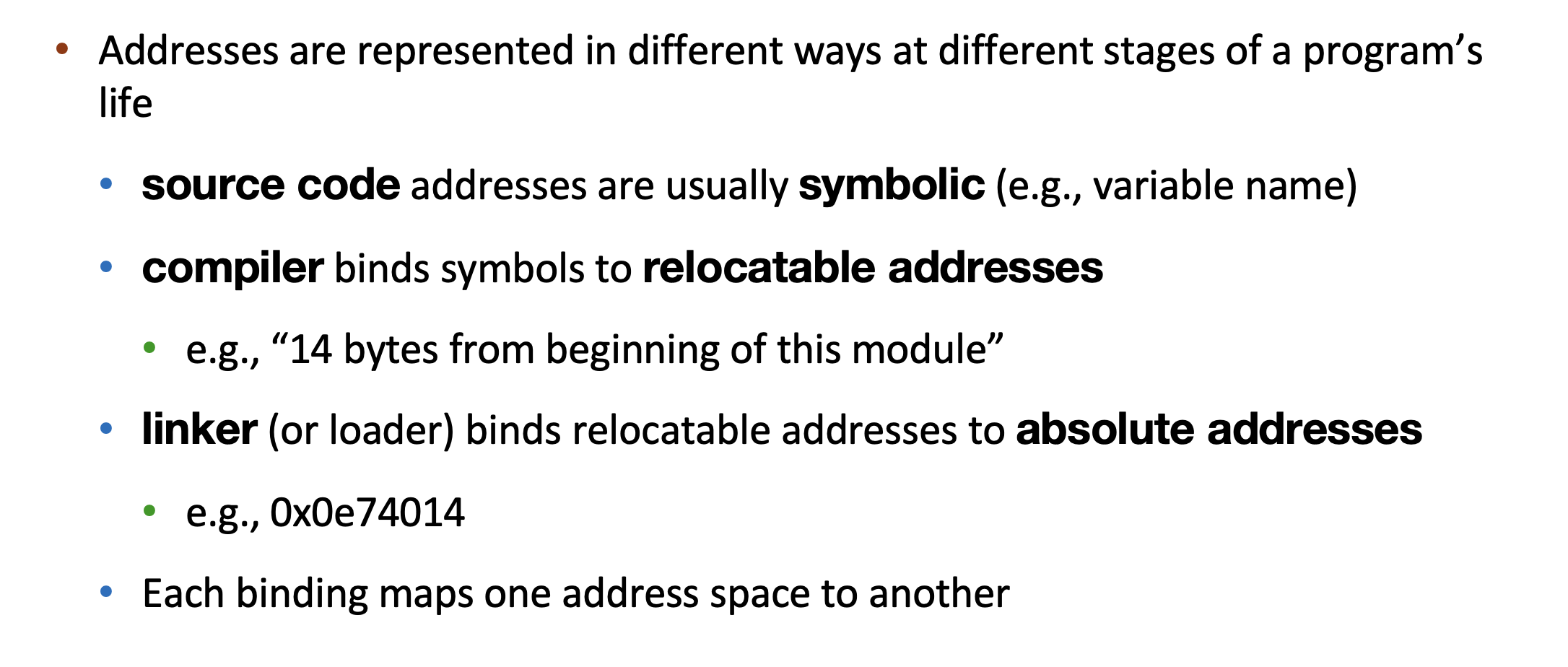

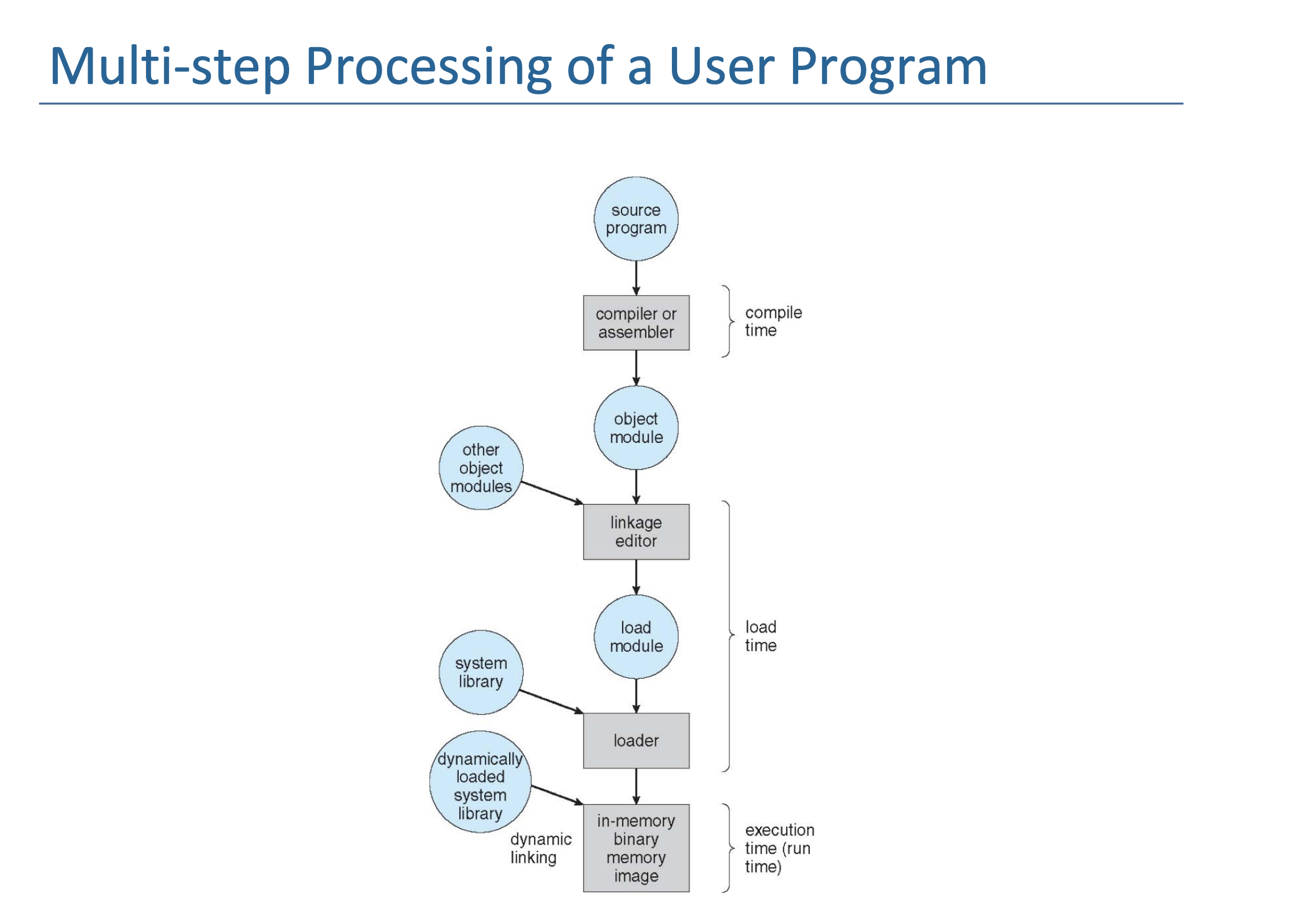

Address Binding¶

Memory-Management Unit (MMU)¶

Hardware device that at run time maps logical to physical address

CPU uses logical addresses
Memory unit uses physical address
Like speaking “different languages”, MMU does the translation

Paging [From Fixed length Partition]¶

Physicla Frame and Virtual Page

Contiguous to Noncontiguous

Physical address space of a process can be noncontiguous
process is allocated physical memory whenever the latter is available

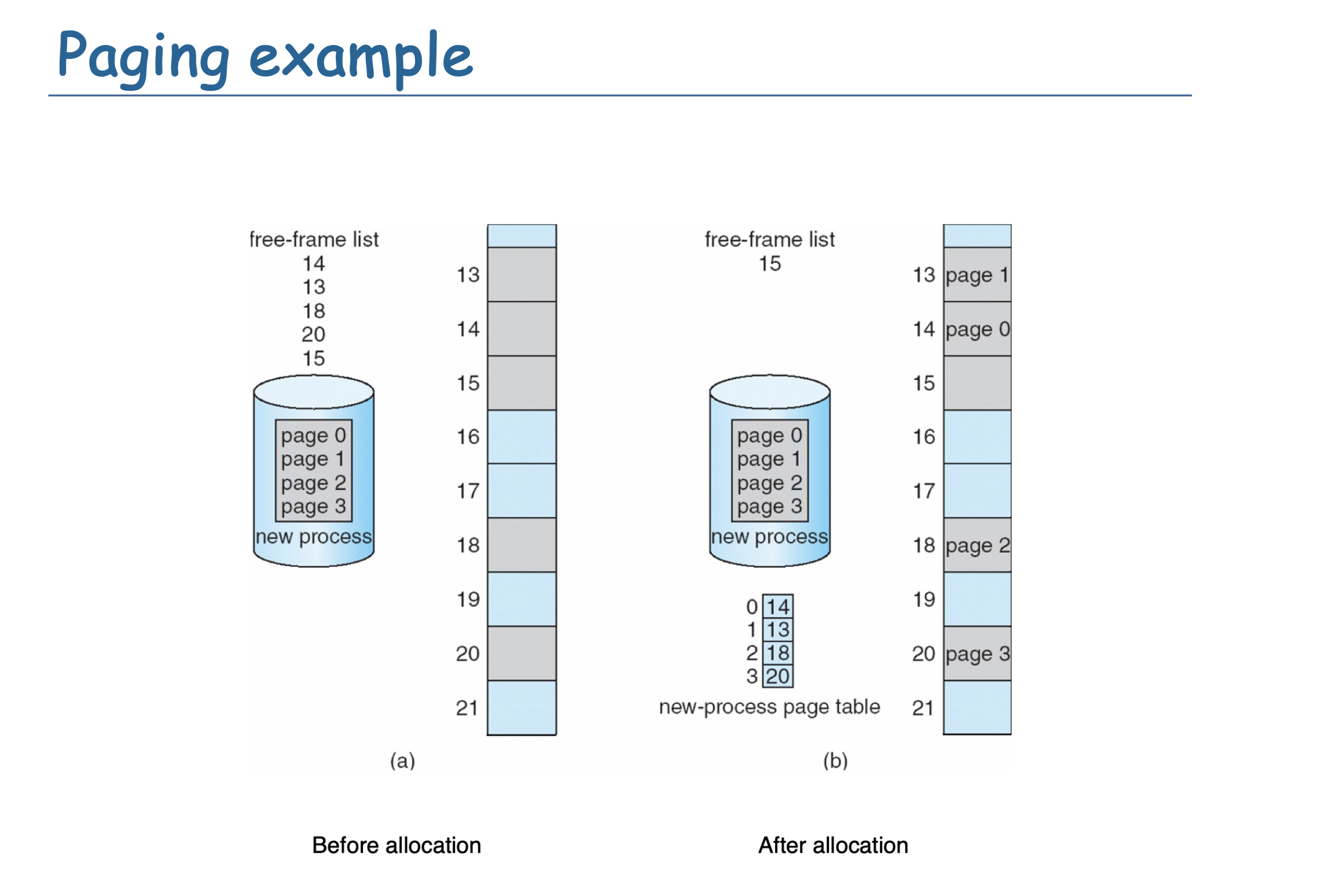

Divide physical address into fixed-sized blocks called frames
Divide logical address into blocks of same size called pages
Keep track of all free frames
To run a program of size N pages, need to find N free frames and load program
Set up a mapping to translate logical to physical addresses
This mapping is called page table

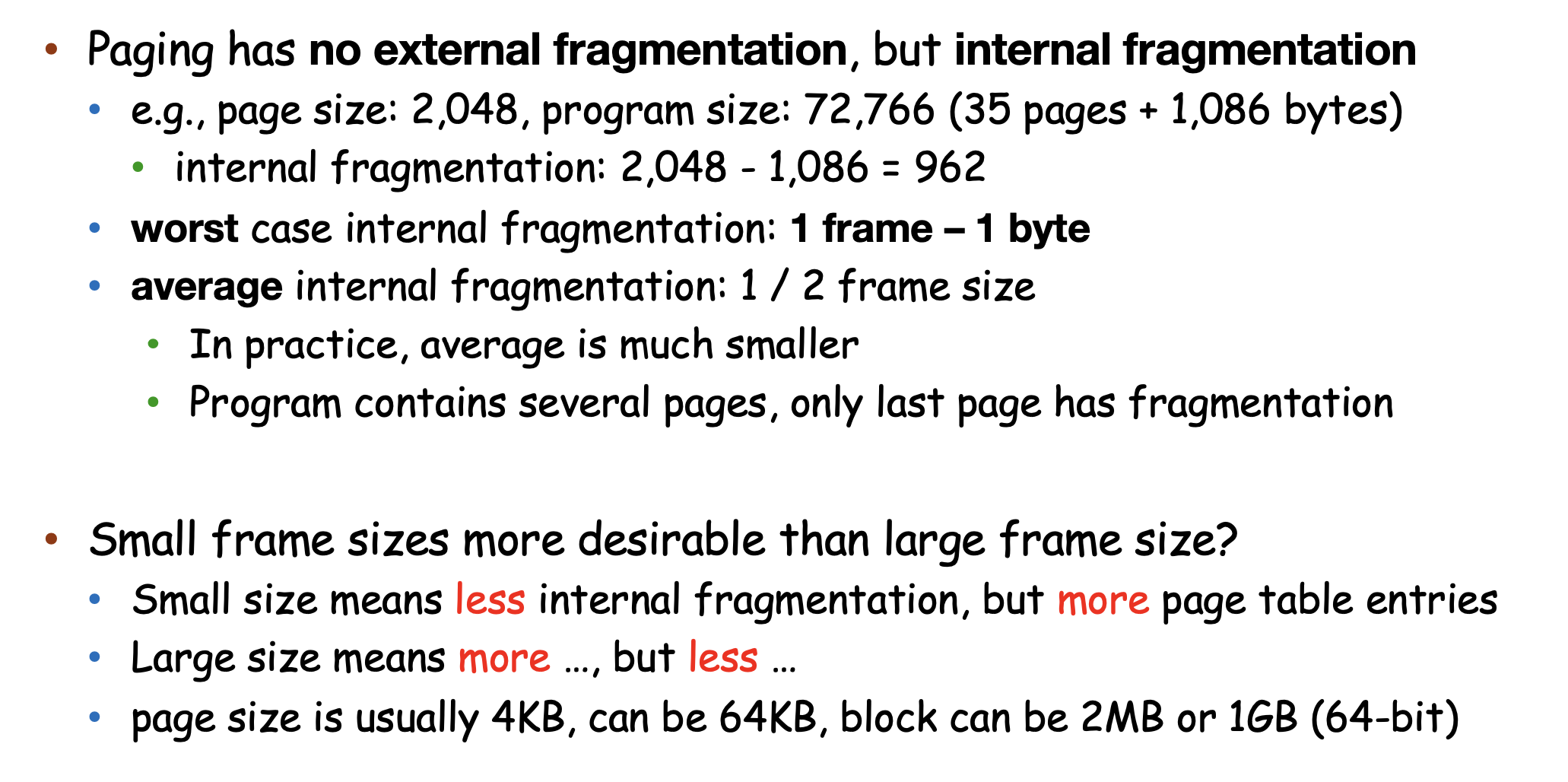

Problem – Internal Fragmentation Unused memory in last frame not available to other processes

Small frame sizes more desirable than large frame size?

Small size means less internal fragmentation, but more page table entries

Page Table & Frame Table¶

Page table store Frame Number , Page Number is naturally the index of the table

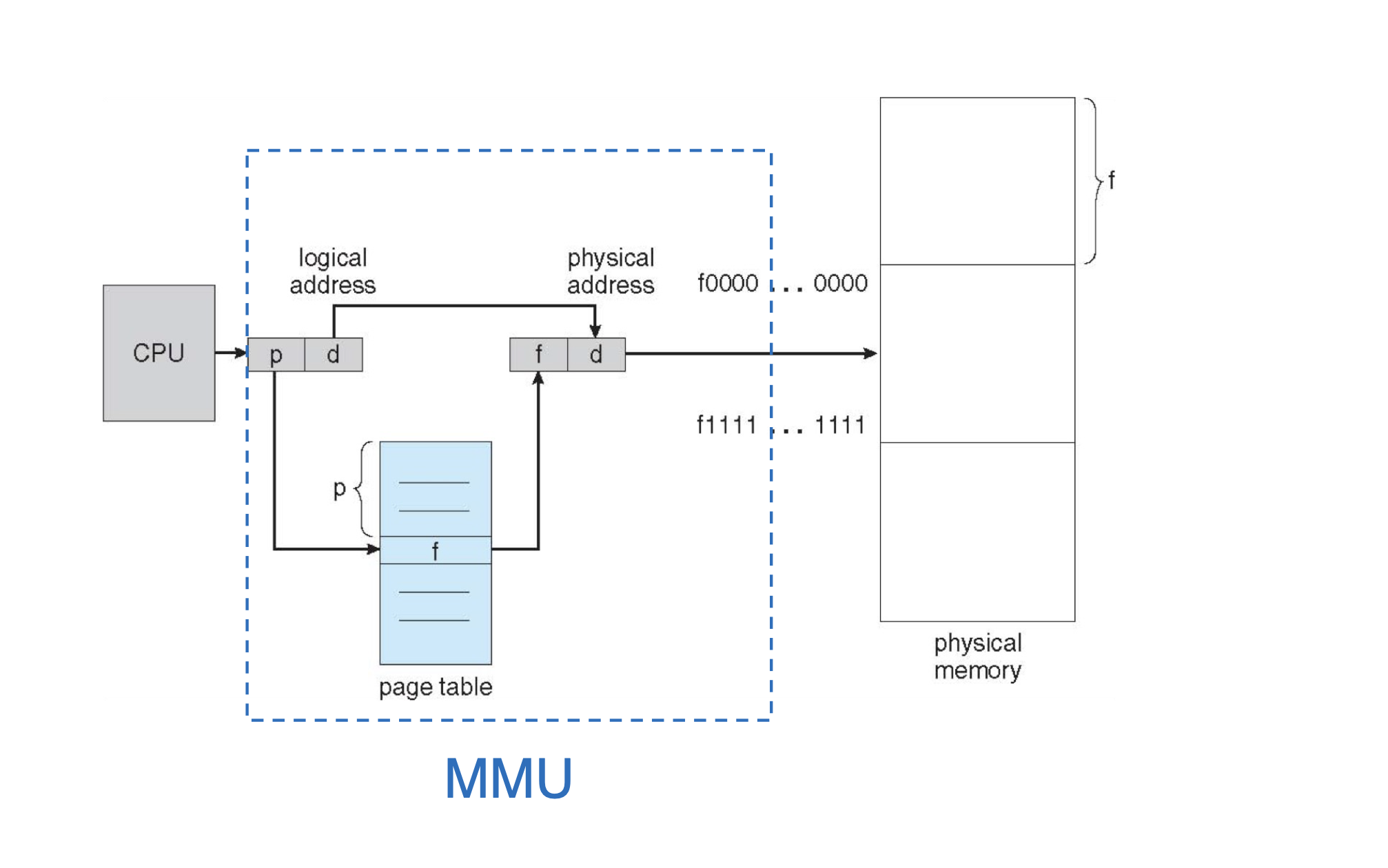

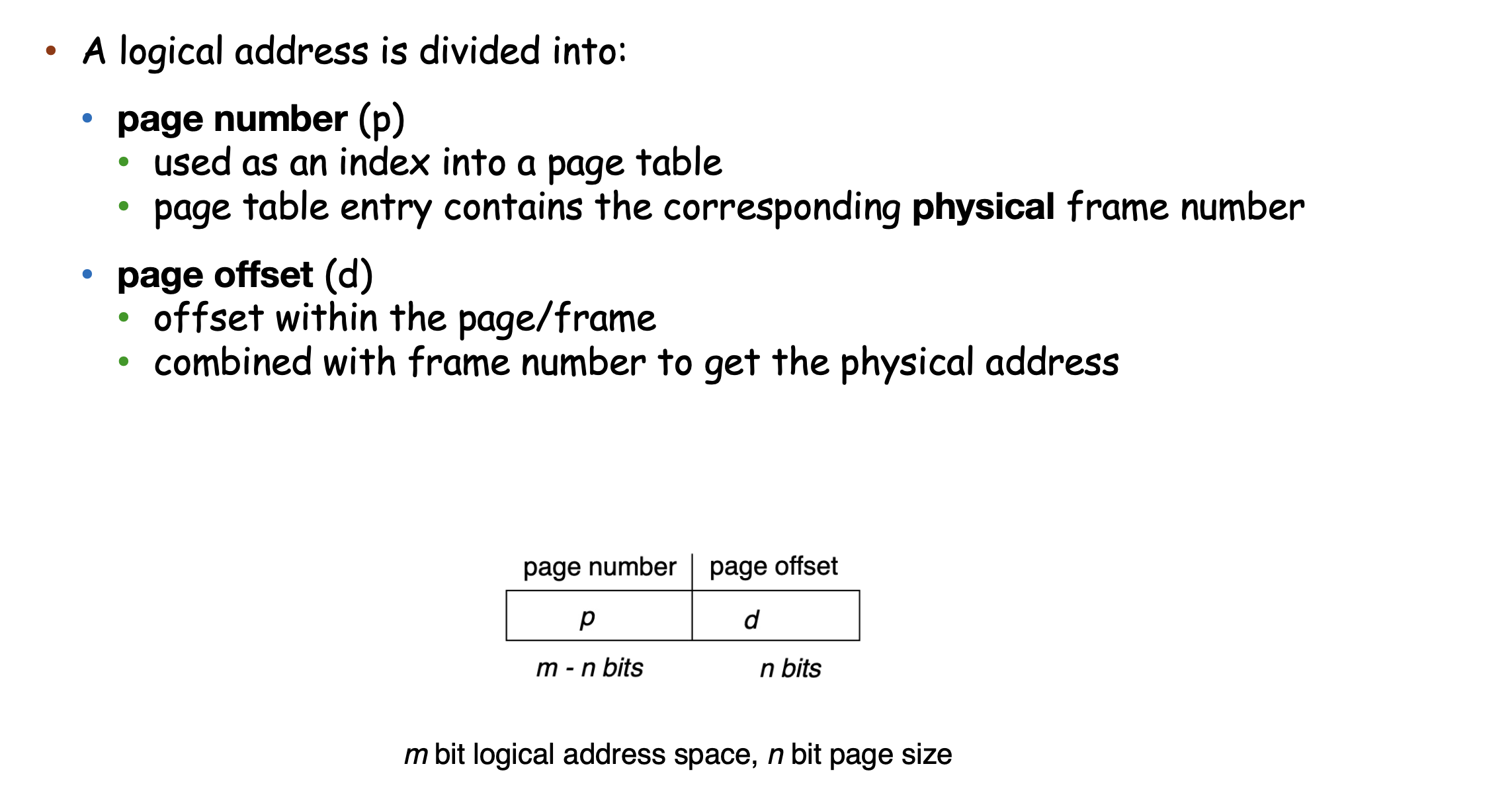

Page Translation¶

Example

4KB page size : offset is 12 bits
So 20 bits for page number

Page Table Hardware Support¶

Simplest Case [❌]¶

Page table is in a set of dedicated registers

Advantages: very efficient - access to register is fast Disadvantages:

register number is limited because the table size is very small
the context switch need to save and restore these registers

Alternative Way [✅]¶

page-table base register

in x86 -- CR3
in arm64 -- TTBR0 for user space per process, TTBR1 for kernel space
in RISC-V -- satp [Supervisor Address Translation and Protection]

One big page table maps logical address to physical address

the page table should be kept in main memory
page-table base register (PTBR) points to the page table
does PTBR contain physical or logical address?
page-table length register (PTLR) indicates the size of the page table

Every data/instruction access requires two memory accesses

One for the page table and one for the data / instruction
How to reduce memory accesses caused by page table?
CPU can cache the translation to avoid one memory access (TLB)

Problem : 多了一次对page table的访问 Solution : Translation Lookaside Buffer (TLB)

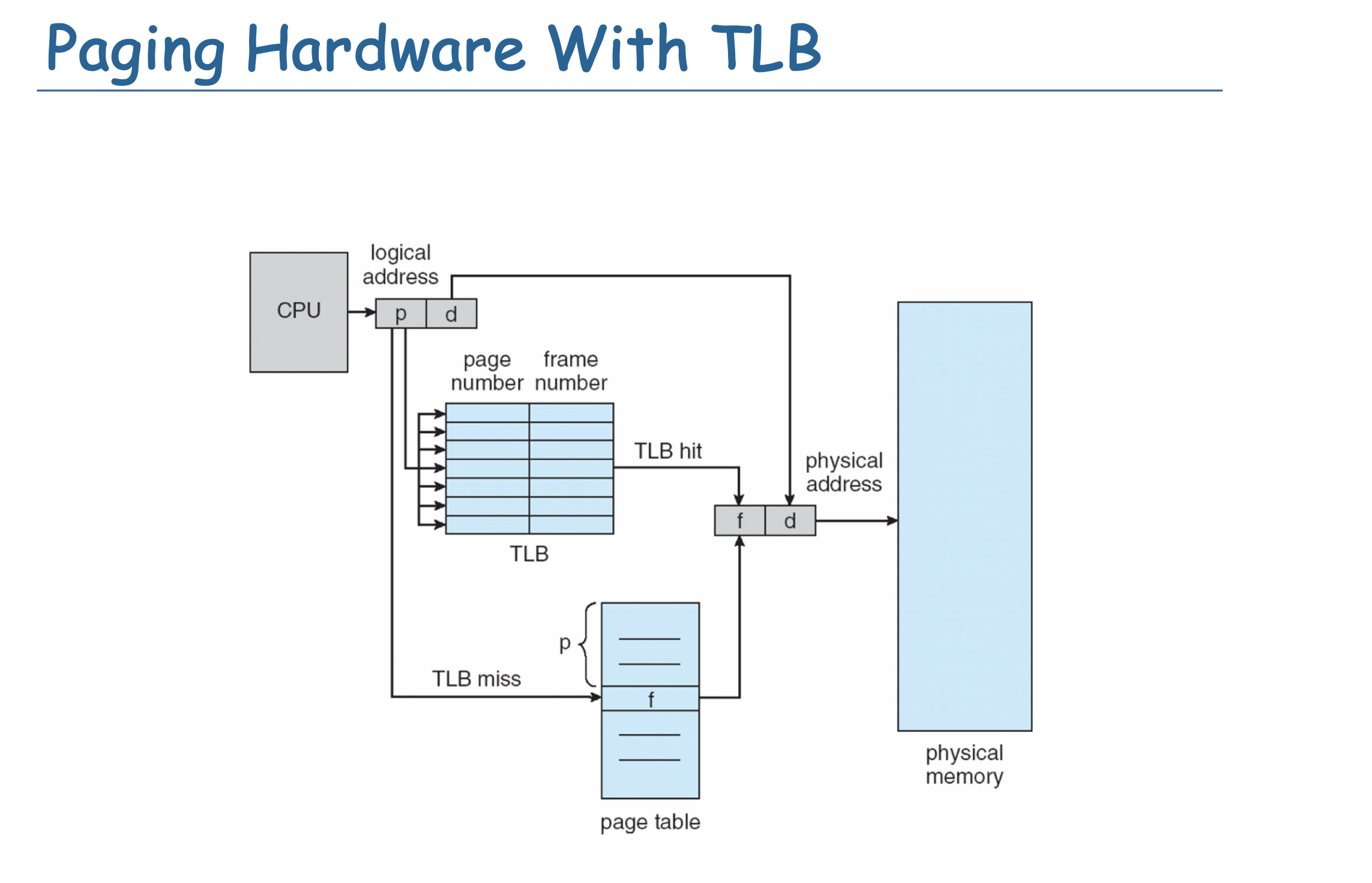

Translation Lookaside Buffer (TLB)¶

TLB (translation look-aside buffer) caches the address translation

if page number is in the TLB, no need to access the page table
if page number is not in the TLB, need to replace one TLB entry
TLB usually use a fast-lookup hardware cache called associative memory
TLB is usually small, 64 to 1024 entries

Use with page table

TLB contains a few page table entries
Check whether page number is in TLB
If -> frame number is available and used
If not -> TLB miss access page table and then fetch into TLB

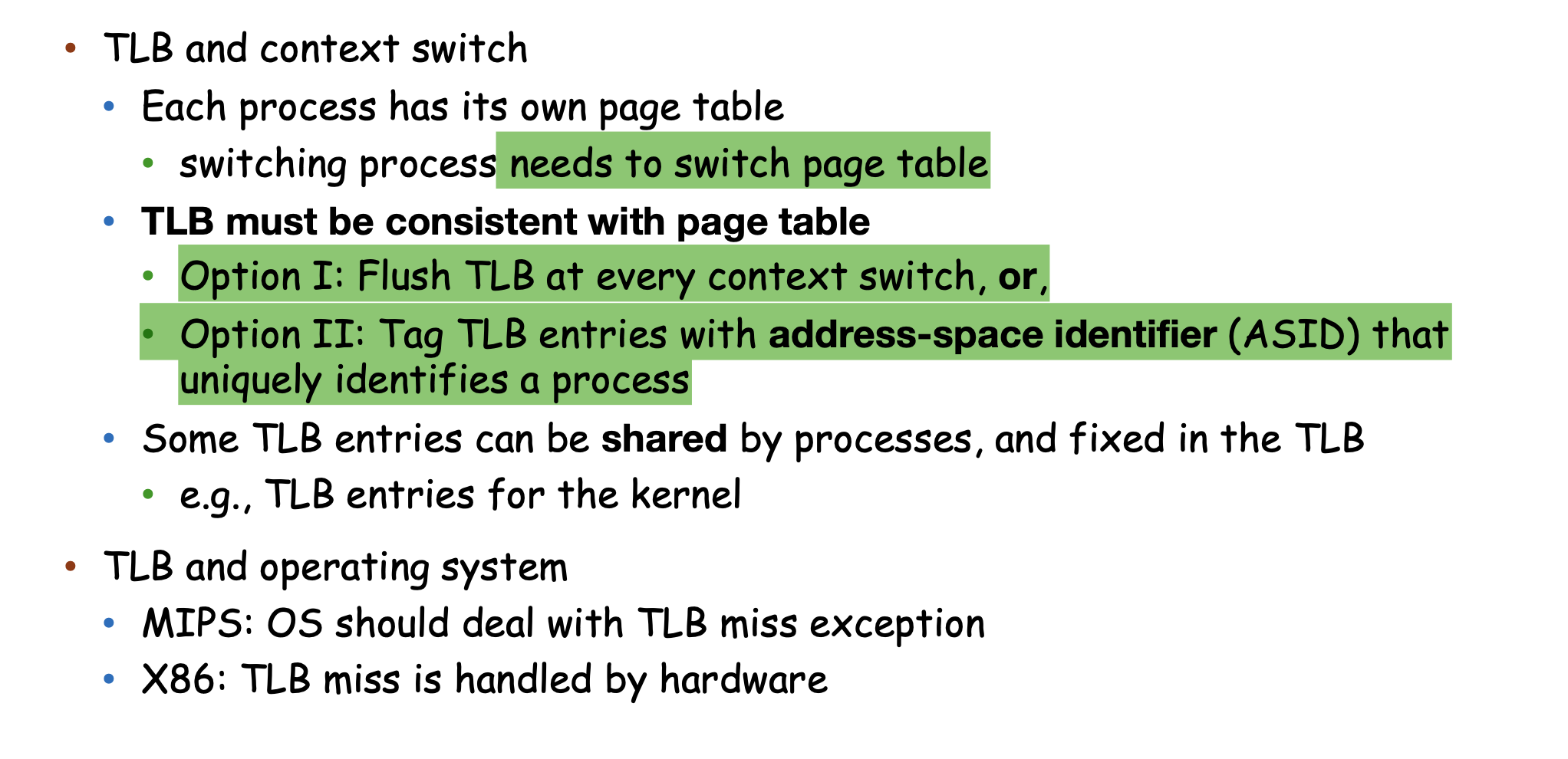

When context switch, TLB should be flushed!!

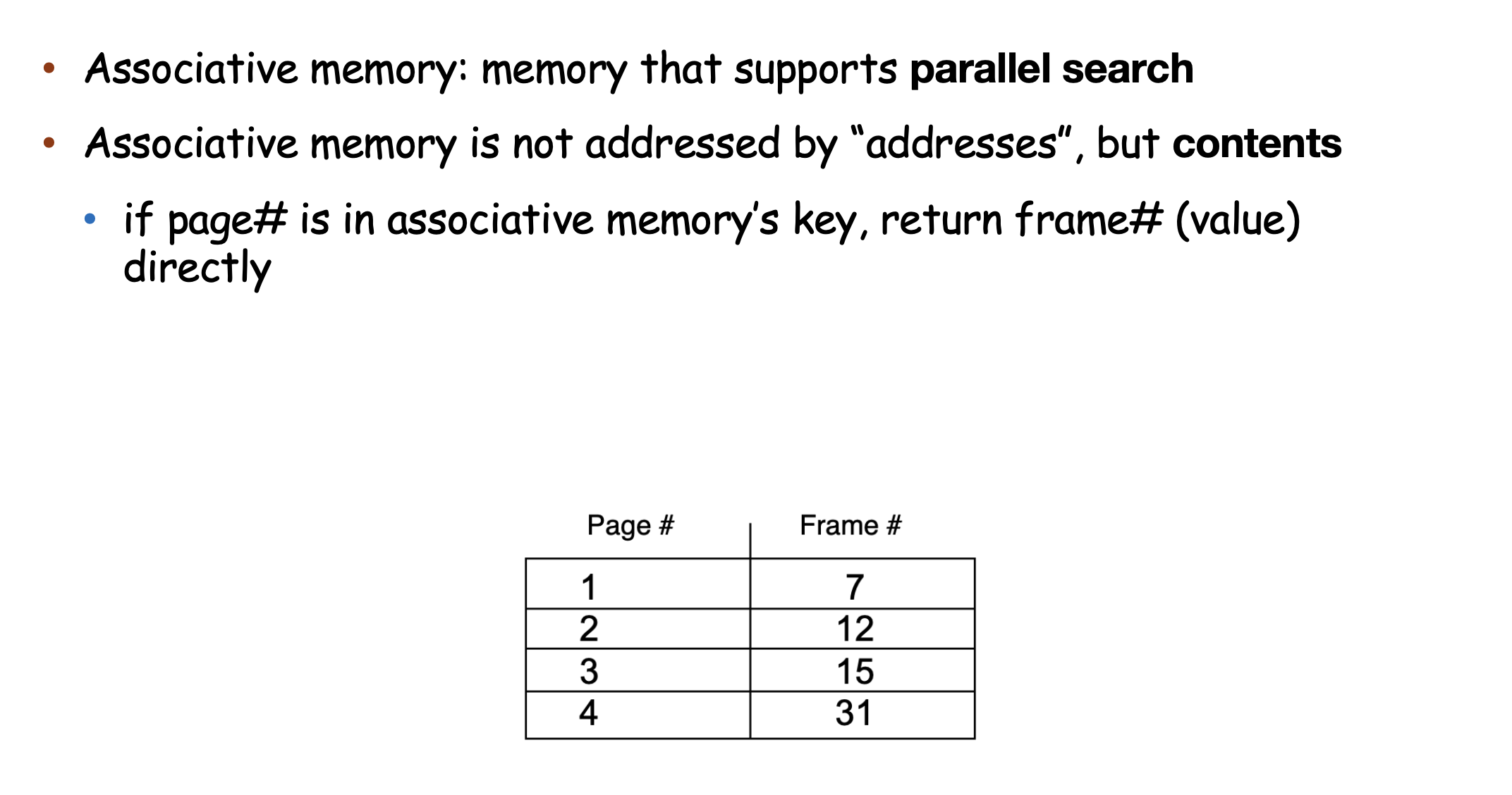

Realized by Associative Memory

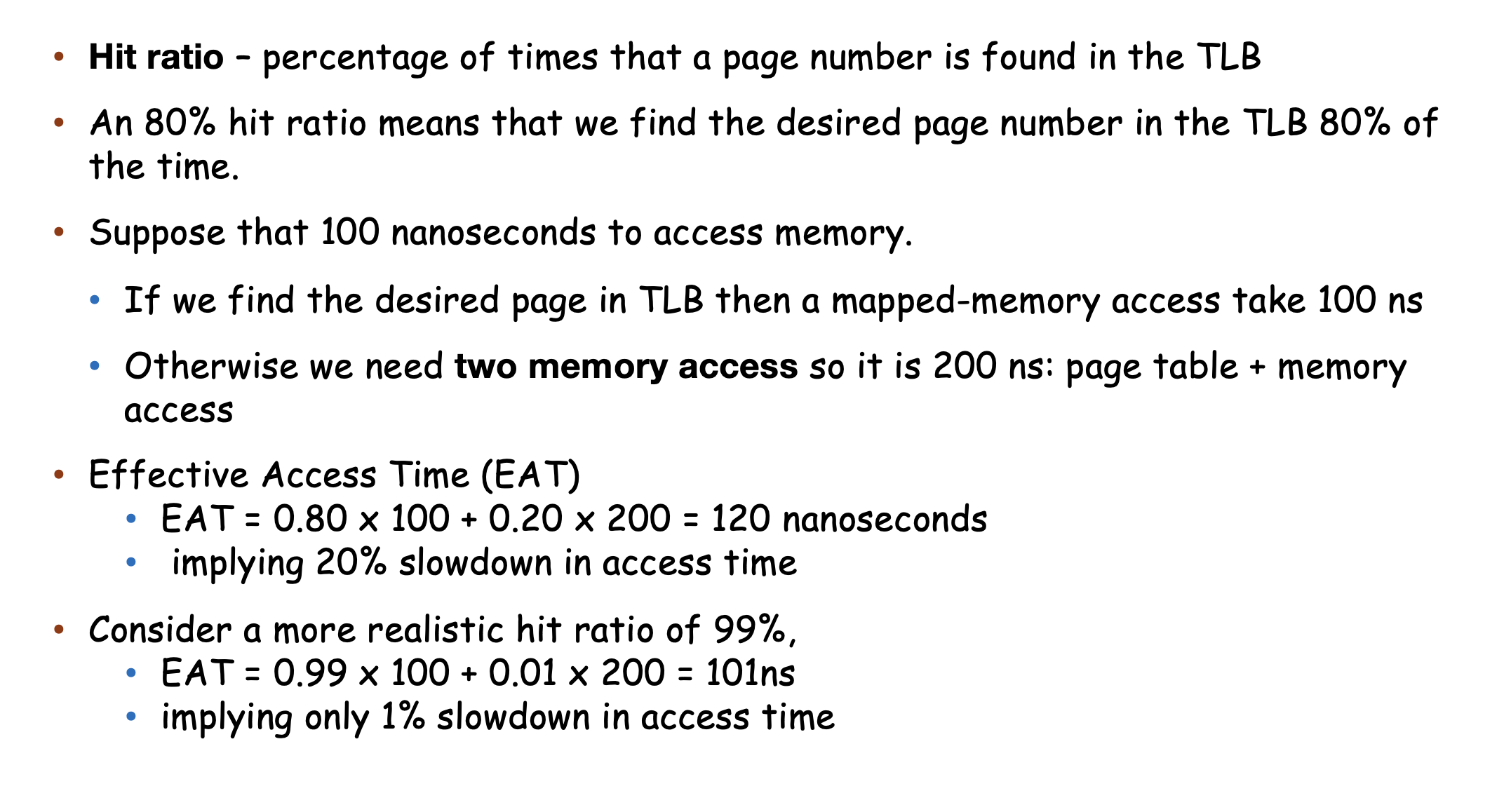

Effective Access Time¶

In real time, the TLB hit rate is usually approximately 100% [after warm-up]

So if increase page size, the TLB hit rate will increase and the TLB miss rate will decrease

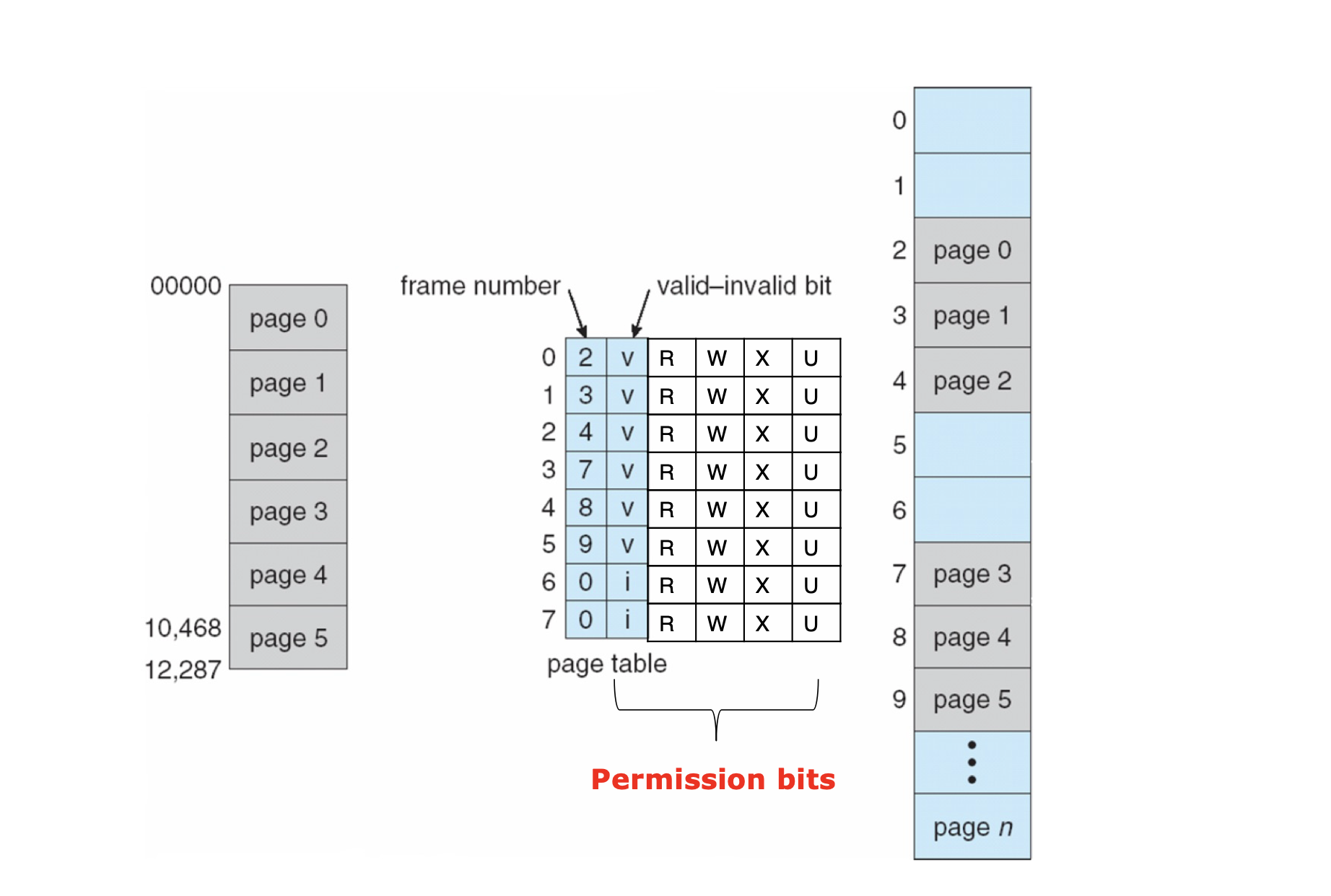

Memory Protection¶

IMPORTANT

page table 需要物理连续！因为是base register指向的，且硬件MMU walk page table，完全不知道虚拟地址的存在
page table内存的都是物理地址!!
page table base registers 是物理地址!!

Page Table Structure¶

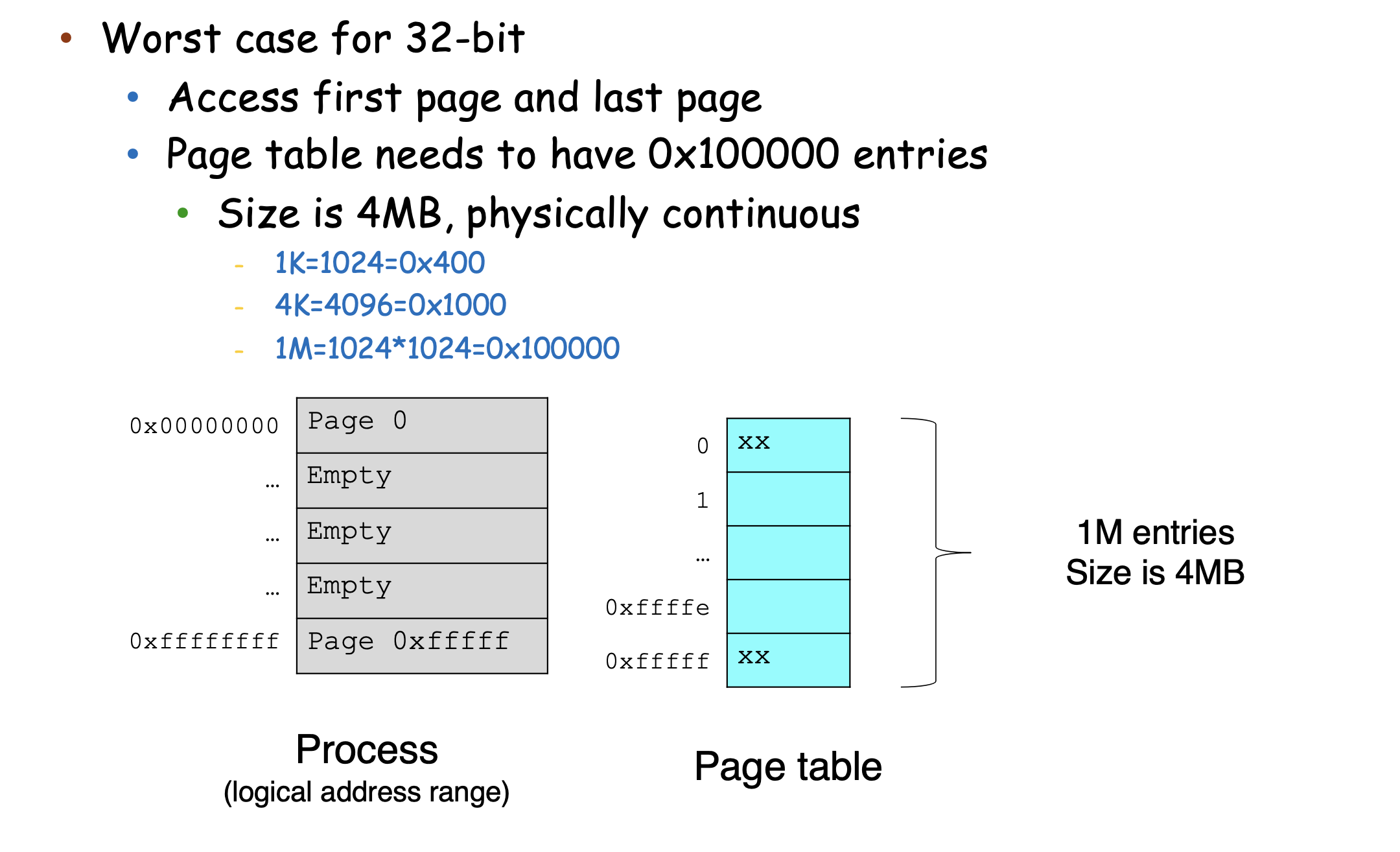

One-level Page Table¶

e.g., 32-bit logical address space and 4KB page size

page table would have1 M entries (\(2^{32} / 2^{12}\))
if each entry is 4 bytes ➔ 4 MB!! of memory for page table alone
each process requires its own page table
page table must be physically contiguous -- TOO LARGE

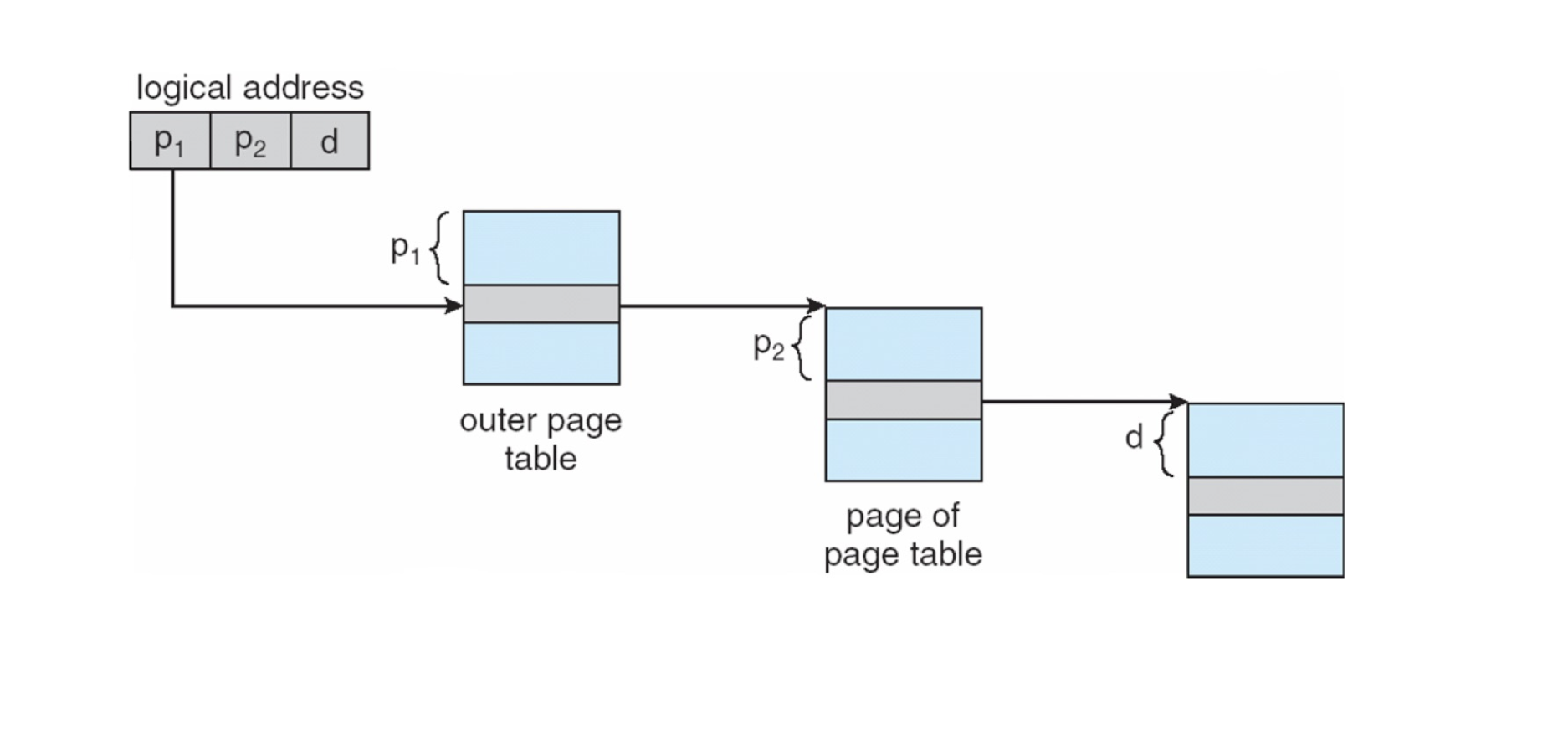

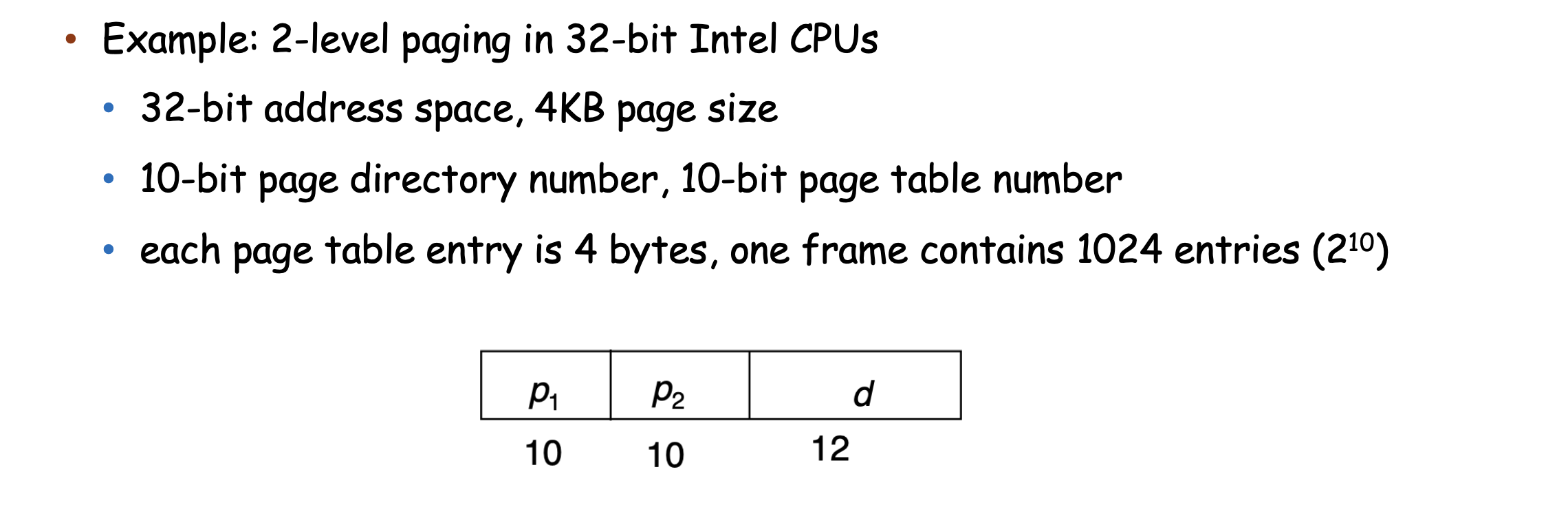

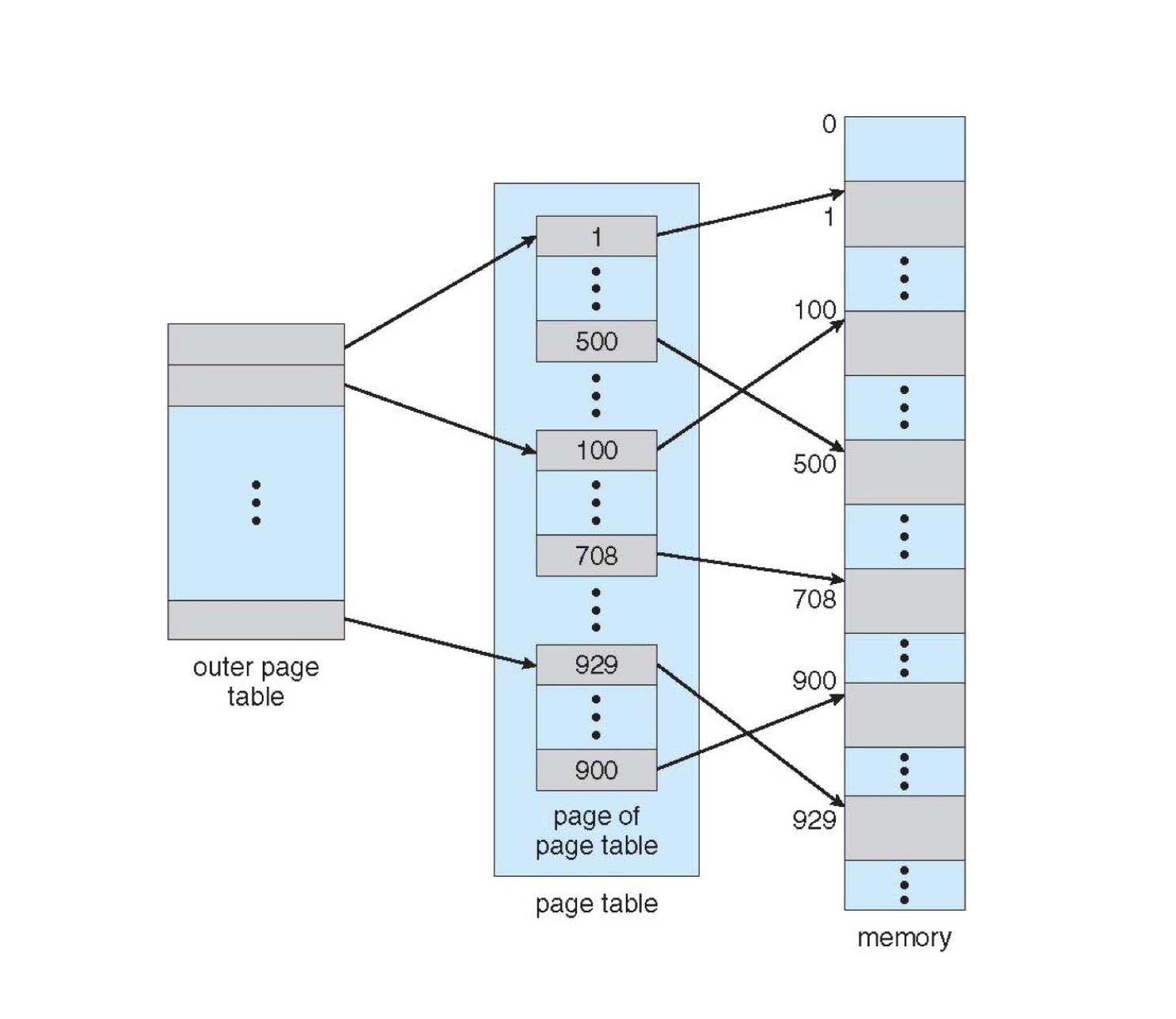

Two-level Page Table¶

32-bit logical address space and 4KB page size

if each entry is 4 bytes ➔ 1k entries per one page
We need 1M entries, so we need 1M / 1k = 1k pages
This 1k pages can be stored in one page (1k * 4 = 4KB)

If page table entry change to 64bits

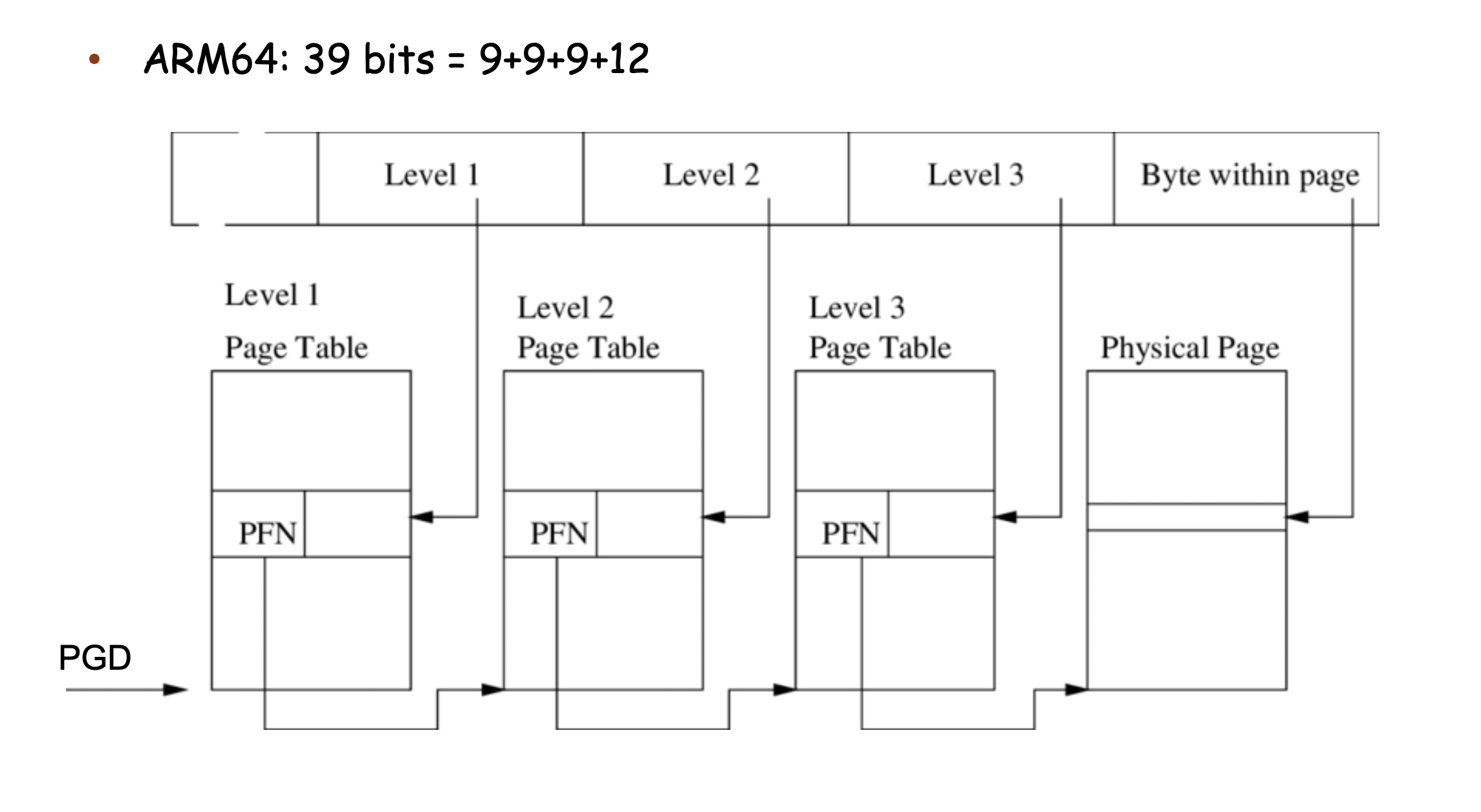

64-bit logical address space and 4KB page size
12 bits for offset, 52 bits for page number --12
Each page table entry is 8 bytes, so 512 entries per page -- 9
9+ 9+ 9+12 = 39 bits

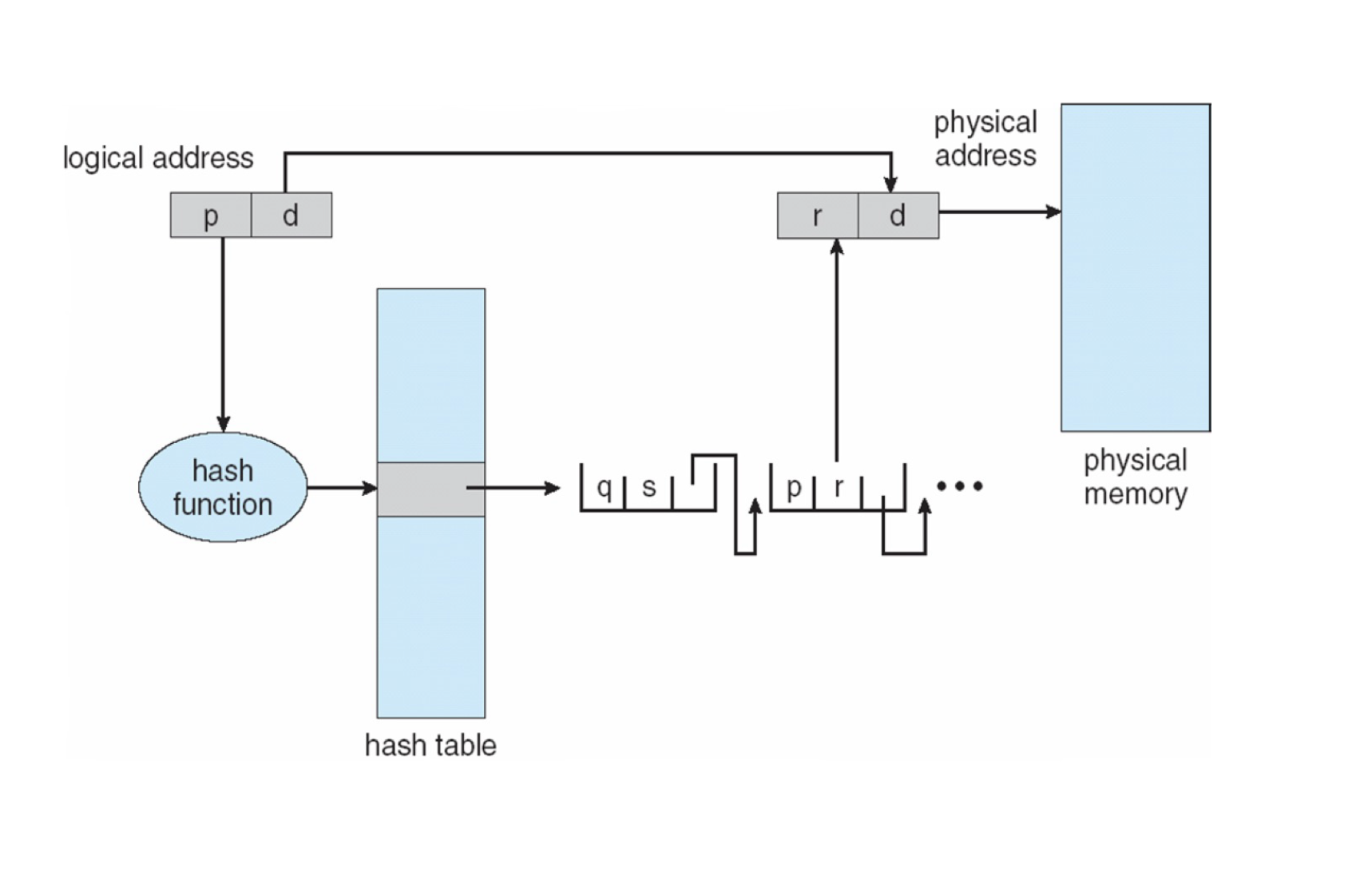

Hashed Page Tables¶

Complicated & Hash slow
Conflict list too long -- performance overhead

Benefits

Large address space and sparse access

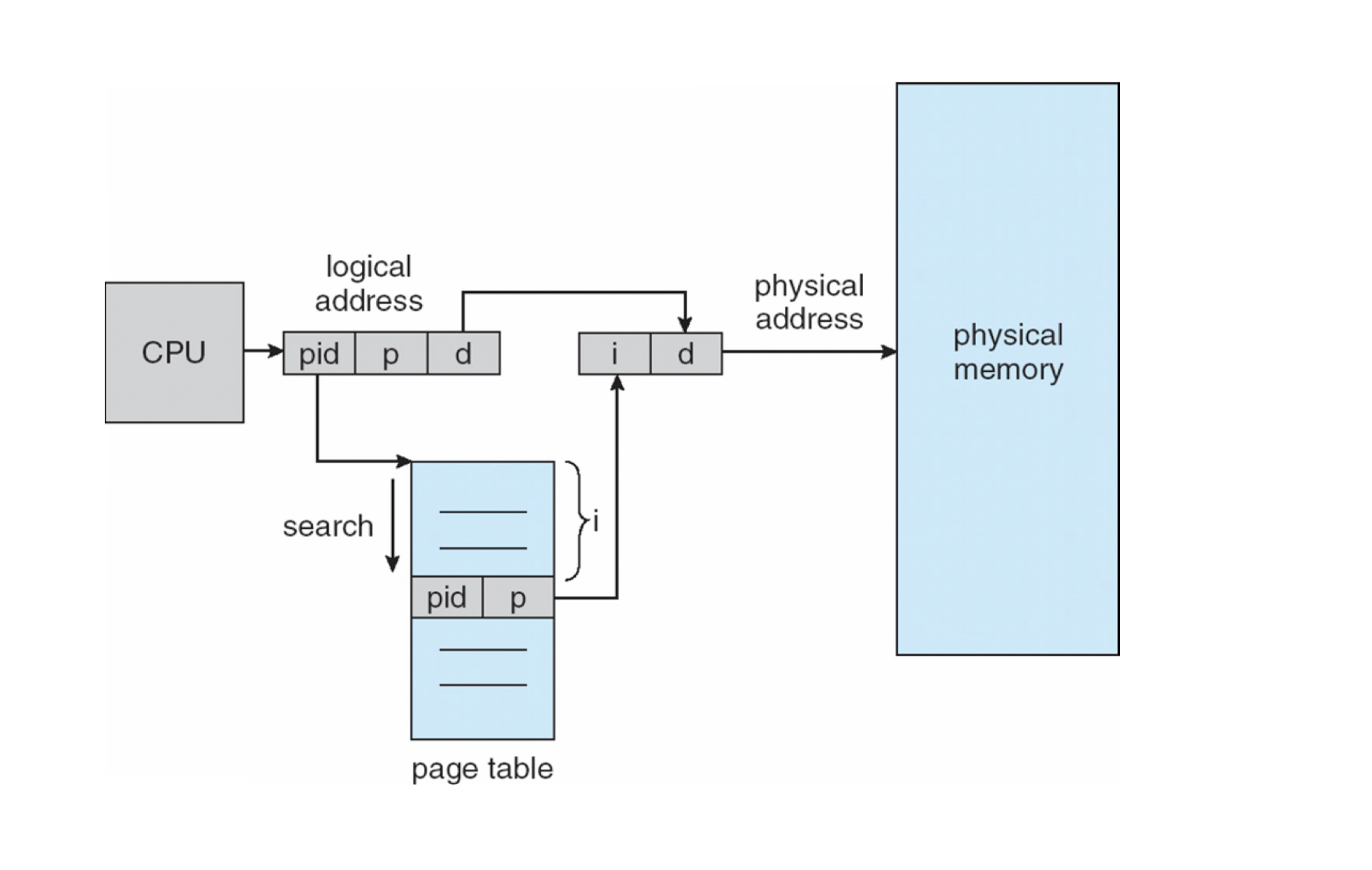

Inverted Page Table¶

Inverted page table tracks allocation of physical frame to a process

One entry for each physical frame ➔ fixed amount of memory for page table
Each entry has the process id and the page# (virtual address)

每次要遍历整个页表，效率低下

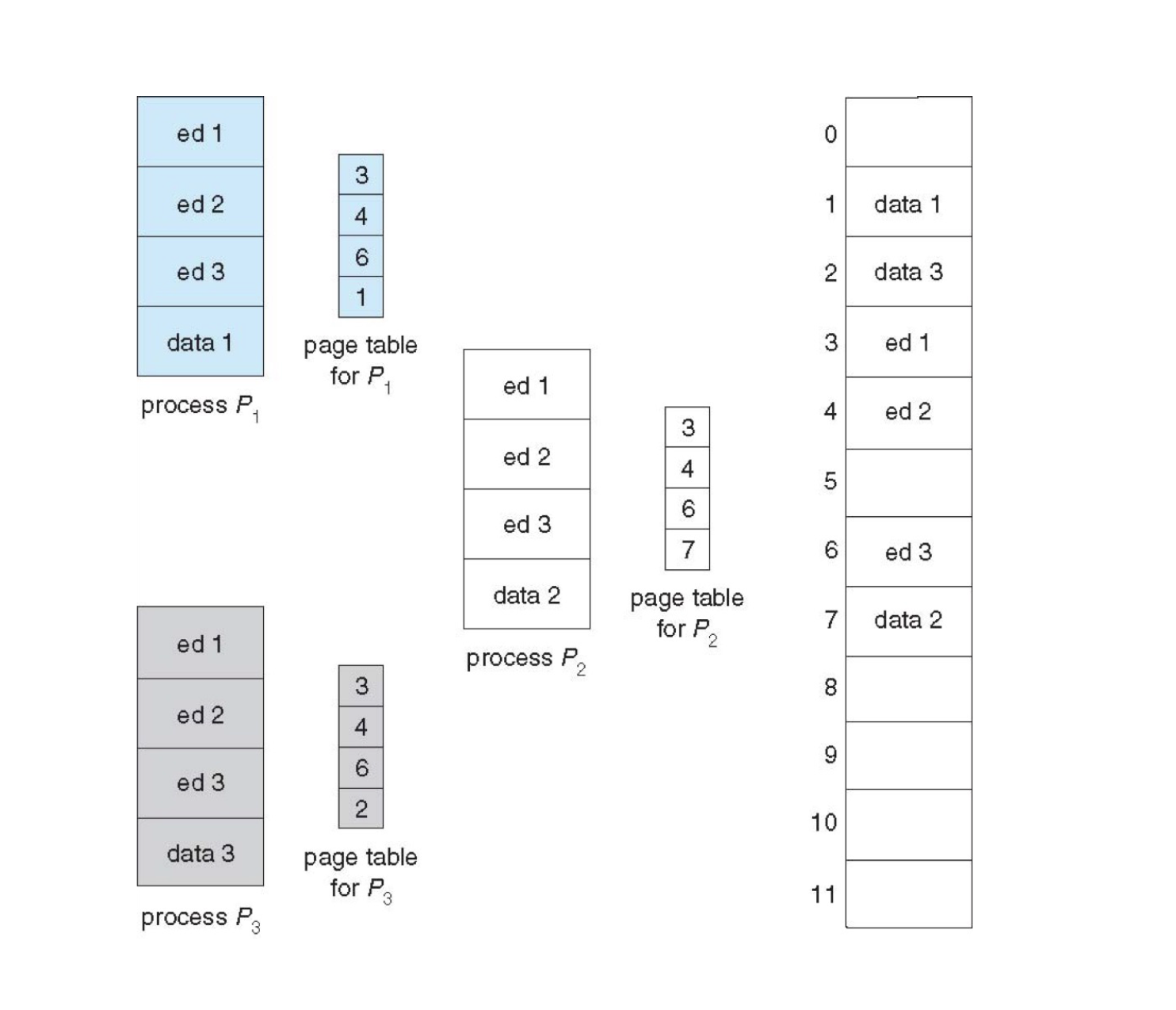

这样不能共享内存（因为一个物理帧只能映射到一个页）

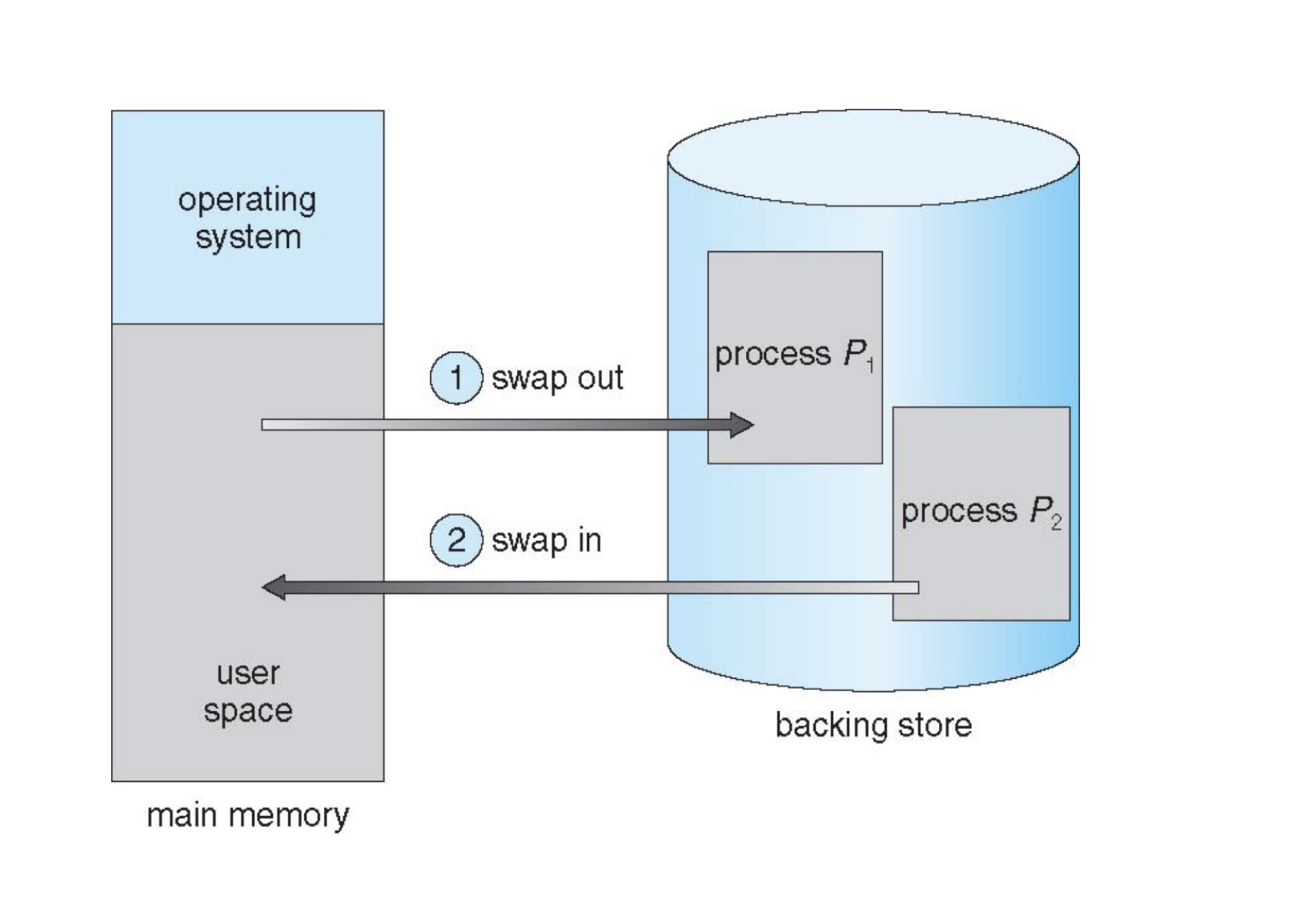

Swapping¶

Swapping extends physical memory with backing disks

A process can be swapped temporarily out of memory to a backing store

Backing store is usually a (fast) disk

The process will be brought back into memory for continued execution

Does the process need to be swapped back in to same physical address?

Swapping is usually only initiated under memory pressure

Context switch time can become very high due to swapping

If the next process to be run is not in memory, need to swap it in
Disk I/O has high latency

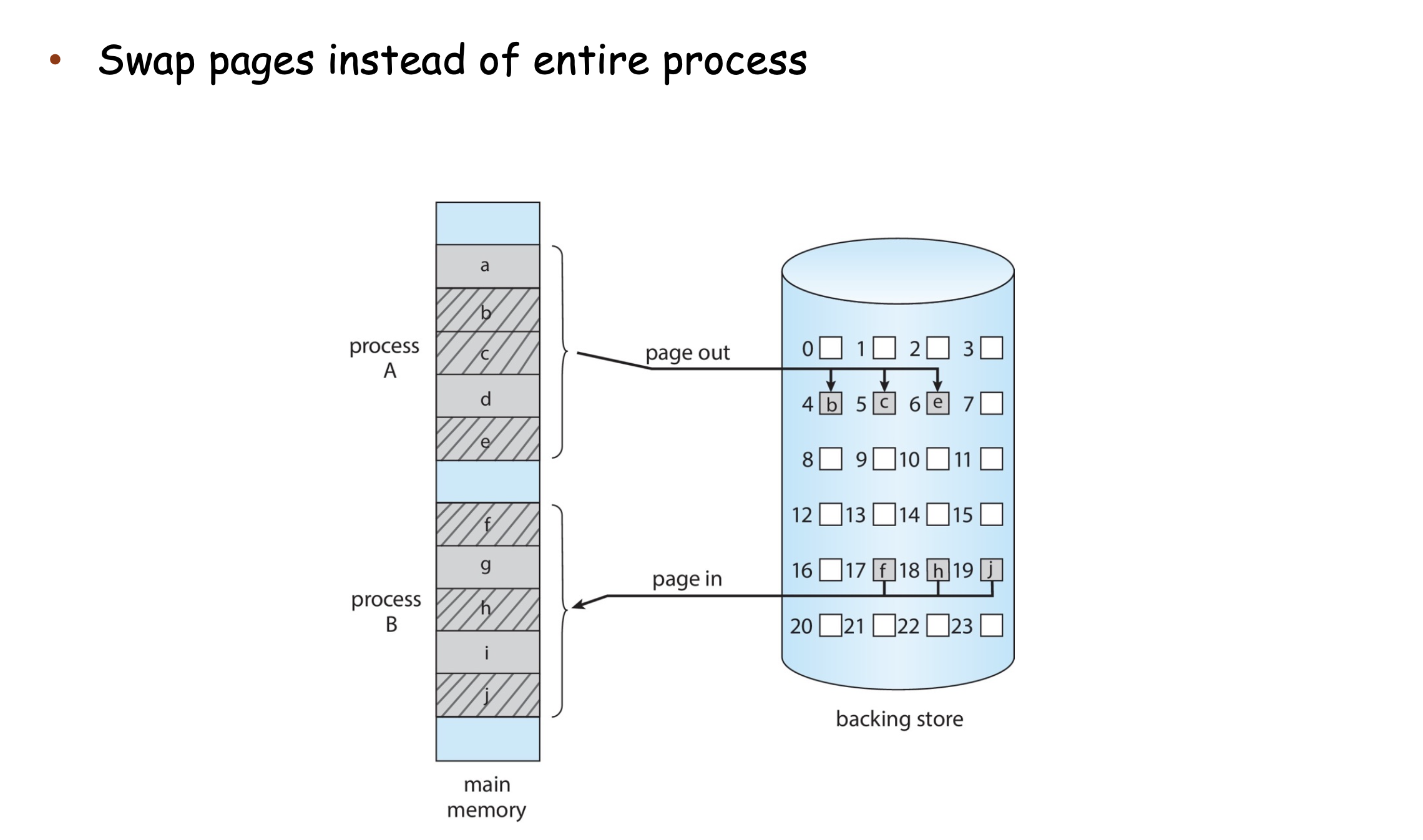

Swap with paging

Real time Implementation¶

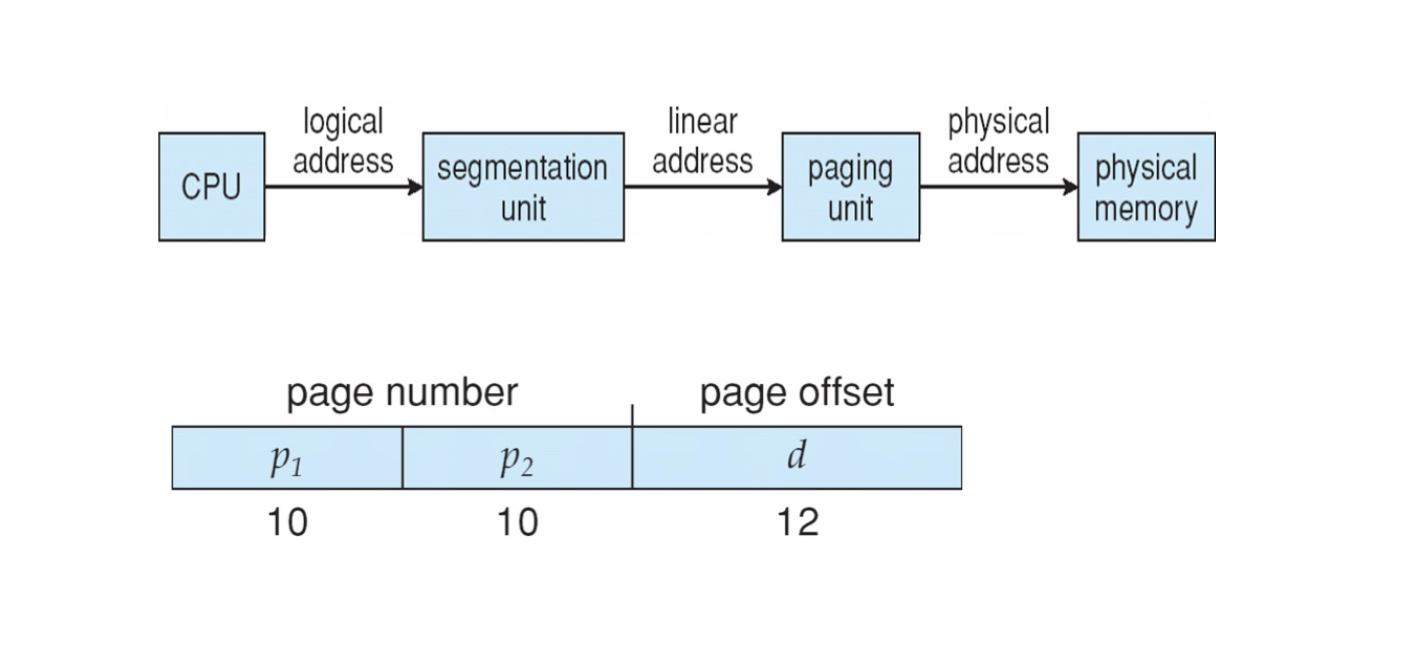

IA-32¶

Segmentation + Paging

Other See Slides

Quiz¶

In 32-bit architecture, for 1-level page table, how large is the whole page table?

4MB = 1M[page table entry count] \(\times\) 4B[each entry size]

In 32-bit architecture, for 2-level page table, how large is the whole page table?

1) How large for the 1^st level PGT? 4KB = 1K[page table entry count] \(\times\) 4B[each entry size]

2) How large for the 2^nd level PGT? 4MB = 1K[page table entry count per page] \(\times\) 4KB[page size]
Why can 2-level PGT save memory?

We can have invalid entries in the 2^nd level PGT, so we can save memory

For 39-bit VA, 4KB page size

1) How large for the 1^st level PGT? 4KB = 512[page table entry count] \(\times\) 8B[each entry size]

2) How large for the 2st level PGT? 2MB = 512[page table entry count] \(\times\) 4KB[page size]

3) How large for the 3st level PGT? 1GB = 512[page table entry count] \(\times\) 512[page table entry count] \(\times\) 4KB[page size]
How about page size is 64KB

a. What is the virtual address format for 32-bit?

1) 16-bit offset

2) 64KB/4B = 16K -- 14-bit 2st page number

3) 32 -16 -14 = 2-bit 1st level page number

b. What is the virtual address format for 64-bit?

1) 16-bit offset

2) 64KB/8B = 8K -- 13-bit page number

39-bit VA 48-bit VA

                PHY_START                                                                PHY_END
                     new allocated memory            allocated space end
                   │         │                                │                                                 │
                   ▼         ▼                                ▼                                                 ▼
       ┌───────────┬─────────┬────────────────────────────────┬─────────────────────────────────────────────────┐
 PA    │           │         │ uapp (copied from _sramdisk)   │                                                 │
       └───────────┴─────────┴────────────────────────────────┴─────────────────────────────────────────────────┘
                             ▲                                ▲
       ┌─────────────────────┘                                │
       │            (map)                                     │
       │                        ┌─────────────────────────────┘
       │                        │
       │                        │
       ├────────────────────────┼───────────────────────────────────────────────────────────────────┬────────────┐
 VA    │           UAPP         │                                                                   │u mode stack│
       └────────────────────────┴───────────────────────────────────────────────────────────────────┴────────────┘
       ▲                                                                                                         ▲
       │                                                                                                         │

   USER_START                                                                                                USER_END
