Lecture 4 - CPU Scheduling¶

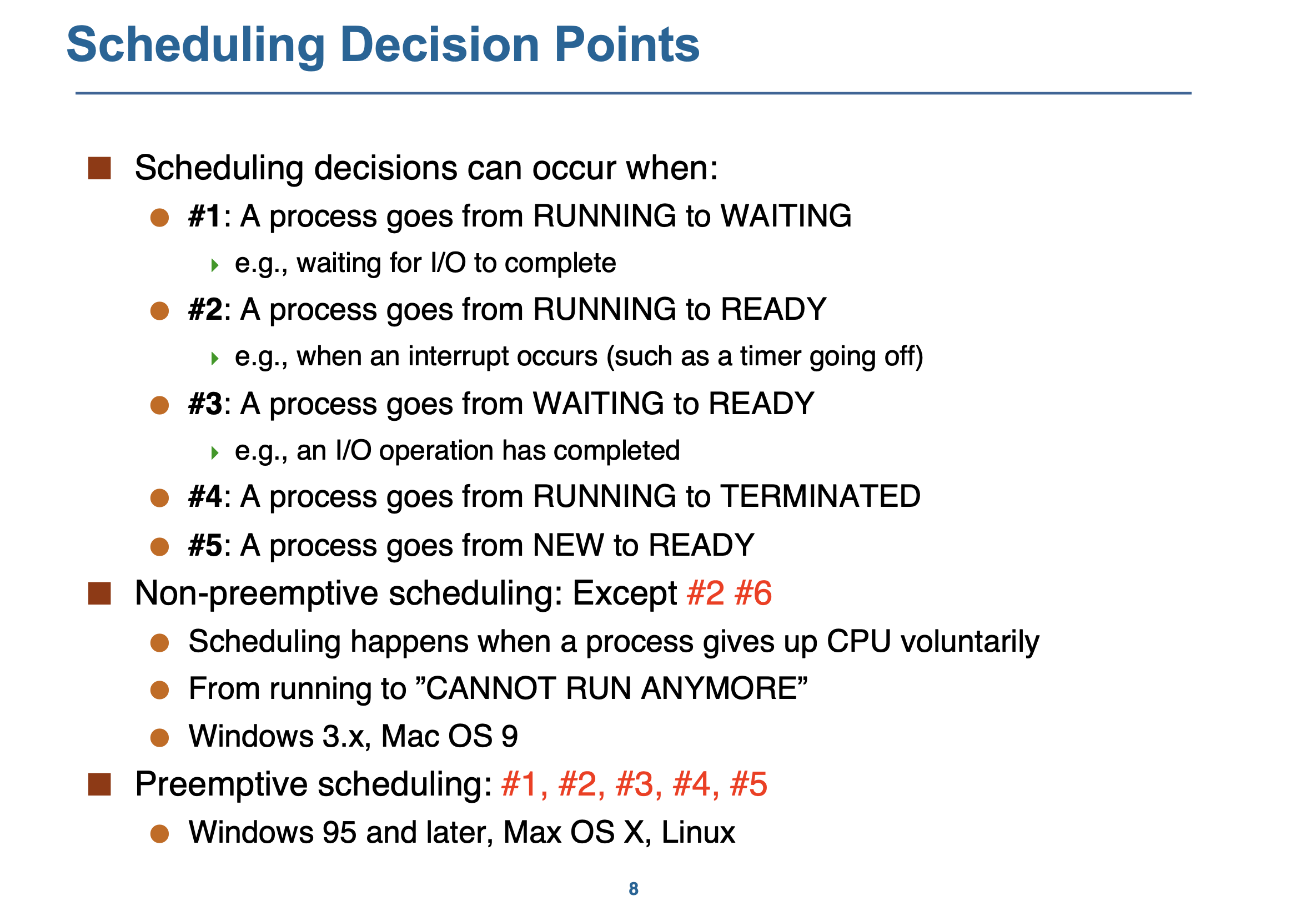

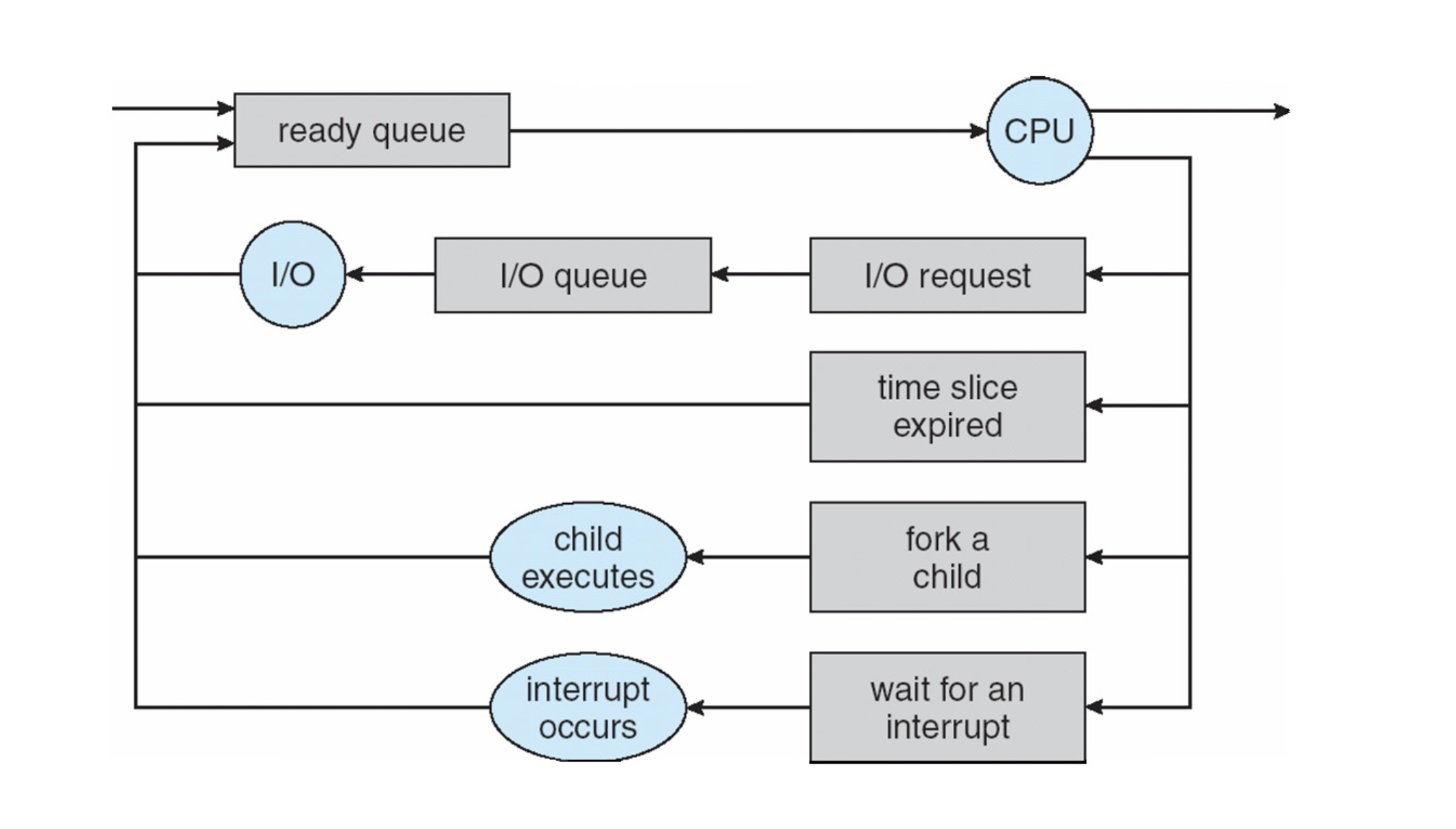

Non-preemptive scheduling vs. preemptive scheduling
Non-preemptive scheduling: once a process starts running, it will continue to run until it completes or blocks itself.
Preemptive scheduling: the OS can interrupt a process and move it to the ready queue.

Preemptive scheduling is good

No need to have processes willingly give up the CPU
The OS remains in control

Preemptive scheduling is complex

Opens up many thorny issues having to do with process synchronization
Consider access to shared data
Consider preemption while in kernel mode
Consider interrupts occurring during crucial OS activities

Scheduling Objectives¶

Maximize CPU Utilization: Fraction of time the CPU isn't idle
Maximize Throughput: Amount of “useful work” done per time unit
Minimize Turnaround Time: Time from process creation to process completion
Minimize Waiting Time: Amount of time a process spends in the READY state
Minimize Response Time: Time from process creation until the “first response” is received

Dispatcher¶

Dispatcher: module that gives control of the CPU to the process selected by the short-term scheduler
switching to kernel mode
Switching context
Switching to user mode
Jumping to the proper location in the user program to restart that program
Dispatch latency: time it takes for the dispatcher to stop one process and start another running

Scheduling Algorithms¶

Gantt Chart¶

Gantt chart: a timeline that shows when each process is running
Useful for visualizing the performance of a scheduling algorithm

First-Come, First-Served (FCFS)¶

Simplest scheduling algorithm
Non-preemptive
Processes are scheduled in the order they arrive
Convoy effect: short processes stuck behind long processes

Shortest-Job-First (SJF)¶

Associate with each process the length of its next CPU burst
Use these lengths to schedule the process with the shortest time

Two schemes:

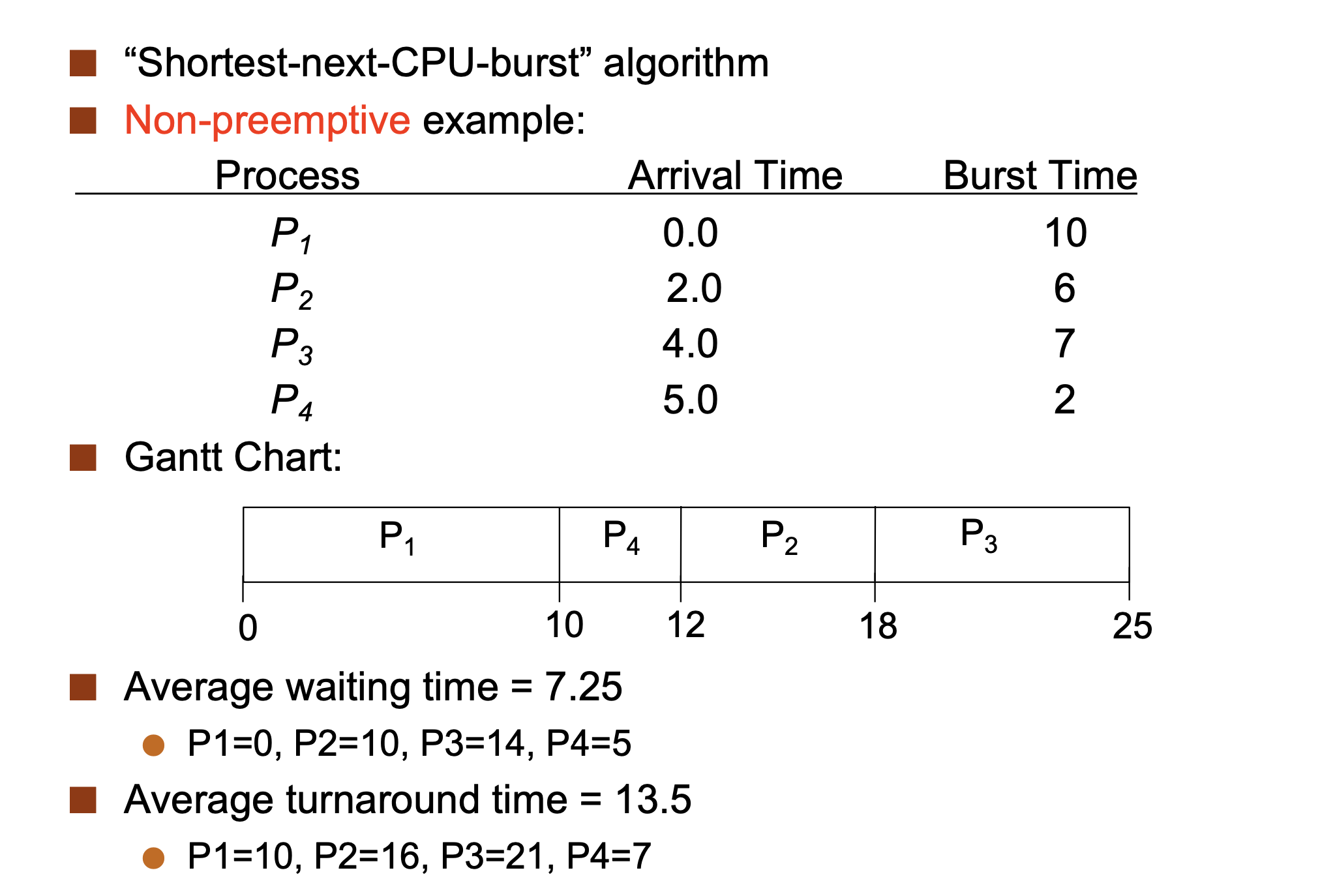

Non-preemptive: once a process starts running, it will continue to run until it completes or blocks itself

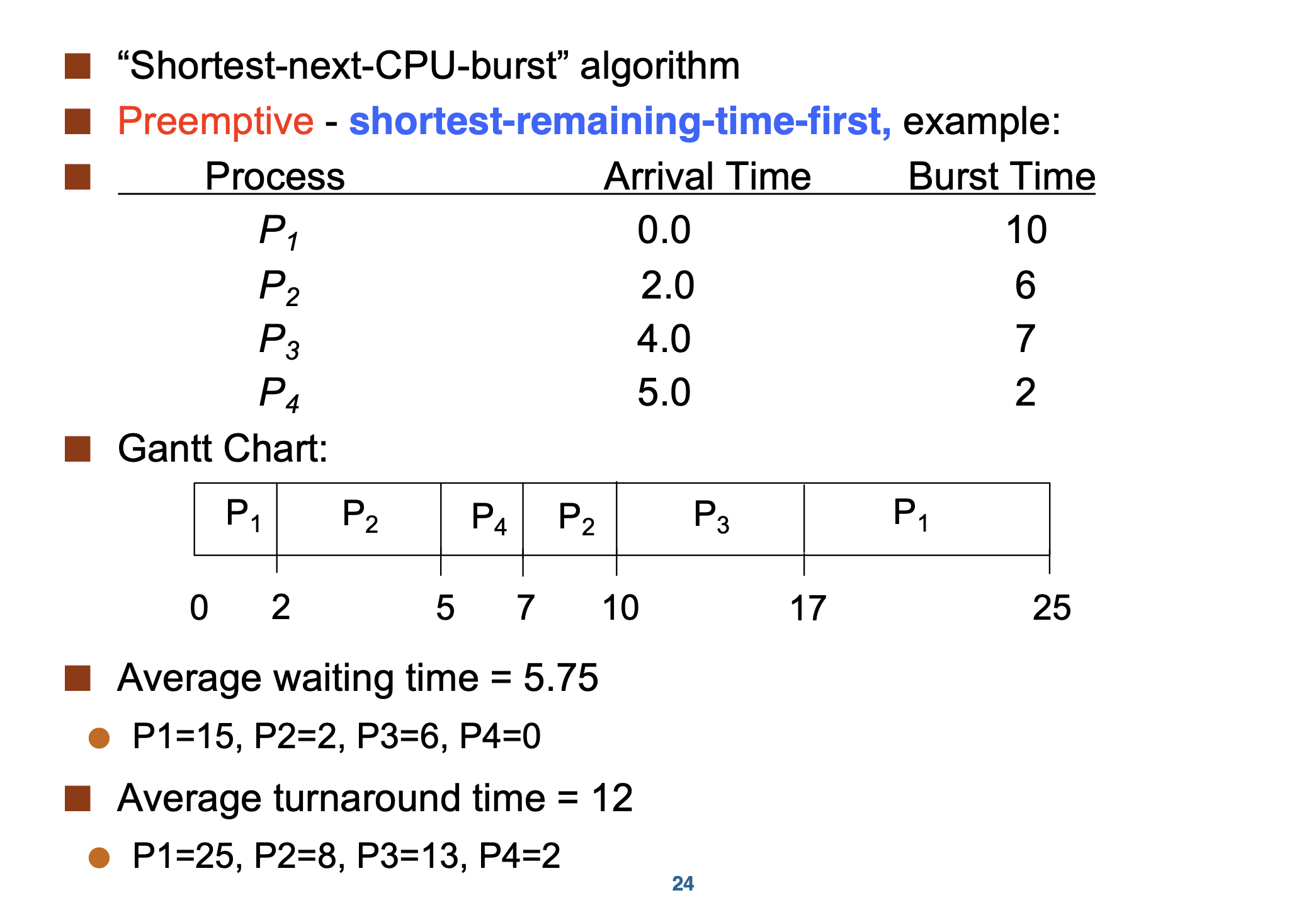

Preemptive: the OS can interrupt a process and move it to the ready queue

A known result is: SJF is provably optimal for average wait time

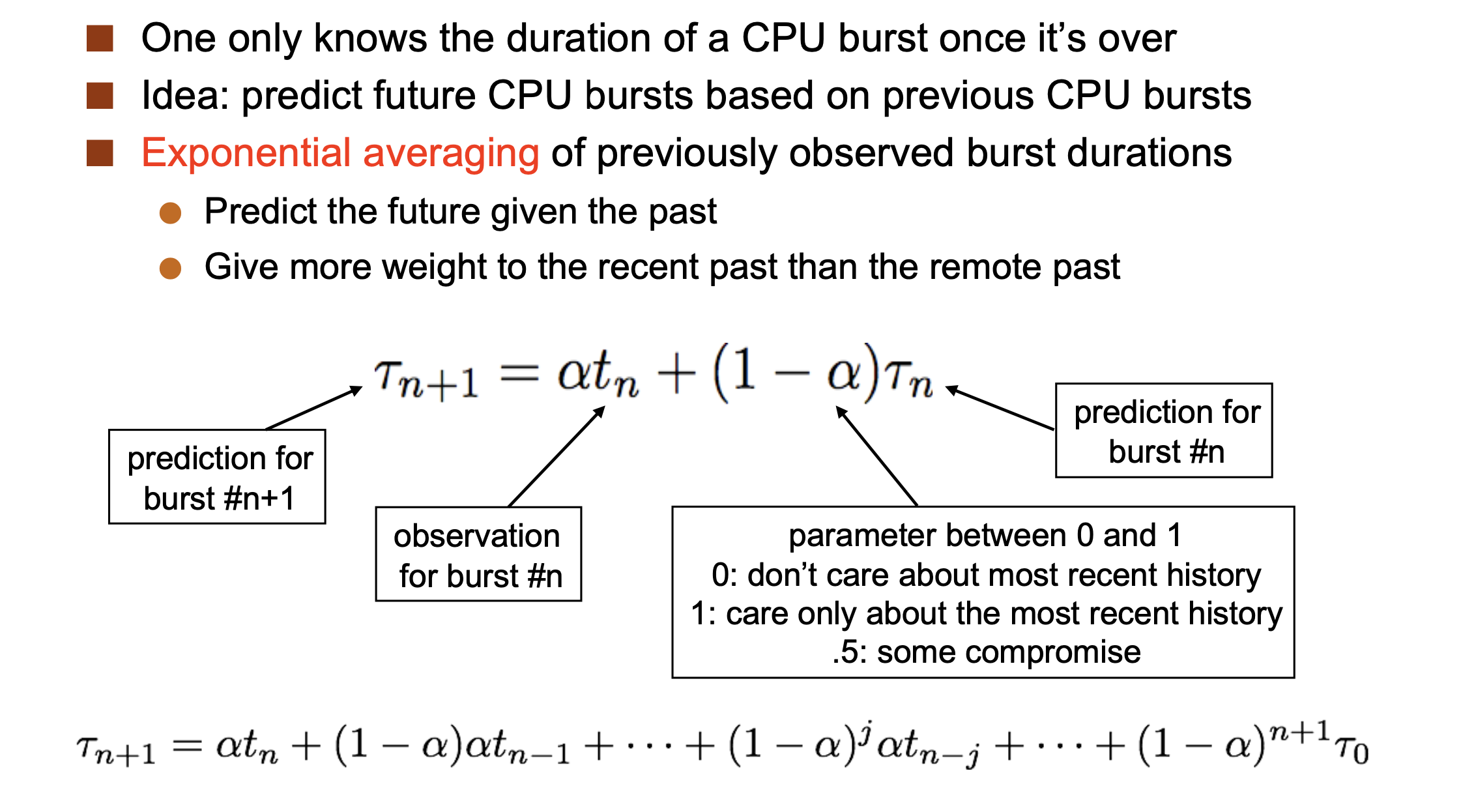

[Big Problem]: How can we know the burst durations???

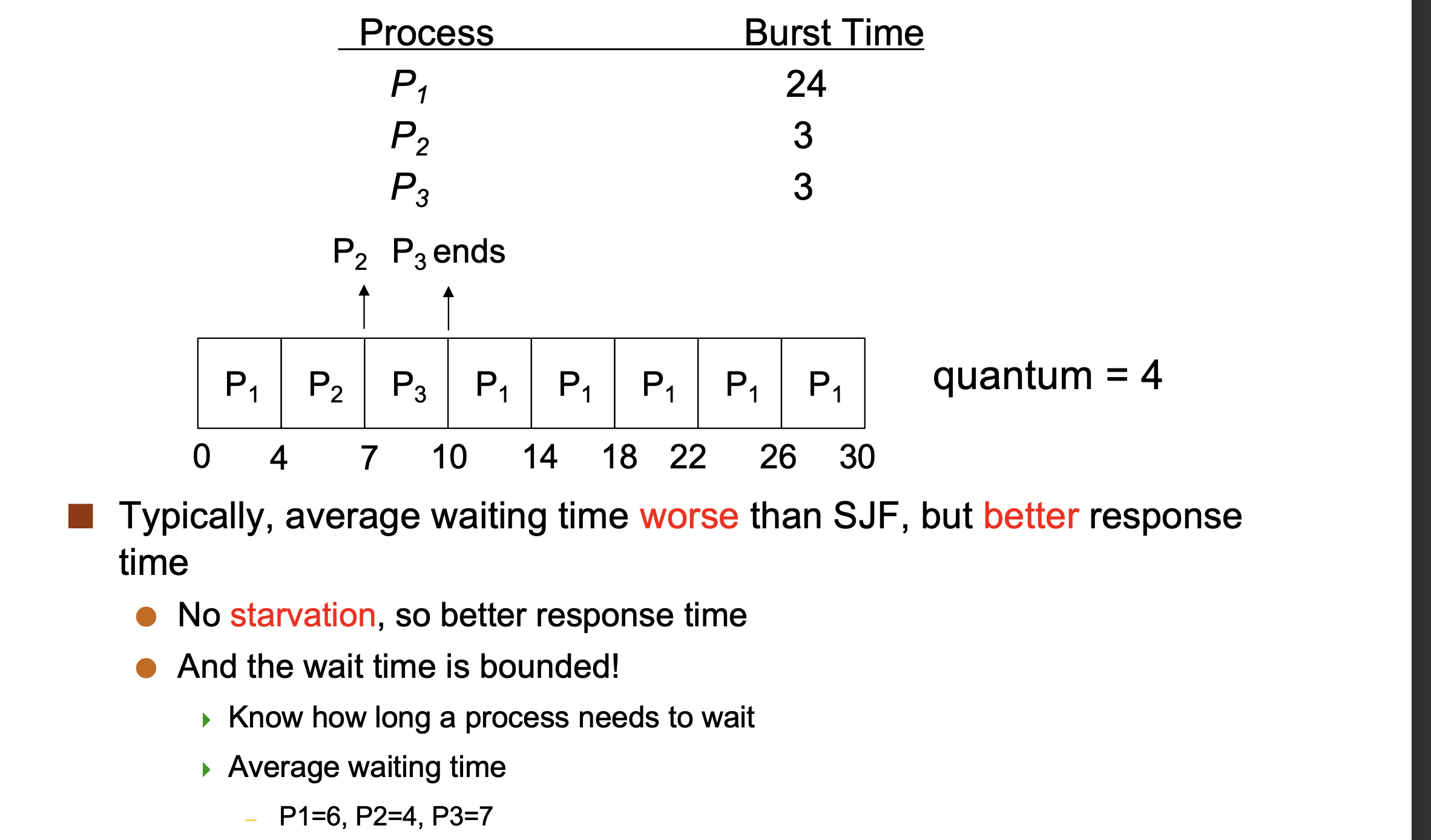

Round Robin (RR)¶

Each process gets a small unit of CPU time (time quantum)
If a process doesn't complete within its time quantum, it is moved to the end of the ready queue
Ready Queue is a FIFO queue

Time quantum is a key parameter
If time quantum is too large, RR degenerates to FCFS
If time quantum is too small, overhead of context switching becomes significant

In practice, %CPU time spent on switching is very low * time quantum: 10ms to 100ms * context-switching time: 10μs

Priority Scheduling¶

Each process is assigned a priority
The process with the highest priority is selected to run

Priority Scheduling w/ Round-Robin¶

Each process is assigned a priority
The process with the highest priority is selected to run
If two processes have the same priority, they are scheduled in a round-robin fashion

Problem: Starvation¶

Low-priority processes may never execute
Solution: Aging
As time progresses, increase the priority of the process

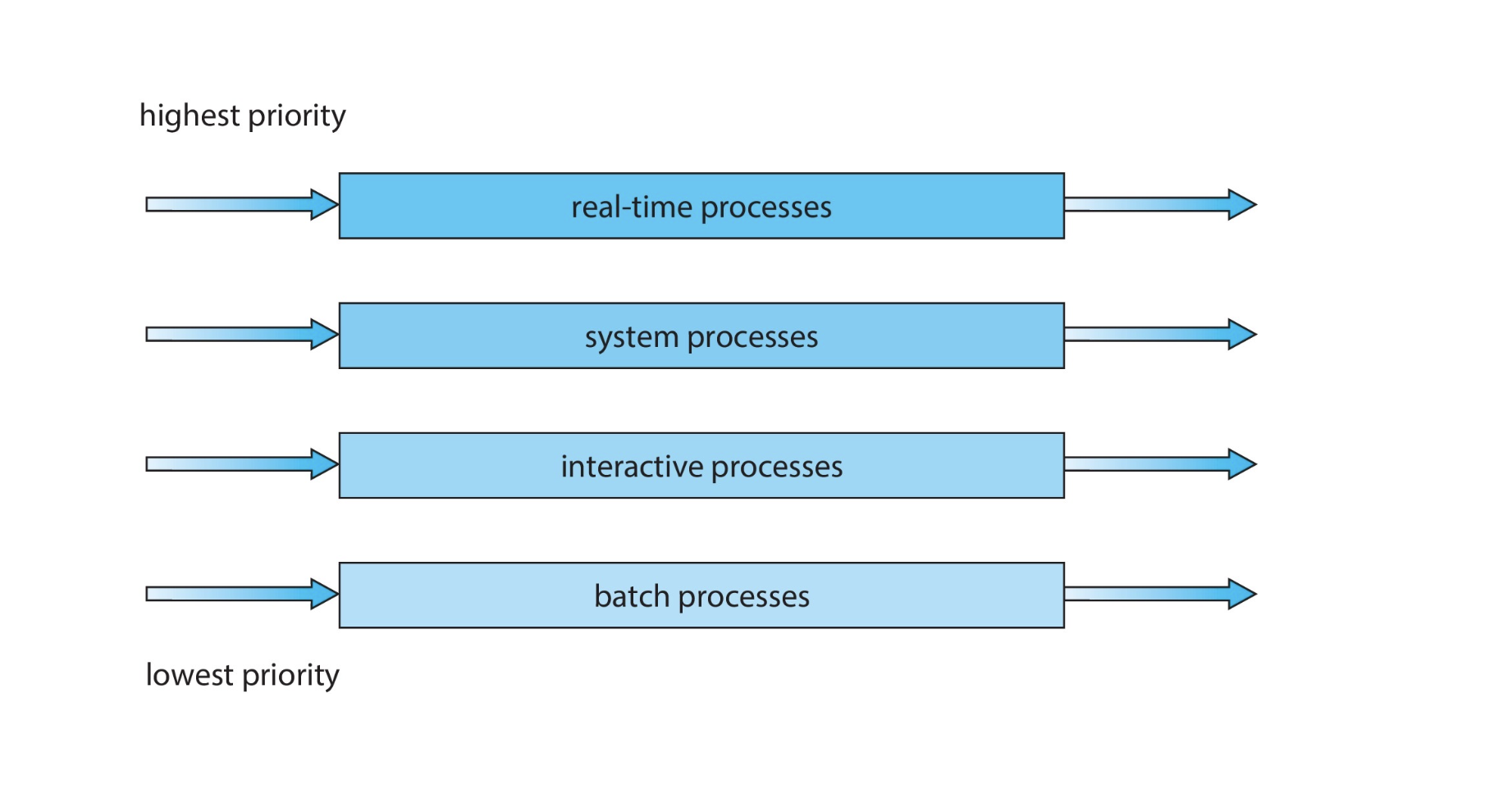

Multilevel Queue Scheduling¶

Simple idea: use one ready queue per class of processes

Scheduling within queues

Each queue has its own scheduling policy
e.g., High-priority could be RR, Low-priority could be FCFS

Scheduling between the queues

Typically preemptive priority scheduling
A process can run only if all higher-priority queues are empty
Or time-slicing among queues
e.g., 80% to Queue #1 and 20% to Queue #2

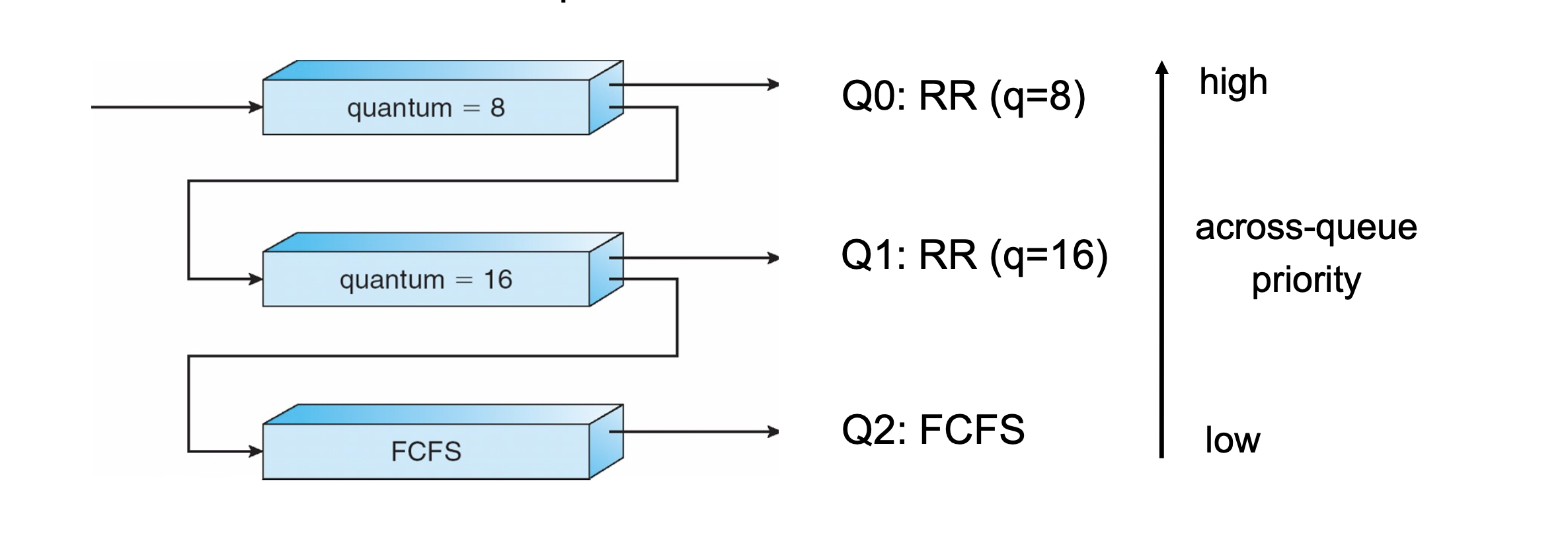

Multilevel Feedback Queue Scheduling¶

Example

A new process arrives and is placed in the highest-priority queue Q0 with RR quatum = 8

If it doesn’t use it all, it’s likely a I/O-bound process and should be kept in the high-priority queue so that it is assured to get the CPU on the rare occasions that it needs it
If it does use it all, then it gets demoted to Q1 and, at some points, is given a quantum of 16
If it does use it all, then it’s likely a CPU-bound process and it gets demoted to Q2
At that point the process runs only when no non-CPU-intensive process needs the CPU

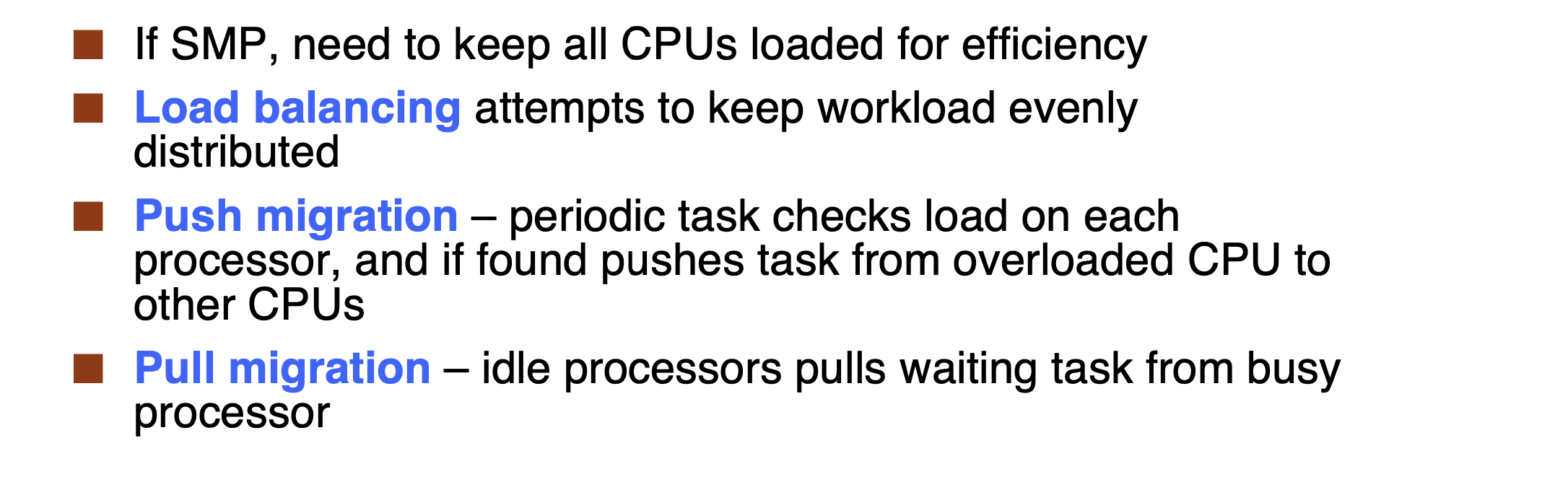

Multiple-Processor Scheduling¶

Soft affinity – the operating system attempts to keep a thread running on the same processor, but no guarantees.
Hard affinity – allows a process to specify a set of processors it may run on.

Operating System Examples¶

Windows¶

Priority-based, time quantum-based, multi-queue, preemptive scheduling
32-level priority scheme: high number, high priority
When a thread “wakes up”, its priority is boosted

It’s likely an IO-bound thread

The idle thread:

Win XP maintains a “bogus” idle thread
“runs” (and does nothing) if nobody else can run
Simplifies OS design to avoid the “no process is running” case

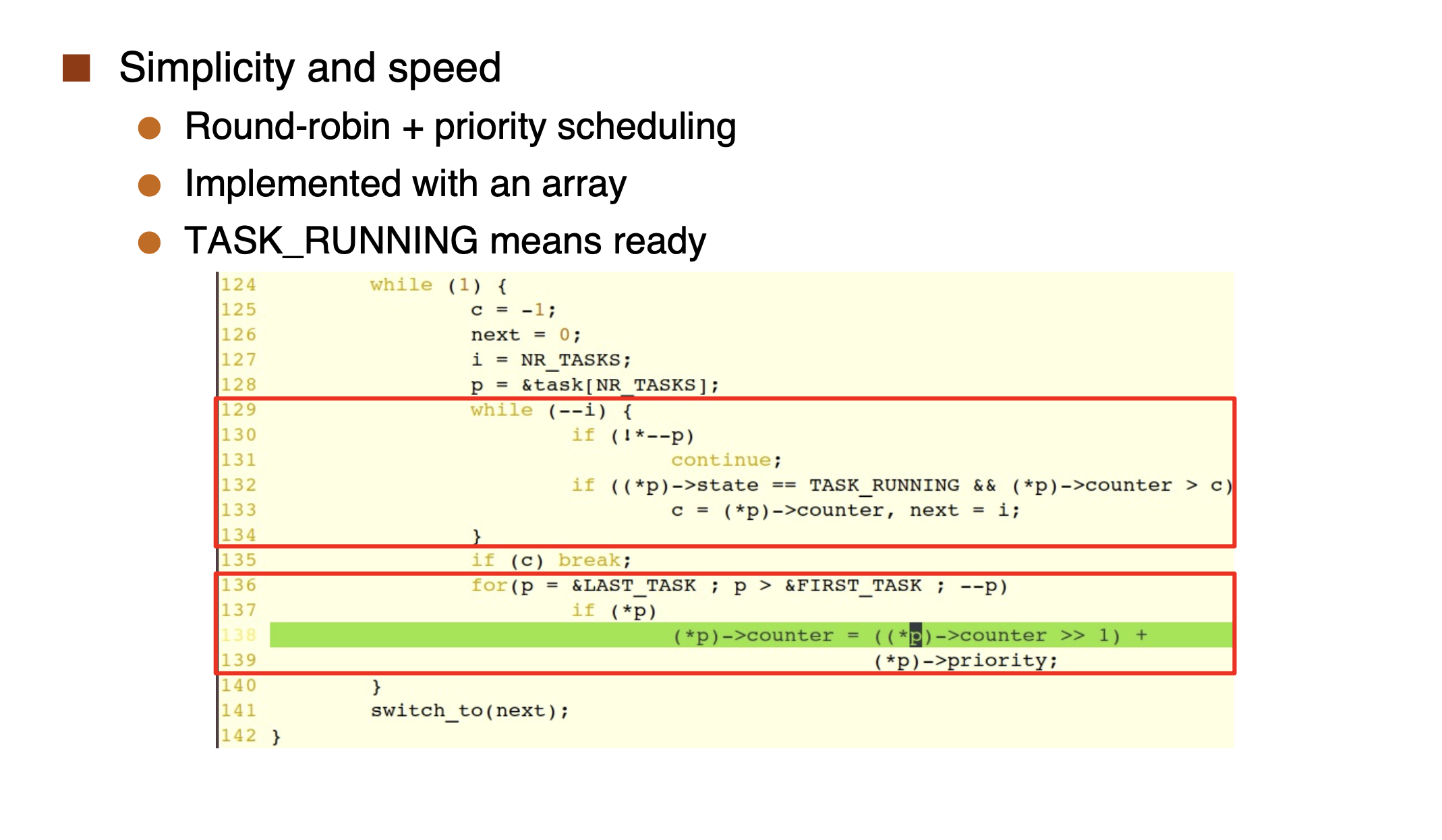

Linux¶

Lower priority number, higher priority

Drawbacks of Linux Scheduling 0.11

\(O(n)\) scheduling algorithm
Responsiveness is not guaranteed.

See Slides for more details [05 scheduling.pdf]
